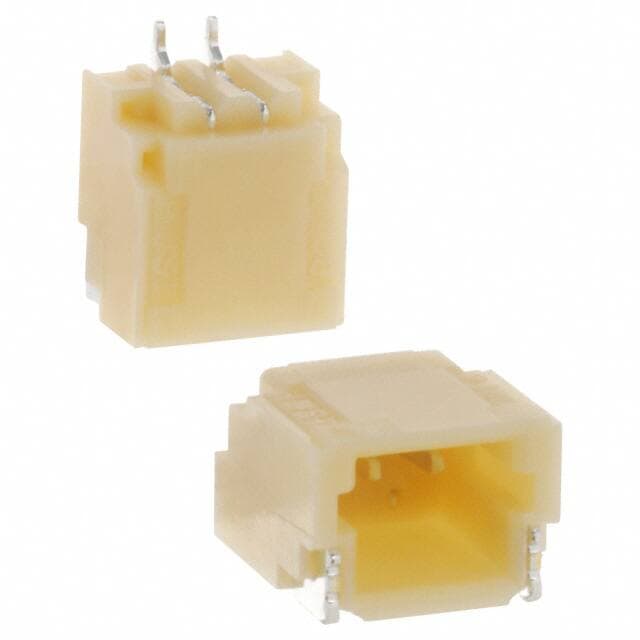

JST SM02B-SRSS-TB(LF)(SN)

Manufacturer No:

SM02B-SRSS-TB(LF)(SN)

Manufacturer:

Package:

Description:

SR Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 2-Position Board to Cable/Wire 0.114 2.90mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM02B-SRSS-TB(LF)(SN) information

JST SM02B-SRSS-TB(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST SM02B-SRSS-TB(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Copper Alloy

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Contact Shape
Square

Insulation Material
Polyamide (PA), Nylon

Material
Polyamide

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
SR

Published
2010

JESD-609 Code
e2

Feature
Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
2

Number of Rows
1

Additional Feature
SIDE ENTRY

HTS Code
8536.69.40.40

Fastening Type
Push-Pull

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
2

Orientation
Right Angle

Depth
4.95mm

Insulation Height
0.114 2.90mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
1A

Pitch - Mating
0.039 1.00mm

Insulation Color
Natural

Voltage - Rated AC
50V

Shrouding
Shrouded - 4 Wall

Lead Pitch
1mm

UL Flammability Code
94V-0

Housing Color
Beige

Contact Resistance
40mOhm

Insulation Resistance
100MOhm

Download datasheets and manufacturer documentation for JST SM02B-SRSS-TB(LF)(SN).

Datasheets:

sparkfunelectronics-prt14417-datasheets-6623.pdf

SM02B-SRSS-TB(LF)(SN) Overview

Packaging for this item is Header.There is a mounting type of Surface Mount, Right Angle for this device.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the SR Series.Moreover, there are a number of other features, including SIDE ENTRY, to name just a few.In many ways, its Solder Retention feature makes it more powerful.Surface Mount is used to mount the part.In this case, the device operates at -25°C~85°C Operating Temperature.
