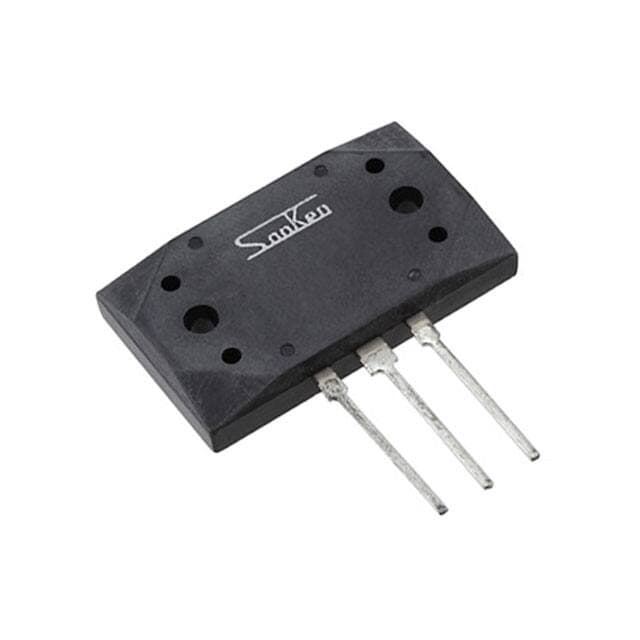

SANKEN 2SC3264
SANKEN 2SC3264

SANKEN 2SC3264

Manufacturer No:

2SC3264

Manufacturer:

SANKEN

Package:

3-ESIP

Description:

NPN 150°C TJ 100?A ICBO 1 Elements 3 Terminations SILICON NPN 3-ESIP Bulk Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2SC3264 information

SANKEN 2SC3264 technical specifications, attributes, parameters and parts with similar specifications to SANKEN 2SC3264.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • 3-ESIP
  • Surface Mount
  • NO
  • Number of Pins
  • 3
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Bulk
  • Published
  • 1999
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Subcategory
  • Other Transistors
  • Terminal Position
  • SINGLE
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Pin Count
  • 3
  • Qualification Status
  • Not Qualified
  • Number of Elements
  • 1
  • Configuration
  • SINGLE
  • Power - Max
  • 200W
  • Transistor Application
  • AMPLIFIER
  • Transistor Type
  • NPN
  • DC Current Gain (hFE) (Min) @ Ic, Vce
  • 50 @ 5A 4V
  • Current - Collector Cutoff (Max)
  • 100?A ICBO
  • Vce Saturation (Max) @ Ib, Ic
  • 2V @ 500mA, 5A
  • Voltage - Collector Emitter Breakdown (Max)
  • 230V
  • Current - Collector (Ic) (Max)
  • 17A
  • Transition Frequency
  • 60MHz
  • Frequency - Transition
  • 60MHz
  • Power Dissipation-Max (Abs)
  • 200W
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for SANKEN 2SC3264.

Datasheets:

2SC3264 Overview


As dc = Ic/Ib, DC current gain is the ratio of base current to collector current, and DC current gain for this device is 50 @ 5A 4V.When VCE saturation is 2V @ 500mA, 5A, transistor means Ic has reached transistors maximum value (saturated).In the part, the transition frequency is 60MHz.The device has a 230V maximal voltage - Collector Emitter Breakdown.
