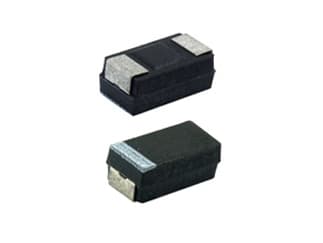

VISHAY 293D226X9025C2TE3
VISHAY 293D226X9025C2TE3

VISHAY 293D226X9025C2TE3

Manufacturer No:

293D226X9025C2TE3

Manufacturer:

VISHAY

Package:

6032-28

Description:

22?F 10% 125°C-Max -55°C-Min 1.2Ohm Polar Tantalum Cut Tape 6032-28

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

293D226X9025C2TE3 information

VISHAY 293D226X9025C2TE3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY 293D226X9025C2TE3.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Package / Case
  • 6032-28
  • Dielectric Material
  • Tantalum
  • Weight
  • 149.997327mg
  • Packaging
  • Cut Tape
  • Published
  • 2013
  • Tolerance
  • 10%
  • Termination
  • SMD/SMT
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Voltage - Rated
  • 25V
  • Capacitance
  • 22?F
  • Voltage - Rated DC
  • 25V
  • Depth
  • 3.2mm
  • Case Code (Metric)
  • 6032
  • Case Code (Imperial)
  • 2312
  • ESR (Equivalent Series Resistance)
  • 1.2Ohm
  • Polarity
  • Polar
  • Ripple Current
  • 300mA
  • Dissipation Factor
  • 6 %
  • Current - Leakage
  • 5.5?A
  • Height
  • 2.5mm
  • Length
  • 6mm
  • Width
  • 2.5mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for VISHAY 293D226X9025C2TE3.

Datasheets:

RohsStatement:

293D226X9025C2TE3 Overview


Capacitor ripple current is set to 300mA.A series resistance (ESR), also known as internal resistance, measures the loss of useful energy in a simple electronic circuit with a resistor and an ideal (perfect) capacitor, and its resistance is 1.2Ohm.In this capacitor's case, the dissipation factor 6 % represents the power loss caused by AC applied through it.

293D226X9025C2TE3 Features


300mA is the ripple current of the capacitor
the dissipation factor is 6 %


293D226X9025C2TE3 Applications


There are a lot of Vishay
293D226X9025C2TE3 applications of tantalum capacitors.


  • Computer
  • General purpose
  • General low power DC/DC and LDO
  • Automotive ECU
  • ABS
  • Airbag systems
  • Avionics,
  • Industrial control units
  • Military / aerospace
  • General purpose
