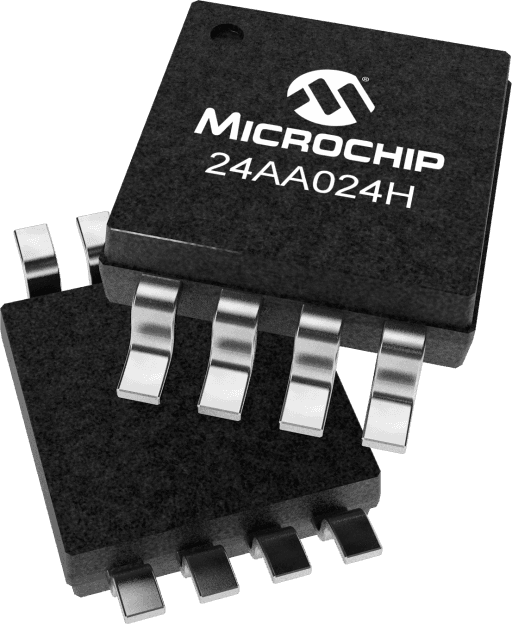

Microchip 24AA024HT-I/MNY

Manufacturer No:

24AA024HT-I/MNY

Manufacturer:

Microchip

Package:

8-WFDFN Exposed Pad

Description:

The 24AA024H is a 2Kb Serial EEPROM with half array write protection

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

24AA024HT-I/MNY information

Microchip 24AA024HT-I/MNY technical specifications, attributes, parameters and parts with similar specifications to Microchip 24AA024HT-I/MNY.

Type
Parameter

Density
2 Kbit

Endurance
1,000,000

Max. Clock Freq.
400 kHz

Operating Voltage Max (V)
5.5

Operating Voltage Min (V)
1.7

Page Size (Bytes)
16

Write Protect Scheme
Upper Half

Data Retention
200

Download datasheets and manufacturer documentation for Microchip 24AA024HT-I/MNY.

The Microchip Technology Inc. 24AA024H/24LC024H is a 2Kb Serial EEPROM with operation down to 1.7V. The device is organized as a single block of 256 x 8-bit memory with a 2-wire serial interface. Low-current design permits operation with maximum standby and active currents of only 1 µA and 400 µA, respectively. The device has a page write capability for up to 16 bytes of data. Functional address lines allow the connection of up to eight 24AA024H/ 24LC024H devices on the same bus for up to 16 Kbits of contiguous EEPROM memory. The device is available in the standard 8-pin PDIP, 8-pin SOIC (150 mil), TSSOP, 2x3 TDFN and MSOP packages.

Single supply with operation down to 1.7V
Half-array write protect
Low-power CMOS technology
2-wire serial interface, I2C™ compatible
Schmitt Trigger inputs for noise suppression
Output slope control to eliminate ground bounce
100 kHz and 400 kHz Compatibility
More than 1 million erase/write cycles
Data retention >200 years
Factory programmable available

User Guide
