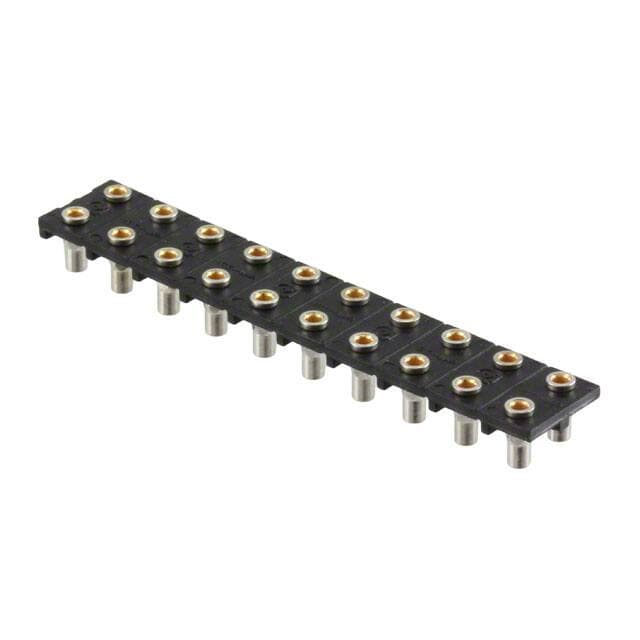

Aries Electronics 20-F40-10
Aries Electronics 20-F40-10

Aries Electronics 20-F40-10

Manufacturer No:

20-F40-10

Manufacturer:

Aries Electronics

Package:

Description:

2 Rows Receptacle, Breakaway Solder Brass Alloy Through Hole Tube Tin Polyamide (PA46), Nylon 4/6, Glass Filled Female Socket

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

20-F40-10 information

Aries Electronics 20-F40-10 technical specifications, attributes, parameters and parts with similar specifications to Aries Electronics 20-F40-10.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Contact Material
  • Brass Alloy
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Contact Shape
  • Circular
  • Insulation Material
  • Polyamide (PA46), Nylon 4/6, Glass Filled
  • Housing Material
  • NYLON46
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tube
  • Series
  • F40
  • Published
  • 2004
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Receptacle, Breakaway
  • Number of Rows
  • 2
  • Additional Feature
  • STANDARD: UL 94V-0
  • Contact Finish - Mating
  • Tin
  • Contact Type
  • Female Socket
  • Current Rating (Amps)
  • 8A
  • Number of Positions Loaded
  • All
  • Pitch - Mating
  • 0.200 5.08mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.200 (5.08mm)
  • Contact Length - Post
  • 0.129 3.28mm
  • Lead Pitch
  • 2.54mm
  • Number of Contacts
  • 20
  • Device Socket Type
  • IC SOCKET
  • Height
  • 2.36mm
  • Length
  • 50.8mm
  • Width
  • 8.89mm
  • Contact Finish Thickness - Mating
  • 200.0?in 5.08?m
  • Contact Finish Thickness - Post
  • 200.0?in 5.08?m
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Aries Electronics 20-F40-10.

Datasheets:

Environmental Information:

20-F40-10 Overview


The product comes in a package of Receptacle, Breakaway.Through Hole is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the F40 Series.Among other features are STANDARD: UL 94V-0, to name only a few.It is mounted by Through Hole.It operates at an operating temperature of -55°C~105°C.

20-F40-10 Features


F40 series


20-F40-10 Applications


There are a lot of Aries Electronics
20-F40-10 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
