Renesas EL5161IC-T7

Manufacturer No:

EL5161IC-T7

Manufacturer:

Renesas

Package:

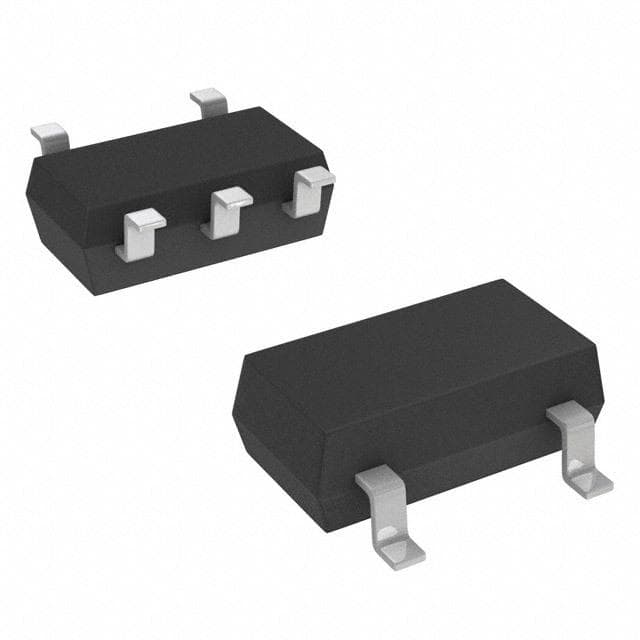

SOT-23-5

Description:

1 Channels 140mA per Channel 5μA 50 dB Instrumentational OP Amps 9V 5 Pins SOT-23-5

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EL5161IC-T7 information

Renesas EL5161IC-T7 technical specifications, attributes, parameters and parts with similar specifications to Renesas EL5161IC-T7.

Type
Parameter

Mount
Surface Mount

Package / Case
SOT-23-5

Packaging
Tape & Reel (TR)

Published
2003

JESD-609 Code
e0

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
5

JESD-30 Code
R-PDSO-G5

Qualification Status
Not Qualified

Operating Supply Voltage
9V

Temperature Grade
INDUSTRIAL

Operating Supply Current
750μA

Nominal Supply Current
850μA

Slew Rate
1700 V/μs

Common Mode Rejection Ratio
50 dB

Current - Input Bias
5μA

Output Current per Channel
140mA

Input Offset Voltage (Vos)
1.6mV

Bandwidth
200000 kHz

Gain Bandwidth Product
200MHz

Max Dual Supply Voltage
5V

-3db Bandwidth
200MHz

Min Dual Supply Voltage
2.5V

Consumer IC Type
VIDEO AMPLIFIER

Length
2mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas EL5161IC-T7.

EL5161IC-T7 Overview

Op amp is packaged in SOT-23-5 case. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 5. Linear amplifier has a total of 5 pins. Regarding input offset voltage, buffer amplifier rates 1.6mV voltage. Operational amplifier can operate supply current at 750μA. Instrumentation amplifier has 1 channels on it. It should not lower than -40°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 85°C. The operating supply voltage of instrumentation amplifier is rated 9V voltage. Conduct linear amplifier under the dual suuply voltage of 5V. Electronic ic chip's consumer IC type can be sorted with VIDEO AMPLIFIER.

EL5161IC-T7 Features

5 Pins

EL5161IC-T7 Applications

There are a lot of Intersil (Renesas Electronics America)
EL5161IC-T7 Instrumentational OP Amps applications.

Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
