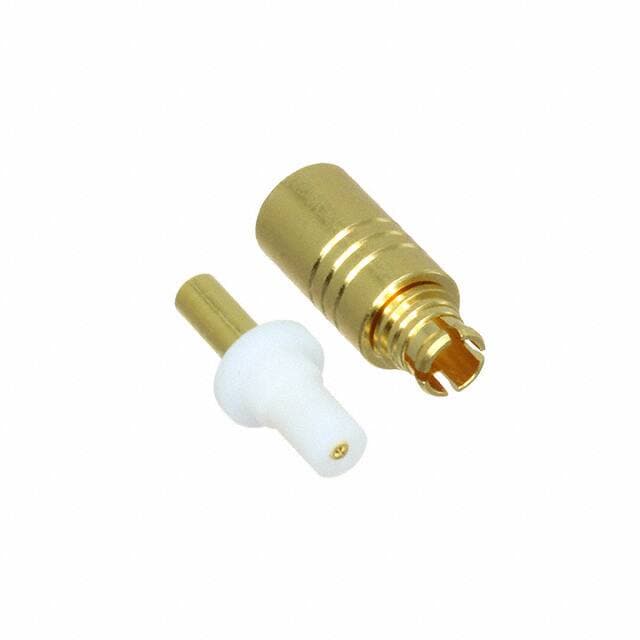

Rosenberger 19K101-272L5
Manufacturer No:
19K101-272L5
Manufacturer:
Package:
ROHS COMPLIANT
Description:
Description: RF SMP Connector, 1 Contact(s), Female, Cable Mount, Solder Terminal, Jack, ROHS COMPLIANT
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
19K101-272L5 information
Rosenberger 19K101-272L5 technical specifications, attributes, parameters and parts with similar specifications to Rosenberger 19K101-272L5.
- Type
- Parameter
- RoHS Status
- RoHS Compliant
- Part Life Cycle Code
- Active
- Ihs Manufacturer
- ROSENBERGER HOCHFREQUENZTECHNIK GMBH & CO KG
- Package Description
- ROHS COMPLIANT
- Reach Compliance Code
- compliant
- Samacsys Manufacturer
- Rosenberger
- Additional Feature
- STANDARD: MIL-STD-202; CAPTIVE CENTER CONTACT
- Body Depth
- 0.472 inch
- Body Diameter
- 0.197 inch
- Body/Shell Style
- JACK
- Cable Types
- RG-402/U
- Characteristic Impedance
- 50 Ω
- Connector Type
- RF SMP CONNECTOR
- Contact Finish Mating
- NOT APPLICABLE
- Contact Finish Termination
- Gold (Au)
- Contact Gender
- FEMALE
- Contact Material
- NOT APPLICABLE
- Contact Resistance
- 6 mΩ
- Contact Style
- COAX
- Coupling Type
- SNAP
- DIN Conformance
- NO
- Dielectric Withstanding Voltage
- 1050VAC V
- Durability
- 1000 Cycles
- Filter Feature
- NO
- Insertion Loss
- 0.21 dB
- Insulation Resistance
- 5000000000 Ω
- Insulator Material
- LIQUID CRYSTAL POLYMER/POLYETHERETHERKETONE/POLYTETRAFLUORO ETHYLENE
- JESD-609 Code
- e4
- MIL Conformance
- YES
- Mounting Option 1
- LOCKING
- Mounting Style
- STRAIGHT
- Mounting Type
- CABLE
- Number of Ports
- 1
- Operating Frequency-Max
- 26.5 GHz
- Operating Temperature-Max
- 155 °C
- Operating Temperature-Min
- -65 °C
- Option
- GENERAL PURPOSE
- Panel Mount
- NO
- Rated Current (Signal)
- 1.2 A
- Termination Type
- SOLDER
- Total Number of Contacts
- 1
- VSWR
- 1.22
Download datasheets and manufacturer documentation for Rosenberger 19K101-272L5.
Datasheets:
19K101-272L5 Overview
Packaging for this item is Jack, Female Socket.Free Hanging (In-Line) is the type of mounting for the device.Among other features are STANDARD: MIL-STD-202; CAPTIVE CENTER CONTACT, to name only a few.The device has 1 ports for managing a variety of tasks.It operates at an operating temperature of -65°C~155°C.
19K101-272L5 Features
19K101-272L5 Applications
There are a lot of Rosenberger
19K101-272L5 Coaxial Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
