NorComp Inc. 172-009-242-001
NorComp Inc. 172-009-242-001

NorComp Inc. 172-009-242-001

Manufacturer No:

172-009-242-001

Manufacturer:

NorComp Inc.

Package:

Description:

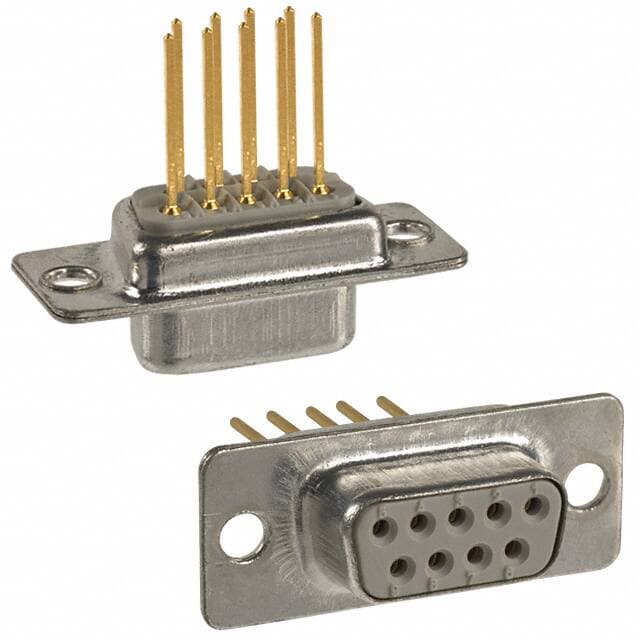

172 Series D-Sub Receptacle, Female Sockets 9-Position Female Signal Wire Wrap 1 DE E Panel Mount, Through Hole Bronze Gold Steel, Tin Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

172-009-242-001 information

NorComp Inc. 172-009-242-001 technical specifications, attributes, parameters and parts with similar specifications to NorComp Inc. 172-009-242-001.

  • Type
  • Parameter
  • Contact Material
  • Bronze
  • Contact Plating
  • Gold
  • Mount
  • Through Hole
  • Mounting Type
  • Panel Mount, Through Hole
  • Dielectric Material
  • Polybutylene Terephthalate (PBT)
  • Housing Material
  • PBT
  • Shell Material, Finish
  • Steel, Tin Plated
  • Operating Temperature
  • -50°C~100°C
  • Series
  • 172
  • Published
  • 2003
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Termination
  • Wire Wrap
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 9
  • Max Operating Temperature
  • 100°C
  • Min Operating Temperature
  • -50°C
  • Color
  • Beige
  • Number of Rows
  • 2
  • Gender
  • Female
  • Contact Type
  • Signal
  • Current Rating (Amps)
  • 5A
  • Current Rating
  • 5A
  • Contact Finish
  • Gold
  • Flange Feature
  • Housing/Shell (Unthreaded)
  • Connector Style
  • D-Sub
  • Contact Form
  • Machined
  • Shell Size, Connector Layout
  • 1 DE E
  • Height
  • 10.1mm
  • Length
  • 30.8mm
  • Width
  • 12.6mm
  • Contact Finish Thickness
  • Flash
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Flammability Rating
  • UL94 V-0
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for NorComp Inc. 172-009-242-001.

Datasheets:

172-009-242-001 Overview


This product is packaged in a Receptacle, Female Sockets cartonPanel Mount, Through Hole is the mounting type of the device.This is from the 172 Series.The ideal temperature for using it is below 100°C.There must be a minimum temperature of -50°C.This part is mounted by Through Hole. -50°C~100°C Operating Temperature is the default.

172-009-242-001 Features


172 series


172-009-242-001 Applications


There are a lot of NorComp Inc.
172-009-242-001 D-Sub Connectors applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
