NorComp Inc. 171-025-203L001
Manufacturer No:
171-025-203L001
Manufacturer:
Package:
Description:

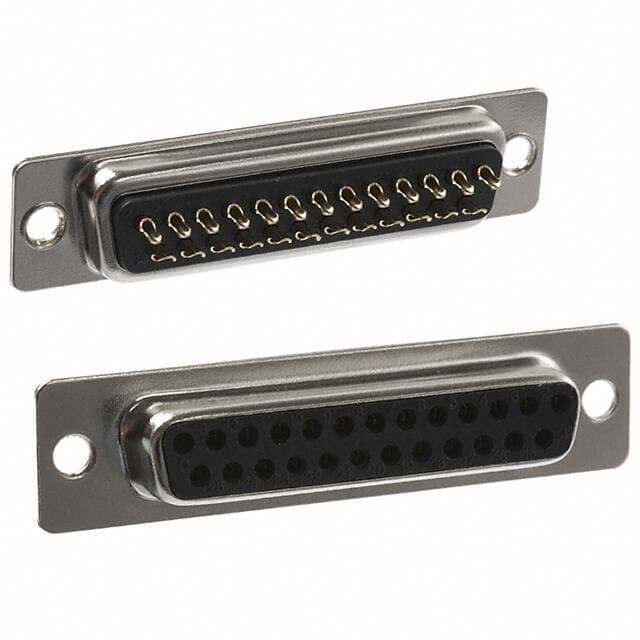

171 Series D-Sub Receptacle, Female Sockets 25-Position Receptacle Signal Solder Cup 3 DB B Panel Mount Bronze Gold Steel, Nickel Plated
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
171-025-203L001 information
NorComp Inc. 171-025-203L001 technical specifications, attributes, parameters and parts with similar specifications to NorComp Inc. 171-025-203L001.
- Type
- Parameter
- Factory Lead Time
- 14 Weeks
- Contact Material
- Bronze
- Contact Plating
- Gold
- Mount
- Free Hanging
- Mounting Type
- Panel Mount
- Material
- Metal
- Dielectric Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Housing Material
- PBT
- Body Material
- Steel
- Shell Material, Finish
- Steel, Nickel Plated
- Operating Temperature
- -50°C~100°C
- Packaging
- Tray
- Series
- 171
- Published
- 2008
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- Termination
- Solder Cup
- Connector Type
- Receptacle, Female Sockets
- Number of Positions
- 25
- Max Operating Temperature
- 100°C
- Min Operating Temperature
- -50°C
- Color
- Black
- Number of Rows
- 2
- Gender
- Receptacle
- Current Rating (Amps)
- 5A
- Current Rating
- 5A
- Contact Finish
- Gold
- Number of Contacts
- 25
- Housing Color
- Black
- Wire Gauge
- 20-28 AWG
- Flange Feature
- Housing/Shell (Unthreaded)
- Plating
- Nickel
- Connector Style
- D-Sub
- Contact Form
- Stamped
- Shell Size, Connector Layout
- 3 DB B
- Height
- 9.56mm
- Length
- 53mm
- Width
- 12.6mm
- Contact Finish Thickness
- Flash
- Material Flammability Rating
- UL94 V-0
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
- Flammability Rating
- UL94 V-0
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for NorComp Inc. 171-025-203L001.
171-025-203L001 Overview
The packaging is Receptacle, Female Sockets.Mounting type Panel Mount is selected for the device.Packaged in a Tray case.A member of the 171 Series.Using it at a temperature below 100°C is ideal.A minimum temperature of -50°C is needed for this device.There's a Free Hanging mount on the part.Device runs in -50°C~100°C operating temperature.
171-025-203L001 Features
171 series
171-025-203L001 Applications
There are a lot of NorComp Inc.
171-025-203L001 D-Sub Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
