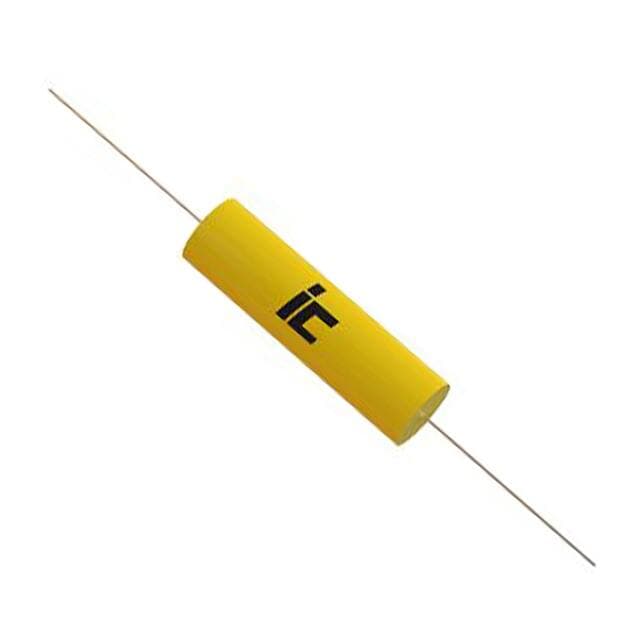

Illinois Capacitor 157BPA025M
Illinois Capacitor 157BPA025M

Illinois Capacitor 157BPA025M

Manufacturer No:

157BPA025M

Manufacturer:

Illinois Capacitor

Package:

Axial, Can

Description:

BPA 150?F Capacitor ±20% Bulk Through Hole 320mA 0.394Diax0.748L 10.00mmx19.00mm -40°C~85°C Bi-Polar Axial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

157BPA025M information

Illinois Capacitor 157BPA025M technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 157BPA025M.

  • Type
  • Parameter
  • Factory Lead Time
  • 22 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Axial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • BPA
  • Published
  • 2016
  • Size / Dimension
  • 0.394Diax0.748L 10.00mmx19.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • Audio
  • Voltage - Rated
  • 25V
  • Capacitance
  • 150?F
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 2.211Ohm @ 120Hz
  • Rated (DC) Voltage (URdc)
  • 25V
  • Lifetime @ Temp
  • 2000 Hrs @ 85°C
  • Leakage Current
  • 0.1875mA
  • Ripple Current
  • 320mA
  • Polarization
  • Bi-Polar
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.2
  • Ripple Current @ Low Frequency
  • 320mA @ 120Hz
  • Diameter
  • 10mm
  • Length
  • 19mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Illinois Capacitor 157BPA025M.

Datasheets:

Environmental Information:

157BPA025M Overview


In order to fully utilize 2.211Ohm @ 120Hz, ESR (Equivalent Series Resistance) needs to be provided.In the lowest charge, the ripple current is 320mA @ 120Hz.It is recommended to set the rated (DC) voltage (URdc) to 25V.Maintaining -40°C~85°C as the operating temperature will maximize efficiency.

157BPA025M Features


the ripple current is 320mA @ 120Hz.
an operating temperature of -40°C~85°C


157BPA025M Applications


There are a lot of Illinois Capacitor
157BPA025M applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
