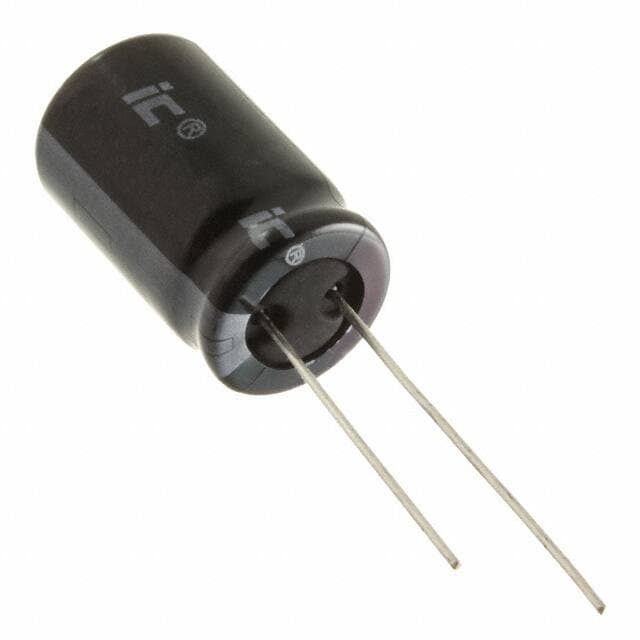

Illinois Capacitor 477CKH050M
Illinois Capacitor 477CKH050M

Illinois Capacitor 477CKH050M

Manufacturer No:

477CKH050M

Manufacturer:

Illinois Capacitor

Package:

Radial, Can

Description:

CKH 470?F Capacitor ±20% Bulk Through Hole 630mA 0.492Dia 12.50mm -40°C~105°C Polar 5.0038mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

477CKH050M information

Illinois Capacitor 477CKH050M technical specifications, attributes, parameters and parts with similar specifications to Illinois Capacitor 477CKH050M.

  • Type
  • Parameter
  • Factory Lead Time
  • 22 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • CKH
  • Published
  • 2010
  • Size / Dimension
  • 0.492Dia 12.50mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22
  • Capacitance
  • 470?F
  • Voltage - Rated DC
  • 50V
  • Lead Pitch
  • 5.0038mm
  • ESR (Equivalent Series Resistance)
  • 353mOhm @ 120Hz
  • Lead Spacing
  • 0.197 5.00mm
  • Voltage
  • 50V
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 0.705mA
  • Ripple Current
  • 630mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.1
  • Ripple Current @ Low Frequency
  • 630mA @ 120Hz
  • Ripple Current @ High Frequency
  • 1.0395A @ 100kHz
  • Diameter
  • 12.5mm
  • Height
  • 20mm
  • Height Seated (Max)
  • 0.846 21.50mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Illinois Capacitor 477CKH050M.

Datasheets:

Environmental Information:

477CKH050M Overview


Ripple current at full charge is 1.0395A @ 100kHz.For 353mOhm @ 120Hz to fully function, the equivalent series resistance has to be provided.It is 630mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.846 21.50mm.Voltage - Rated DC - is 50V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

477CKH050M Features


the ripple current is 1.0395A @ 100kHz.
the ripple current is 630mA @ 120Hz.
voltage - Rated DC of 50V
an operating temperature of -40°C~105°C


477CKH050M Applications


There are a lot of Illinois Capacitor
477CKH050M applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
