Manufacturer No:

15-002253

Manufacturer:

Conec

Package:

Description:

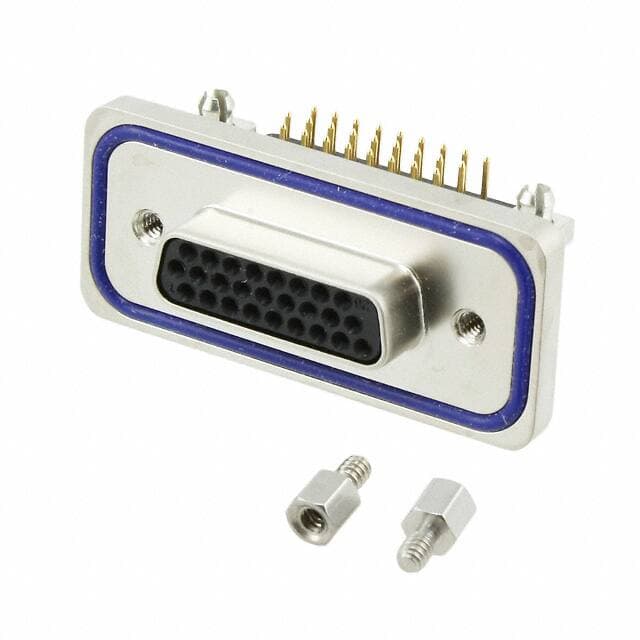

D-Sub, High Density Receptacle, Female Sockets 26-Position Female Signal Solder 2 DA A High Density Board Edge, Through Hole, Right Angle Copper Alloy Gold Zinc Die Cast, Nickel Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

15-002253 information

Conec 15-002253 technical specifications, attributes, parameters and parts with similar specifications to Conec 15-002253.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Panel, Through Hole
  • Mounting Type
  • Board Edge, Through Hole, Right Angle
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Housing Material
  • PBT
  • Shell Material, Finish
  • Zinc Die Cast, Nickel Plated
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Published
  • 2009
  • JESD-609 Code
  • e3
  • Feature
  • Board Lock, Mounting Brackets
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Receptacle, Female Sockets
  • Number of Positions
  • 26
  • Color
  • Black
  • Number of Rows
  • 3
  • Gender
  • Female
  • Voltage - Rated
  • 60V
  • MIL Conformance
  • NO
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Contact Type
  • Signal
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Total Number of Contacts
  • 26
  • Ingress Protection
  • IP67 - Dust Tight, Waterproof
  • Current Rating
  • 3A
  • Number of Conductors
  • ONE
  • Contact Finish
  • Gold
  • Body Length or Diameter
  • 47.7 inch
  • Number Of PCB Rows
  • 3
  • Mating Information
  • MULTIPLE MATING PARTS AVAILABLE
  • Body Breadth
  • 21.1 inch
  • Empty Shell
  • NO
  • Body Depth
  • 14.28 inch
  • Flange Feature
  • Mating Side, Female Screwlock (4-40)
  • Connector Style
  • D-Sub, High Density
  • PCB Contact Row Spacing
  • 2.54 mm
  • Shell Size, Connector Layout
  • 2 DA A High Density
  • Contact Design
  • MACHINED
  • Backset Spacing
  • 0.220 (5.60mm)
  • Contact Finish Thickness
  • 8.00?in 0.203?m
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Conec 15-002253.

Datasheets:

Environmental Information:

15-002253 Overview


Packaging is Receptacle, Female Sockets.This device has a Board Edge, Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.Several benefits come from the Board Lock, Mounting Brackets feature.There is a mounting hole at Panel, Through Hole.Devices operate at -25°C~105°C operating temperatures.

15-002253 Features




15-002253 Applications


There are a lot of Conec
15-002253 D-Sub Connectors applications.
