Manufacturer No:

15-000503

Manufacturer:

Conec

Package:

Description:

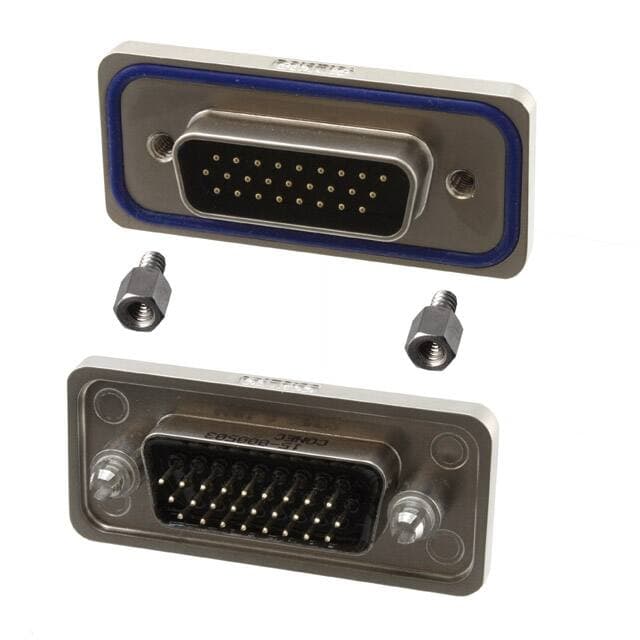

D-Sub, High Density Plug, Male Pins 26-Position Male Signal Solder 2 DA A High Density Panel Mount, Through Hole Copper Alloy Gold Zinc Die Cast, Nickel Plated

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

15-000503 information

Conec 15-000503 technical specifications, attributes, parameters and parts with similar specifications to Conec 15-000503.

  • Type
  • Parameter
  • Factory Lead Time
  • 12 Weeks
  • Contact Material
  • Copper Alloy
  • Mount
  • Panel, Through Hole
  • Mounting Type
  • Panel Mount, Through Hole
  • Dielectric Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Housing Material
  • PBT
  • Shell Material, Finish
  • Zinc Die Cast, Nickel Plated
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Published
  • 2009
  • Feature
  • Board Lock
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Plug, Male Pins
  • Number of Positions
  • 26
  • Color
  • Black
  • Number of Rows
  • 3
  • Gender
  • Male
  • Voltage - Rated
  • 60V
  • Subcategory
  • D Type Connectors
  • Contact Type
  • Signal
  • Total Number of Contacts
  • 26
  • Ingress Protection
  • IP67 - Dust Tight, Waterproof
  • Current Rating
  • 3A
  • Shell Finish
  • NICKEL OVER COPPER
  • Reference Standard
  • UL
  • Contact Finish
  • Gold
  • Reliability
  • COMMERCIAL
  • Body Length or Diameter
  • 1.878 inch
  • Number Of PCB Rows
  • 3
  • PCB Contact Pattern
  • STAGGERED
  • Rated Current (Signal)
  • 3A
  • Contact Resistance
  • 10mOhm
  • Flange Feature
  • Mating Side, Female Screwlock (4-40)
  • Connector Style
  • D-Sub, High Density
  • PCB Contact Row Spacing
  • 1.9812 mm
  • Shell Size, Connector Layout
  • 2 DA A High Density
  • Contact Finish Thickness
  • 8.00?in 0.203?m
  • Plating Thickness
  • 8?in
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant
  • Ratings
  • Dust Tight, IP67, Waterproof

Download datasheets and manufacturer documentation for Conec 15-000503.

Environmental Information:

15-000503 Overview


Packaging is Plug, Male Pins.This device has a Panel Mount, Through Hole mounting type.An orange Bulk case is used to package the product.Several benefits come from the Board Lock feature.There is a mounting hole at Panel, Through Hole.Devices operate at -25°C~105°C operating temperatures.
