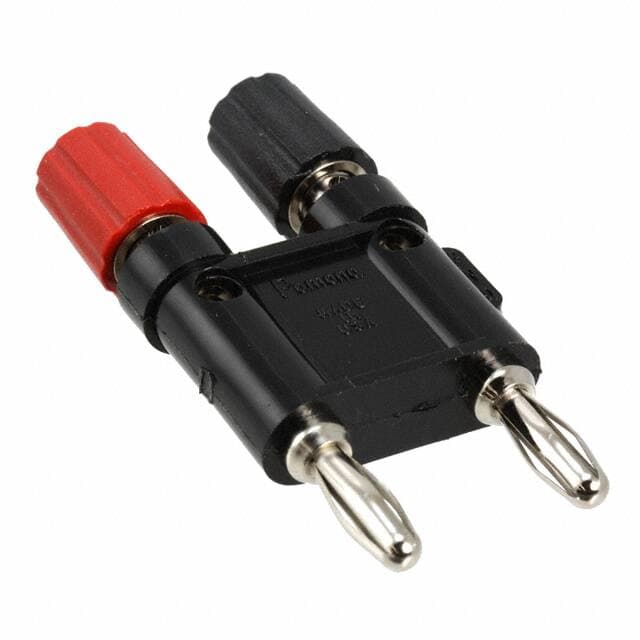

Pomona Electronics 1286
Manufacturer No:
1286
Manufacturer:
Package:
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
1286 information
Pomona Electronics 1286 technical specifications, attributes, parameters and parts with similar specifications to Pomona Electronics 1286.
- Type
- Parameter
- Factory Lead Time
- 2 Weeks
- Number of Pins
- 1
- Weight
- 27.215542g
- Material - Insulation
- Acrylonitrile Butadiene Styrene (ABS)
- Material - Body
- Brass
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- Termination
- Threaded and Turret
- ECCN Code
- EAR99
- Type
- Standard, Dual
- Max Operating Temperature
- 50°C
- Color
- Black, Red
- Gender
- Male
- Voltage - Rated
- 2.5kV
- HTS Code
- 8536.69.80.00
- Subcategory
- RF Adapters
- Voltage - Rated DC
- 2.5kV
- Contact Finish - Mating
- NI
- Orientation
- Straight
- Depth
- 29.72mm
- Reach Compliance Code
- unknown
- Current Rating
- 15A
- Reliability
- COMMERCIAL
- Housing Color
- Black
- Body/Shell Style
- PLUG-PLUG
- Max Current Rating
- 15A
- Number of Ports
- 2
- Plating - Body
- Nickel
- Head Style
- Fluted
- Head Size
- 0.430 OD 11.00mm
- Adapter Style
- BANANA-BINDING
- Cross Hole Diameter
- 0.166 (4.22mm)
- Height
- 12.7mm
- Length
- 57.912mm
- Width
- 101.6mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for Pomona Electronics 1286.
Datasheets:
Features:
- 4 mm red and black plugs/binding posts
- Voltage rating of 30 VAC and 60 VDC
- Current rating of 15 A
- 63 mm in length
- Part of the 1286 series from Pomona Electronics
Applications: The Pomona Electronics Banana and Tip Connectors - Binding Posts 1286 are suitable for a variety of applications, including electrical testing, prototyping, and general electrical connections. They are also suitable for use in educational and laboratory settings.
