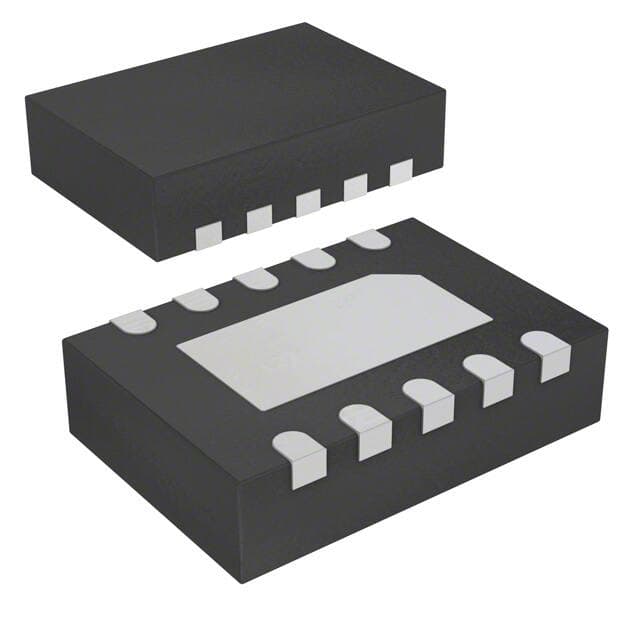

ADI MAX17501EATB+
Manufacturer No:
MAX17501EATB+
Manufacturer:
Package:
10-WFDFN Exposed Pad
Description:
10 Terminals 4.5V 10-Pin MAX17501 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 600kHz Tube 10-WFDFN Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MAX17501EATB+ information
ADI MAX17501EATB+ technical specifications, attributes, parameters and parts with similar specifications to ADI MAX17501EATB+.
- Type
- Parameter
- Factory Lead Time
- 6 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 10-WFDFN Exposed Pad
- Number of Pins
- 10
- Operating Temperature
- -40°C~125°C TJ
- Packaging
- Tube
- Series
- Himalaya
- Published
- 2013
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 10
- ECCN Code
- EAR99
- Technology
- BICMOS
- Terminal Position
- DUAL
- Terminal Pitch
- 0.5mm
- Base Part Number
- MAX17501
- Function
- Step-Down
- Number of Outputs
- 1
- Efficiency
- 90 %
- Voltage - Input (Max)
- 60V
- Output Voltage
- 3.3V
- Output Type
- Fixed
- Voltage - Input (Min)
- 4.5V
- Input Voltage-Nom
- 24V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Output Configuration
- Positive
- Max Output Voltage
- 3.3V
- Topology
- Buck
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 600kHz
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Nominal Output Voltage
- 3.3V
- Height
- 750μm
- Length
- 3.1mm
- Width
- 2.1mm
- REACH SVHC
- Unknown
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ADI MAX17501EATB+.
Datasheets:
ConflictMineralStatement:
MAX17501EATB+ Overview
It is designed to provide optimal performance by utilizing the Tube package. There are 10 terminations in this harley voltage regulator. As this regulator voltage is equipped with an analog IC of the type SWITCHING REGULATOR, it is a SWITCHING REGULATOR-type voltage regulator. For space-saving purposes, this voltage regulator is available in the 10-WFDFN Exposed Pad package. A total of 1 outputs are configured in this voltage regulator. On the output pins of this DC DC switching regulator, there is a Fixed output generated. Surface Mount-mount switching regulator. -40°C~125°C TJ should be the operating temperature when voltage regulator is operating. Voltage regulator's switching frequency reaches 600kHz. The voltage regulator can be operated with a voltage as low as 4.5V as an input voltage. Voltage regulators' input voltage is limited to 60V. To meet the operation requirements, voltage regulator is designed to provide 24V as the nominal input voltage. In this case, the DC/DC regulator belongs to the family MAX17501. Voltage can be produced at 3.3V volts by voltage regulator. The switching regulator operation of the system is controlled by 10 pins. A maximum output current of 500mA A is available to meet the switching regulator operation requirements. The maximum voltage of voltage regulator 12v DC DC switching regulator can produce is 3.3V, which is the highest available. Known as a switching DC-DC regulator, this voltage regulator belongs to the Himalaya family.
