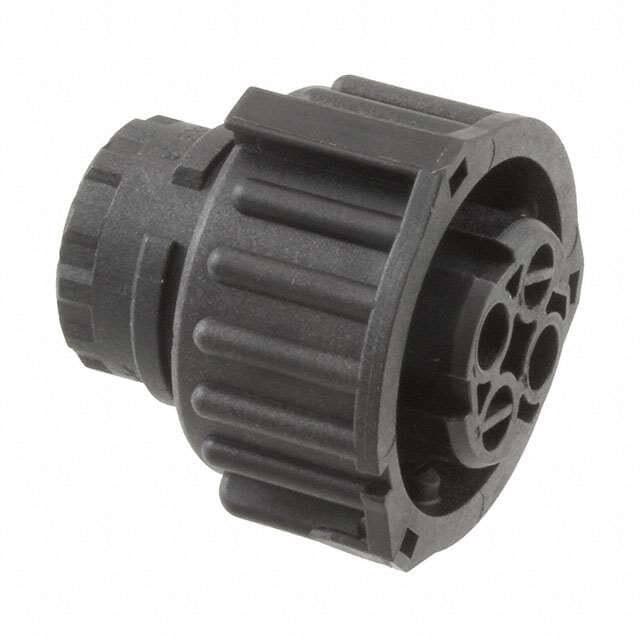

TE Connectivity 1-967325-3

Manufacturer No:

1-967325-3

Manufacturer:

Package:

Description:

Plug Housing Polybutylene Terephthalate (PBT), Glass Filled Free Hanging (In-Line) Bulk Bayonet Lock Unshielded Contacts Not Included 2.5mm System

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1-967325-3 information

TE Connectivity 1-967325-3 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1-967325-3.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
11 Weeks

Mount
Cable, Free Hanging

Mounting Type
Free Hanging (In-Line)

Contact Shape
Circular

Shell Material
Polybutylene Terephthalate (PBT), Glass Filled

Material
Polybutylene

Housing Material
Polyamide

Body Material
PBT, Polybutylene

Operating Temperature
-40°C~120°C

Packaging
Bulk

Series
2.5mm System

Published
1998

Feature
Coupling Nut

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Quick Connect

ECCN Code
EAR99

Connector Type
Plug Housing

Type
For Female Sockets

Number of Rows
2

Gender
Receptacle

Fastening Type
Bayonet Lock

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Crimp

Option
GENERAL PURPOSE

Pitch
7.0104mm

Total Number of Contacts
2

Orientation
1

Shielding
Unshielded

Ingress Protection
IP67/69K - Dust Tight, Water Resistant, Waterproof

Depth
31mm

Current Rating
5A

Voltage - Rated AC
250V

Housing Color
Black

Empty Shell
YES

Insulation Resistance
10?Ohm

Note
Contacts Not Included

Contact Size
2.5mm

ELV
Compliant

Hybrid Connector
No

Serviceable
No

Height
32.8mm

Length
31mm

Download datasheets and manufacturer documentation for TE Connectivity 1-967325-3.

Datasheets:

teconnectivityampconnectors-29673253-datasheets-6813.pdf

1-967325-3 Overview

The product comes in a package of Plug Housing.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the 2.5mm System Series.There are many similarities between this part and other For Female Sockets products.It is possible to maintain Coupling Nut while the system is operating.For mounting this part, a Cable, Free Hanging socket is required.

1-967325-3 Features

2.5mm System series

1-967325-3 Applications

There are a lot of TE Connectivity Deutsch Connectors
1-967325-3 Circular Connectors applications.

Digital Multimeters, PLC's (Programming Logic Controllers)
RADAR processing, digital oscilloscopes
CMOS Image sensors for mobile applications
Medical Instrumentation and medical imaging
Music recording
Digital signal processing
Scientific instruments
Rotary encoder
Displaying
Transducer
