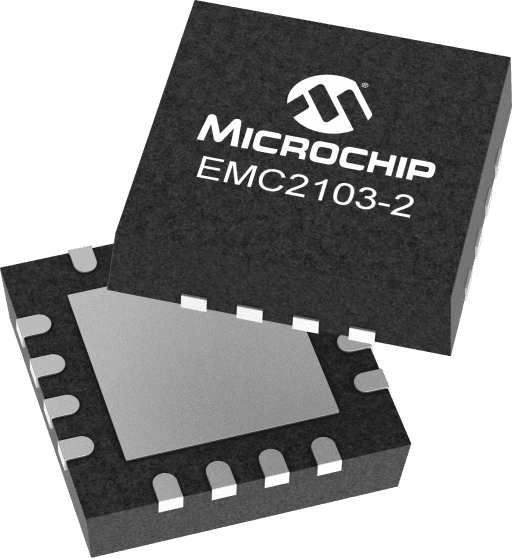

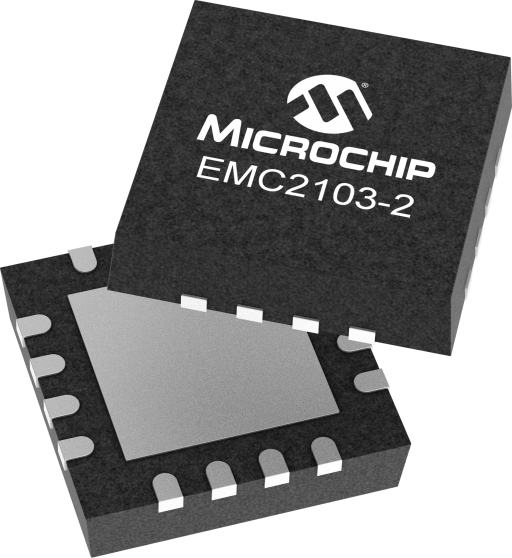

Microchip EMC2103-2-AP-TR
Manufacturer No:
EMC2103-2-AP-TR
Manufacturer:
Microchip
Package:
16-VQFN Exposed Pad
Description:
EMC2103-2 Single PWM fan controller with closed loop, speed table, high frequency support, 4 temperature sensors, I2C, alert
Quantity:
In Stock :4901
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, Jun 4 - Fri, Jun 5, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
EMC2103-2-AP-TR Information
Microchip EMC2103-2-AP-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip EMC2103-2-AP-TR.
- Type
- Parameter
- # Fans Drivers
- 1
- PWM/Linear Control
- PWM
- # RemoteTemperature Monitors
- 3
- Ambient Temperature Sensor
- 1
- TypicalAccuracy
- ±0.5
- Max Accuracy
- ±1.0
- Temperature Max
- 125
- Temperature Min
- -40
- Vcc Max (V)
- 3.6
- Vcc Min (V)
- 3.0
- Type
- Parameter
- SMBus Alert
- Yes
- System Shutdown
- Yes
- Voltage Monitors
- No
Download datasheets and manufacturer documentation for Microchip EMC2103-2-AP-TR.
User Guide:
Brochures:
The EMC2103 is an SMBus compliant fan controller with up to up to 3 external and 1 internal temperature channels. The fan driver can be operated using two methods each with two modes. The methods include an RPM based Fan Speed Control Algorithm and a direct PWM drive setting. The modes include manually programming the desired settings or using the internal programmable temperature look-up table to select the desired setting based on measured temperature.
The temperature monitors offer 1°C accuracy (for external diodes) with sophisticated features to reduce errors introduced by series resistance and beta variation of substrate thermal diode transistors commonly found in processors.
The EMC2103 also includes a hardware programmable temperature limit and dedicated system shutdown output for thermal protection of critical circuitry.
- 4-wire fan compatible
- High and low frequency PWM
- 2.5% accuracy from 500RPM to 16k RPM
- Detects fan aging and variation
- Allows programmed fan response to temperature
- Controls fan speed or PWM drive setting
- Allows externally set temperature data to drive fan
- Supports DTS data from CPU
- Supports 45nm, 60nm, and 90nm CPU diodes
- Automatically detects and supports CPUs requiring BJT or Transistor models
- Resistance error correction
- Supports discrete transistors (i.e. 2N3904)
- 1°C accurate (60°C to 125°C)
- 0.125°C resolution
- Cannot be altered by software
- 65°C to 127°C Range
- Programmable High and Low Limits for all channels
- 2°C accuracy
- 0.125°C resolution
- 3.3V Supply Voltage
- SMBus Alert compatible
- Two dedicated GPIOs (EMC2103-2 and EMC2103-4 only)
- Available in 12-pin, QFN RoHS Compliant Package (EMC2103-1) or 16-pin, QFN RoHS Compliant Package (EMC2103-2 and EMC2103-4)
- Notebook Computers
- Projectors
- Graphics Cards
- Industrial and Networking Equipment
