TE Connectivity 1-104363-0

Manufacturer No:

1-104363-0

Manufacturer:

Package:

Description:

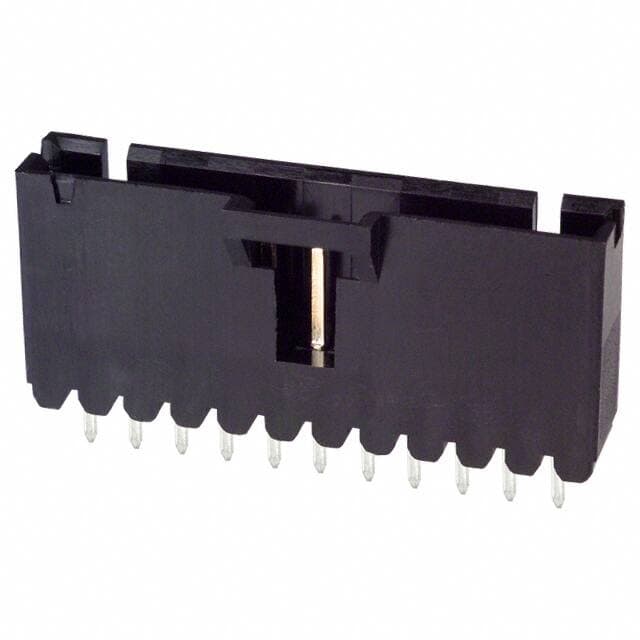

AMPMODU MTE Series 1-Row Header Solder Brass Tube Through Hole Gold Thermoplastic 11-Position Board to Board or Cable 0.535 13.60mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1-104363-0 information

TE Connectivity 1-104363-0 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity 1-104363-0.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
11 Weeks

Contact Material
Brass

Mount
Solder, Through Hole

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Thermoplastic

Underplate Material
Nickel

Operating Temperature
-65°C~105°C

Packaging
Tube

Series
AMPMODU MTE

Published
2010

Feature
Keying Slot

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
11

Applications
Automotive, General Purpose, Medical, Telecommunications

Number of Rows
1

Gender
Male

Additional Feature
AMPMODU, LATCHED, POLARIZED

Fastening Type
Latch Holder

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Orientation
Vertical

Insulation Height
0.535 13.60mm

Style
Board to Board or Cable

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.100 2.54mm

Insulation Color
Black

Contact Length - Post
0.130 3.30mm

Shrouding
Shrouded - 4 Wall

Contact Finish - Post
Tin-Lead

Contact Length - Mating
0.230 5.84mm

Mating Information
MULTIPLE MATING PARTS AVAILABLE

UL Flammability Code
94V-0

Lead Length
3.302mm

Overall Contact Length
0.550 13.97mm

Contact Resistance
15mOhm

Row Spacing
2.54 mm

Download datasheets and manufacturer documentation for TE Connectivity 1-104363-0.

1-104363-0 Overview

The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the AMPMODU MTE Series.To name a few, there is also AMPMODU, LATCHED, POLARIZED.The device could be used for the following application: Automotive, General Purpose, Medical, Telecommunications.There are a number of advantages to its Keying Slot feature.Part Solder, Through Hole is mounted to the part.As a result, the device runs at -65°C~105°C Operating Temperature.

1-104363-0 Features

AMPMODU MTE series

1-104363-0 Applications

There are a lot of TE Connectivity AMP Connectors
1-104363-0 Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
