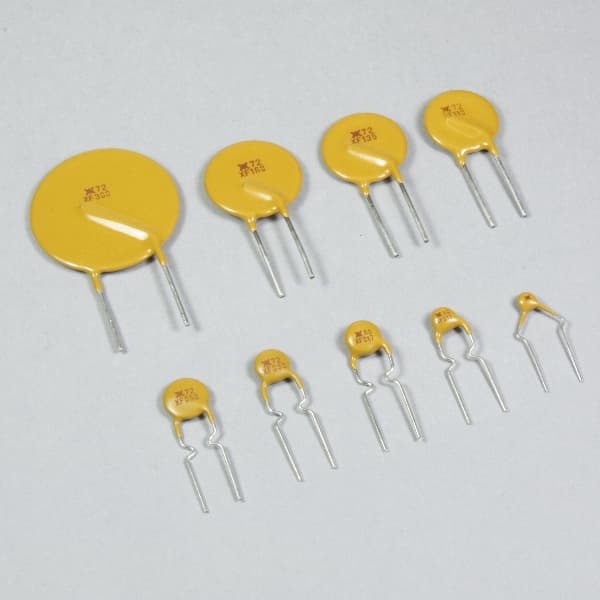

TE Connectivity RXEF010
Manufacturer No:
RXEF010
Manufacturer:
Package:
RADIAL LEADED, ROHS COMPLIANT
Description:
Description: PTC Resettable Fuse, 7.5ohm, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
RXEF010 information
TE Connectivity RXEF010 technical specifications, attributes, parameters and parts with similar specifications to TE Connectivity RXEF010.
- Type
- Parameter
- Pbfree Code
- Yes
- Rohs Code
- Yes
- Part Life Cycle Code
- Transferred
- Ihs Manufacturer
- TE CONNECTIVITY LTD
- Package Description
- RADIAL LEADED, ROHS COMPLIANT
- Reach Compliance Code
- compliant
- Factory Lead Time
- 8 Weeks
- Samacsys Manufacturer
- TE Connectivity
- Additional Feature
- RESISTANCE MAX CAPTURED @ 20 DEG CEL
- JESD-609 Code
- e3
- Mounting Feature
- THROUGH HOLE MOUNT
- Number of Terminals
- 2
- Operating Temperature-Max
- 85 °C
- Operating Temperature-Min
- -40 °C
- Package Height
- 11.6 mm
- Package Length
- 7.4 mm
- Package Shape
- DISK PACKAGE
- Package Style
- Radial
- Package Width
- 3 mm
- Packing Method
- BULK
- Resistance
- 4.5 Ω
- Resistor Type
- PTC RESETTABLE FUSE
- Surface Mount
- NO
- Terminal Finish
- Tin (Sn)
- Terminal Shape
- WIRE
- Thermistor Application
- TEMPERATURE SENSING
- Working Voltage
- 60 V
Download datasheets and manufacturer documentation for TE Connectivity RXEF010.
Datasheets:
RohsStatement:
RXEF010 Overview
The PTC thermistors are put into Radial packages to protect the devices from damage. These PTC thermistors are packaged in the Bulk for safety protection. The minimum operating temperature for the PTC thermistors should be set to -40°C. To make sure this thermistor works, the operating temperature must not exceed 85°C. The PTC thermistor has 2 terminations. The PTC thermistors could supply 60V voltage when it operates. The current for which the PTC thermistors have been designed is 100mA. In the DC circuit, the voltage for which these thermistors have been rated is 60V. The heat produced by PTC thermistors should be 380mW. The current for PTC thermistors should not be higher than 40A.
RXEF010 Features
Package / Case: Radial
Mount: Through Hole
Terminal Shape: WIRE
RXEF010 Applications
There are a lot of TE Connectivity
RXEF010 PTC Thermistors applications.
- Temperature monitoring
- HVAC and thermostats
- Industrial control and appliances
- Thermal compensation
- Display backlights
- Building automation
- Thermal threshold detection
- Motor control
- Chargers
- Thermal protection of winding in electric motors
