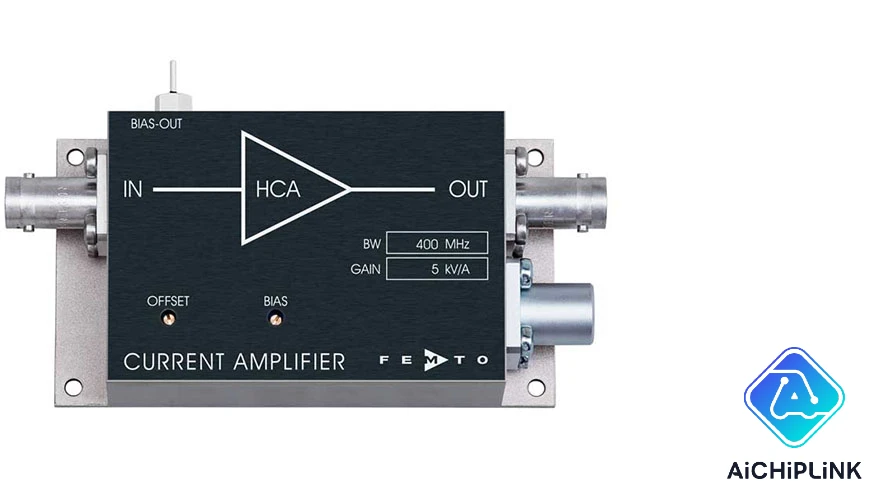

A transimpedance amplifier changes input current into output voltage. This is important for signal processing in sensor circuits. This amplifier is often used with a photodiode or other optical sensors. The input current can be as low as 8.7 nA or as high as 600 µA. The output voltage depends on the feedback resistor and the input current. You can see this in the table below:
| Parameter | Typical Range / Value |
|---|---|
| Input Current (In) | 8.7 nA to 600 µA |
| Feedback Resistor (Rfb) | 1 kΩ to 1 MΩ |
| Output Voltage (Vo) | Millivolts to Volts (Vo = -In * Rfb) |
A transimpedance amplifier keeps its input voltage steady. This helps it find small changes in current very well. Transimpedance circuits work well in light-sensing and optical measurement systems.
Key Takeaways
- A transimpedance amplifier turns small sensor currents into voltages you can measure. It uses an op-amp and a feedback resistor to do this. It keeps the input voltage the same, which helps sensors like photodiodes work better. This also makes measurements more accurate. Picking the right feedback resistor is important. It helps balance signal gain, speed, and stability for the best results. This amplifier lowers noise and deals with sensor capacitance better than simple resistor circuits. That makes it great for sensitive measurements. Transimpedance amplifiers are used in optical sensors, medical devices, and communication systems. They help change current to voltage in a reliable way.
Transimpedance Amplifier Operation
Basic Circuit
A transimpedance amplifier has a simple circuit. The main parts are a photodiode, an operational amplifier, a feedback resistor, and sometimes a feedback capacitor. The photodiode changes light into a small current. The operational amplifier helps turn this current into a voltage. The feedback resistor connects the amplifier’s output to its inverting input. Sometimes, a small capacitor is added with the resistor to keep the circuit stable.
Tip: The inverting input stays at a very low voltage called virtual ground. This helps the amplifier measure the sensor’s current directly.
Here is a table that shows how a transimpedance amplifier circuit is different from a standard operational amplifier circuit:
| Feature | Transimpedance Amplifier (TIA) | Standard Operational Amplifier Circuit |
|---|---|---|
| Input type | Current input (e.g., photodiode current) | Voltage input |
| Input resistor | None (input held at virtual ground) | Present (input resistor used) |
| Feedback network | Feedback resistor (and sometimes capacitor) | Typically feedback resistor(s) |
| Input node voltage | Held at virtual ground (near zero volts) | Varies, not necessarily virtual ground |
| Output | Voltage proportional to input current (V = I × R_feedback) | Voltage amplified from input voltage |
| Purpose | Converts input current to output voltage | Amplifies input voltage |
| Bandwidth and stability | Feedback network designed to handle photodiode capacitance and stability issues | General feedback design for voltage gain |
| Input impedance | Very low (to measure current directly) | Higher input impedance |
The transimpedance amplifier is a current-to-voltage converter. It works best with sensors like photodiodes. Its low input impedance helps it sense small currents very well.
Standard components in a basic transimpedance amplifier circuit:
-
Photodiode: Changes light into current.
-
Operational Amplifier: Turns current into voltage.
-
Feedback Resistor: Sets how much current becomes voltage.
-
Feedback Capacitor: Helps keep the circuit stable.
Current-to-Voltage Gain
The main job of the transimpedance amplifier is to turn current into voltage. It takes the small current from the sensor and makes it a voltage that is easy to measure. The gain depends on the feedback resistor. The formula for the output voltage is:
V_OUT = - I_IN × R_F
This means the output voltage is the input current times the feedback resistor, but negative because of the inverting setup. The amplifier keeps the inverting input at virtual ground. All the current from the sensor goes through the feedback resistor. This makes the amplifier very accurate.
The feedback resistor controls how much the amplifier boosts the signal. In photodiode circuits, the resistor is often between 20kΩ and 499kΩ. A bigger resistor gives more gain but less bandwidth. The amplifier must balance gain and speed for good performance.
Note: The transimpedance amplifier keeps the input voltage steady. This is important for accurate current-to-voltage conversion. If the input voltage changes, the amplifier cannot measure the current right.
Feedback Resistor Role
The feedback resistor is the most important part of the transimpedance amplifier. It sets the gain by turning input current into voltage. The value of this resistor affects many things:
-
It sets the gain for the current-to-voltage converter.
-
It works with any stray or input capacitance to limit bandwidth.
-
It affects how stable the amplifier is. If the resistor is too big, the amplifier may become unstable.
-
It adds noise to the circuit, especially at low frequencies.
A small capacitor is often put with the feedback resistor. This helps control the bandwidth and keeps the amplifier stable. The designer must pick the resistor and capacitor values carefully. A bigger resistor gives more gain but less bandwidth and more noise. A smaller resistor gives more bandwidth and less noise but less gain.
Tip: Always pick the feedback resistor value to get the right mix of gain, bandwidth, and stability for your current-to-voltage amplifier.
The transimpedance amplifier works best when the input voltage stays steady. The operational amplifier changes its output to keep the inverting input at virtual ground. This steady voltage is important for accurate current-to-voltage conversion. If the input voltage moves, the amplifier cannot measure the sensor current correctly.
Why Use Transimpedance?
Resistor Limitations
It might seem simple to use a resistor to change current into voltage in sensor circuits. But this way has many problems. When a sensor like a photodiode sends current through a resistor, a voltage appears across it. This voltage can mess up how the sensor works and make the reading less correct. The resistor is connected right to a reference point, like ground or a power supply. This can cause problems in the circuit.
Some main problems with using a resistor for current-to-voltage conversion are:
-
The voltage across the resistor can mess up the sensor.
-
Very small resistors are needed to keep the voltage low, but then the voltage signal is tiny and hard to measure.
-
The resistor’s value can change if the temperature changes, which can cause mistakes.
-
The resistor gets hot from the current, and this heat can change its value and make the reading wrong.
-
The resistor is in the path of the current, so it can affect other parts of the circuit and does not keep the sensor separate.
-
Amplifier mistakes, like offset voltage and bias current, can cause big errors when measuring small voltages.
The table below gives more details about these problems:
| Limitation | Explanation |
|---|---|
| Temperature dependence | Resistance changes with temperature, causing errors and nonlinearity. |
| Power dissipation and heating | Current heats the resistor, changing its value and affecting accuracy. |
| Invasiveness and lack of isolation | The resistor affects the circuit and does not isolate the sensor. |
| Low voltage levels | Small resistors create tiny voltages that need more amplification. |
| Voltage drop impact | The voltage drop can change how the sensor or circuit works. |
| Amplifier errors | Offset voltage and bias currents can cause large errors at low voltages. |
A resistor can work for current-to-voltage conversion in easy circuits. But it often has trouble with temperature changes, power loss, and mistakes in measurement. These problems make it hard to get good and steady readings, especially when the sensor current is very small.
Advantages of Transimpedance
A transimpedance amplifier fixes many problems that happen with just a resistor. This amplifier uses an operational amplifier with negative feedback to keep the input at virtual ground. This means the voltage at the input stays close to zero, so the sensor works in a steady way. The input current goes through the feedback resistor, and the amplifier changes this current into a voltage output.
Some big advantages of using a transimpedance amplifier for current-to-voltage conversion are:
-
The amplifier keeps the input voltage steady, which helps the sensor work better and makes the reading more correct.
-
The low input impedance means almost all the sensor current goes through the feedback resistor. This makes the output more sensitive and reliable.
-
You can easily change the gain and bandwidth by picking different feedback resistors or adding a feedback capacitor.
-
The circuit can handle extra capacitance, which can be a problem in resistor-only circuits.
-
The amplifier makes it easier to find small signals from sensors like photodiodes because it improves the signal-to-noise ratio.
-
Adding a feedback capacitor helps keep the circuit steady and stops unwanted oscillations.
Tip: The low input impedance of a transimpedance amplifier keeps the voltage across the sensor very low. This makes the circuit faster and more correct by reducing the effect of sensor capacitance and resistance.
The table below compares resistor-based and transimpedance amplifier circuits:
| Feature/Aspect | Resistor-Based Converter | Transimpedance Amplifier |
|---|---|---|
| Input impedance | High | Very low (virtual ground) |
| Voltage drop across sensor | High | Very low |
| Sensitivity | Low | High |
| Gain and bandwidth adjustment | Difficult | Easy (by changing feedback components) |
| Signal-to-noise ratio | Lower | Higher |
| Stability with capacitance | Poor | Good (with feedback capacitor) |
| Measurement accuracy | Lower | Higher |
A transimpedance amplifier works better for changing current to voltage in sensor circuits. It gives a steady bias, high sensitivity, and better signal detection. The amplifier also lets you design the circuit in different ways and helps with noise and capacitance. Because of these reasons, engineers often pick transimpedance circuits when they need accurate and reliable current-to-voltage conversion.
Key Characteristics
Input/Output Impedance
A transimpedance amplifier has very low input impedance at low frequencies. This helps it measure tiny currents from sensors like photodiodes. When the frequency gets higher, the input impedance also gets higher. It can get close to the value of the feedback resistor. Voltage amplifiers are different because they always have high input impedance. The low input impedance in a transimpedance amplifier makes almost all the sensor current go through the feedback resistor. This helps the circuit measure current more accurately.
| Frequency Range | Transimpedance Amplifier Input Impedance | Voltage Amplifier Input Impedance |
|---|---|---|
| Much lower than GBW (f ≪ GBW) | Approximately zero (very low) | High |
| Much higher than GBW (f ≫ GBW) | Approaches feedback resistor Rf | High |
The output impedance of a transimpedance amplifier is usually low. This means it can send its signal to other circuits or tools without losing quality.
Noise and Bandwidth
Noise in a transimpedance amplifier comes from different places. The main sources are voltage noise and current noise from the operational amplifier. Resistors in the circuit also make noise. The photodiode capacitance and the feedback resistor can make noise worse at high frequencies. If the photodiode has high capacitance, the voltage noise from the amplifier gets bigger at high frequencies. This makes it harder to find weak signals.
-
Main noise sources in transimpedance circuits:
-
Voltage noise from the amplifier
-
Current noise from the amplifier’s input
-
Noise from resistors
-
Noise caused by photodiode and amplifier capacitance
-
The bandwidth of a transimpedance amplifier depends on the feedback resistor and the total input capacitance. A bigger feedback resistor gives more gain but less bandwidth. Designers must pick the right balance between gain and bandwidth for their needs.
Tip: A cascode transistor can help lower noise by keeping the amplifier away from the photodiode capacitance. But it might also make the bandwidth smaller.
Stability and Compensation
Stability is very important when designing a transimpedance amplifier. The photodiode capacitance adds to the input capacitance. This makes an extra pole in the feedback loop. The amplifier can become unstable and start to oscillate or ring. To keep the circuit stable, designers add a small feedback capacitor next to the feedback resistor. This capacitor makes a zero that helps fix the phase shift from the capacitance.
| Aspect | Explanation |
|---|---|
| Photodiode Capacitance Impact | Adds to input capacitance, creating an extra pole |
| Effect on Stability | Reduces phase margin, can cause oscillations |
| Compensation Requirement | Add feedback capacitor to introduce a zero |
| Overcompensation Trade-off | Too much capacitance reduces bandwidth |
| Practical Techniques | Use voltage dividers or T-networks to adjust feedback |
For high-speed transimpedance amplifiers, engineers sometimes use a resistor and capacitor in series (Rm-Cm network). This helps make the circuit stable and keeps good bandwidth. This way, they do not need big inductors. The feedback capacitor value must be picked carefully. It should keep the amplifier stable but still let the circuit work fast enough for the job.
Applications and Design Tips
Photodiode Circuits
Transimpedance circuits are used in many new technologies. Engineers put them in optical sensors and fiber optic receivers. They are also in scientific tools. In optical communication, a transimpedance circuit comes after the photodiode. It changes the photodiode current into a voltage signal. Other circuits can use this voltage signal. This setup needs low noise and high gain to keep the signal clear. Designers pick different circuit types for fiber networks. Some types are shunt resistance or regulated cascode.
Scientific tools and medical imaging devices use transimpedance too. These systems need to change small currents from photodiodes into voltage. The conversion must be accurate and have little noise. Particle detectors and photon-counting devices use transimpedance. They need to measure fast signals. Precision is important, so designers use special resistors. They also use careful layouts to lower errors.
Note: Photodiode amplifiers must be fast and accurate. The feedback resistor and compensation capacitor help balance these needs.
Practical Guidelines
Designers follow some steps to get good results from a transimpedance circuit. First, they pick an operational amplifier with low voltage noise and current noise. FET input amplifiers are often better than bipolar types. This is because they have lower current noise. The amplifier should also have low input capacitance. This helps keep the circuit stable.
| Design Aspect | Key Point |
|---|---|
| Op Amp Selection | Choose low-noise, low-capacitance, high-gain-bandwidth amplifiers |
| Feedback Components | Set gain with resistor; add capacitor for stability and bandwidth control |
| PCB Layout | Place photodiode close to input; use guard traces to block leakage |
| Noise Management | Use short input cables; add bypass capacitors near the photodiode |
Engineers also watch the printed circuit board closely. They keep traces short and use guard rings to stop leakage. High-frequency bypass capacitors near the photodiode help supply fast currents. The feedback resistor sets the gain. The feedback capacitor keeps the transimpedance circuit stable.
Tip: Always check the amplifier datasheet for layout advice and feedback values. Good layout and careful parts make a big difference in how well the circuit works.
Transimpedance circuits are important in sensor systems. They change current from things like photodiodes into voltage. This makes the signals easier to check and measure.
-
Transimpedance uses an op-amp and a feedback resistor. This gives high sensitivity and keeps noise low.
-
Designers need to find the right mix of gain, bandwidth, and stability. This helps the circuit work its best.
-
Transimpedance can handle fast data and works in optical and RF sensors.
| Resource | Use Case |
|---|---|
| Photodiode Wizard | Helps design transimpedance circuits |
| Precision Studio | Lets you try out signal chains |
If you want to learn about transimpedance design, you can use online tools and tutorials for practice.
FAQ
What does a transimpedance amplifier do?
A transimpedance amplifier takes a small current from a sensor and turns it into a voltage. This helps people measure signals from things like photodiodes more easily.
Why do engineers use a feedback resistor?
Engineers pick a feedback resistor to decide how much the amplifier boosts the signal. The resistor also helps the circuit stay fast and steady.
How does a transimpedance amplifier help with noise?
A transimpedance amplifier keeps the input voltage almost the same all the time. This lowers extra noise and helps the circuit find weak signals better.
Can a transimpedance amplifier work with any sensor?
Most transimpedance amplifiers work best with sensors that make current, like photodiodes. They do not work as well with sensors that only give voltage.
What happens if the feedback resistor is too large?
If the feedback resistor is too big, the amplifier might not stay steady. The circuit can get noisier and may not work as fast.
