You might see these signs if your camshaft position sensor is bad:
-
The check engine light turns on
-
The engine stops or is hard to start
-
The engine shakes or RPM goes up and down
-
The car speeds up slowly and feels weak
-
The car uses more gas than normal
-
The car might go into limp mode
Driving with a broken camshaft position sensor is not safe. The engine can turn off suddenly or slow down when you speed up. This can make accidents more likely. Finding the problem fast keeps you, your passengers, and others safe.
Key Takeaways
-
A bad camshaft position sensor can make the engine stall. It can also cause rough idling and slow acceleration. The check engine light may turn on too.
-
Driving with a bad sensor is not safe. The engine might stall or lose power fast. This can make accidents more likely.
-
You can test the sensor with an OBD-II scanner. You can also look at it or use a multimeter or oscilloscope. These tools help you find problems.
-
The sensor can fail from getting old, bad wires, or oil leaks. Checking and cleaning it often can stop these problems.
-
Changing a bad sensor is usually fast and not expensive. But always ask a professional to check before fixing it.
Camshaft Position Sensor
Role in Engine Timing
The camshaft position sensor is very important for your car’s engine. It keeps track of where the camshaft is and how fast it spins. The sensor sends this information to the engine control module, or ECM. The ECM uses this to decide when to put fuel in the engine and when to make the spark plugs fire. The timing has to be just right for the engine to work well.
Here is how the camshaft position sensor helps with engine timing:
| Aspect | Explanation |
|---|---|
| Role of Sensor | Finds out where the camshaft is and how fast it turns. |
| Timing Control | Gives the ECM up-to-date info for good fuel and spark timing. |
| Combustion Impact | Helps the engine burn fuel well and keeps pollution low. |
| Accuracy Importance | Bad signals can make the engine run rough and pollute more. |
| Works With | Works together with the crankshaft sensor for best timing. |
If the camshaft position sensor stops working, the ECM cannot time the fuel and spark right. This can make the engine misfire or even stall.
Impact on Performance
If the camshaft position sensor does not work, you will see engine problems. The sensor helps the engine start, run, and speed up the right way. If the sensor is bad, the ECM may not know when to add fuel or fire the spark plugs. This can make the engine run rough, lose power, or not start at all.
Some common engine problems from a bad camshaft position sensor are:
-
Engine misfiring or shaking
-
Losing power, especially when you try to go faster
-
Hard to start or will not start
-
Stalling while you drive
-
Weird speeding up or jerking
A good camshaft position sensor helps your engine run its best. It helps your car use less gas and make less pollution. If you see any of these problems, you should check the camshaft position sensor.
Common Symptoms of Bad Camshaft Position Sensor
Signs of a Bad Camshaft Position Sensor
You might see warning signs if your camshaft position sensor starts to go bad. These signs can show up before the sensor stops working. If you notice them early, you can stop bigger engine problems.
| Symptom | Explanation |
|---|---|
| Check engine light | The engine light comes on when the sensor sends wrong signals or fails. |
| Engine misfire | Bad timing makes the engine misfire or run rough. |
| Poor fuel economy | The engine uses more gas because it cannot time things right. |
| Rough idle | The engine shakes or vibrates when you stop or drive slow. |
| Difficulty starting engine | The car will not start or takes longer to start. |
| Poor acceleration | The car feels weak and slow when you press the gas. |
| Stalled engine | The engine stops running suddenly or stalls at stops. |
These are the most common signs of a bad camshaft position sensor. You might see one or more of these at the same time.
Symptoms of a Faulty Camshaft Position Sensor
You can spot a faulty camshaft position sensor by watching how your car acts:
-
The check engine light turns on and stays on.
-
The engine misfires or shakes while you drive.
-
You notice rough idle or the RPM needle moves up and down.
-
The car will not start or takes a long time to crank.
-
The car feels slow and does not speed up well.
-
The engine stalls without warning, mostly at low speeds.
-
You see poor fuel economy and need to fill up more often.
-
The car may go into limp mode, which limits speed and power.
These symptoms can also happen with other engine problems. But if you see many of them together, the camshaft position sensor could be the cause.
Check Engine Light and Codes (P0340)
The check engine light is usually the first sign of a problem. When the camshaft position sensor fails, your car’s computer saves a trouble code. The most common code is P0340, which means the sensor circuit is not working right. Other codes like P0341, P0342, and P0343 can also show up.
Tip: If you see the check engine light and get a P0340 code, check the sensor, wiring, and connectors. Sometimes, the problem is not the sensor but a wiring issue or a broken connector.
A P0340 code does not always mean the sensor is bad. It can also mean there is a problem with the wiring, how the sensor is put in, or even the engine’s timing parts. Always check all related parts before you replace the sensor.
Engine Stalling and Hard Starting
A bad camshaft position sensor can make the engine stall or hard to start. You might notice the engine cranks for a long time before it starts, or sometimes it does not start at all. Sometimes, the car will not start, especially if the sensor is fully broken.
-
The engine may stall at stop signs or while idling.
-
You might need to turn the key many times before the engine starts.
-
Sometimes, the engine starts but then stalls right away.
These symptoms can make driving unsafe. If your engine stalls in traffic, you could lose control of the car.
Note: Crankshaft position sensor problems can also cause stalling, but the car usually starts again after cooling down. With a camshaft position sensor, the engine often cranks for a long time or does not start at all.
Rough Idle and RPM Fluctuations
When the camshaft position sensor sends weak or wrong signals, the engine cannot keep a steady idle. You might feel the car shake or see the RPM needle move up and down. This rough idle can happen at stoplights or when you park.
-
The engine vibrates or jerks while idling.
-
The RPM gauge moves in a strange way.
-
The car may feel like it wants to stall.
These symptoms make the car uncomfortable to drive. They also show that the engine is not running smoothly.
Poor Acceleration and Power Loss
A bad camshaft position sensor can cause poor acceleration and power loss. When you press the gas pedal, the car feels slow or does not respond well. The engine may hesitate or jerk when you try to speed up.
-
The car takes longer to reach normal speeds.
-
You notice the car does not perform well, especially when merging or passing.
-
The engine feels weak and has trouble on hills.
These symptoms can make driving stressful and even dangerous in heavy traffic.
Poor Fuel Economy
Poor fuel economy is another common sign. The engine control module cannot time the fuel injection right without good sensor data. This makes the car use more gas and you have to fill up more often.
-
You notice you need to get gas more often.
-
The car uses more fuel than normal for the same trips.
Tests show that a bad camshaft position sensor makes the engine use too much or too little fuel. This makes the engine work harder and wastes gas.
Limp Mode Activation
Some cars go into limp mode when the camshaft position sensor fails. Limp mode limits the engine’s power and speed to protect it from damage. You may see a warning on the dashboard, and the car will not go faster than a set speed.
-
The car feels very slow and will not go past a certain speed.
-
Transmission shifting problems may happen, making gear changes rough or slow.
Limp mode helps stop more engine damage, but you need to fix the problem right away.
🚨 If you notice any of these common symptoms of a bad camshaft position sensor, you should check the sensor and related parts soon. Ignoring these signs can lead to bigger engine problems and higher repair costs.
Testing Camshaft Position Sensor
OBD-II Scanner and Trouble Codes
You can start by using an OBD-II scanner to check for problems. This tool helps you find diagnostic trouble codes that point to sensor issues. Here is how to test a camshaft position sensor with a scanner:
-
Plug the OBD-II scanner into your car’s diagnostic port under the dashboard.
-
Turn the ignition to the “ON” position, but do not start the engine.
-
Scan for diagnostic trouble codes like P0340 or P0341. These codes often mean the sensor has a problem.
-
Clear the codes, then start the engine and see if the codes come back.
-
If the codes return, you should move to the next steps.
OBD-II scanners give you a quick way to spot sensor faults. However, they may miss small or random problems. For the most accurate results, combine scanning with other tests.
Visual Inspection
A careful look at the sensor and its wiring can reveal many issues. When you want to know how to check if a camshaft position sensor is bad, look for these signs:
-
Cracks or corrosion on the sensor body.
-
Oil or grime covering the sensor.
-
Loose or corroded electrical connectors.
-
Frayed wires or loose connections in the harness.
-
Dirt or debris blocking the sensor.
Harsh conditions like heat, oil leaks, and dirt can damage the sensor. If you see any of these problems, the sensor may not work right.
Multimeter or Oscilloscope Test
If you want to know how to test a camshaft position sensor more deeply, use a multimeter or oscilloscope. A multimeter checks voltage and resistance. An oscilloscope shows the sensor’s signal pattern.
| Test Type | Sensor Type | Expected Values / Behavior |
|---|---|---|
| Power Supply Check | All CMP Sensors | 5V or 12V DC (ignition ON, engine off) |
| Signal Output Test | Hall-effect Sensor | Voltage jumps between 0.5V and 5V while cranking |
| Signal Output Test | Magnetic Reluctance | AC voltage changes during engine cranking |
| Resistance Test | Magnetic Reluctance | Compare resistance to manual specs |
If you see no voltage change or the readings do not match the table, the sensor could be faulty.
Comparing Sensor Output
To confirm a problem, compare the sensor’s output to a known good sensor. Use an oscilloscope to check the waveform. A healthy sensor makes clear, regular pulses. If the pattern looks odd, has merged lines, or lacks sharp edges, the sensor may be bad or installed wrong. This method gives you the best answer when you want to know how to check if a camshaft position sensor is bad.
Tip: Combining OBD-II scanning, visual checks, and signal testing gives you the most reliable results.
Causes of Sensor Failure
Wear and Tear
The camshaft position sensor deals with tough conditions. Heat and shaking happen every time you drive. Over time, these things wear out the sensor. The plastic part can crack from getting hot and cold a lot. Inside parts stop working as well as they get older. The reluctor wheel also wears down after many miles. Metal bits from the engine can stick to the sensor. This messes up its magnetic field. These problems make the sensor less reliable and can cause it to fail.
Common wear and tear issues include:
-
Sensor housing cracks or gets brittle
-
Internal electronics lose accuracy
-
Reluctor wheel wears down
-
Metal debris causes odd readings
-
Wiring and connectors get old and rusty
Changing your oil and checking the sensor often helps keep it clean and working well.
Electrical or Wiring Issues
Electrical problems are a common reason for camshaft position sensor failure. Wires and connectors can break or get worn out. Loose connectors do not make good contact and send weak signals. Damaged wiring harnesses stop power from reaching the sensor. Blown fuses cut off power completely. Bad grounding makes the sensor work poorly. Water can get into connectors and cause rust. Road salt and chemicals make these problems worse.
Watch for these electrical issues:
-
Wires that are frayed or brittle
-
Connectors that are loose or rusty
-
Wiring harnesses that are damaged
-
Fuses that are blown
-
Bad grounding
-
Water or chemical exposure
If you check wires and connectors often, you can stop many sensor problems.
Oil Leaks and Contamination
Oil leaks from old seals or gaskets can cover the camshaft position sensor with dirt. This layer blocks magnetic signals and causes wrong readings. Oil and dirt can also get into the sensor’s connectors. This leads to poor contact and signal loss. Metal bits from engine wear mess up the sensor’s magnetic field. These problems turn on warning lights and cause engine trouble.
Table: Effects of Oil Leaks and Contamination
| Problem | Effect on Sensor |
|---|---|
| Oil on sensor | Blocks magnetic signals |
| Dirty connectors | Causes poor connectivity |
| Metal shavings | Messes up magnetic field |
| Grime buildup | Leads to odd readings |
Cleaning the sensor and fixing oil leaks helps your engine run better and keeps the sensor working.
What to Do About a Bad Camshaft Position Sensor
Is It Safe to Drive?
You should not drive your car if you think the camshaft position sensor is failing. When this sensor does not work, your engine can stall, lose power, or shake. These problems make driving unsafe. If the check engine light comes on, stop driving and get your car checked. Sudden engine stalling or rough idling can happen at any time. You may also notice jerking or loss of momentum, which can lead to transmission shifting problems. Driving with these issues can damage your car and put you at risk. Always get a professional to check your car before you drive again.
🚨 Timely diagnosis and replacement help prevent bigger problems and keep you safe on the road.
Replacement and Repair Options
If you suspect a bad camshaft position sensor, you have several options. First, use a scan tool to check for trouble codes. Next, inspect the sensor and its wiring for dirt, oil, or damage. Clean the sensor if you see contamination. If the sensor is faulty, replace it as soon as possible. Most camshaft position sensors use Hall effect technology. When you install a new sensor, tighten it carefully so it stays secure. Do not overtighten, as this can damage the sensor. If you are not sure how to replace the sensor, visit a professional auto repair shop. A mechanic can test the sensor output and confirm the problem. Prompt replacement restores engine performance and helps prevent further damage.
Steps to address sensor issues:
-
Get a diagnostic inspection from a professional.
-
Replace the sensor if it is defective.
-
Clean the sensor if needed.
-
Check and repair wires or connectors.
-
Test the sensor output for accuracy.

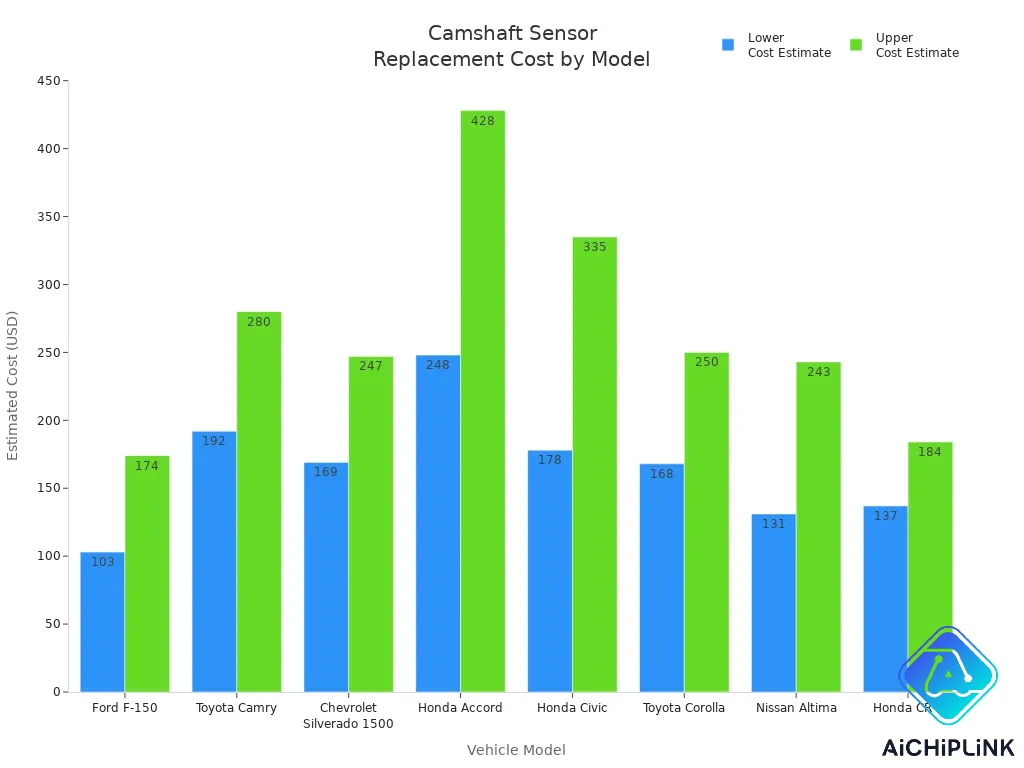

Cost and Time to Fix
Replacing a camshaft position sensor is usually quick and affordable. Parts cost between $30 and $151. Labor charges range from $110 to $174, depending on your car and location. Most repairs take less than an hour, but some cars may need more time. You can do the job yourself if you have the right tools and knowledge. If not, a professional can help. Using high-quality parts and proper installation keeps your engine running smoothly.
| Vehicle Model | Estimated Replacement Cost Range (USD) | Labor Cost Range (USD) | Parts Cost Range (USD) | Replacement Time Estimate |
|---|---|---|---|---|
| General Average | $100 - $312 | $104 - $174 | $30 - $159 | Under 1 hour to a few hours |
| Ford F-150 | $103 - $174 | N/A | N/A | N/A |
| Toyota Camry | $192 - $280 | N/A | N/A | N/A |
| Chevrolet Silverado 1500 | $169 - $247 | N/A | N/A | N/A |
| Honda Accord | $248 - $428 | N/A | N/A | N/A |
| Honda Civic | $178 - $335 | N/A | N/A | N/A |
| Toyota Corolla | $168 - $250 | N/A | N/A | N/A |
| Nissan Altima | $131 - $243 | N/A | N/A | N/A |
| Honda CR-V | $137 - $184 | N/A | N/A | N/A |
Tip: Always confirm the issue with a professional before replacing the sensor. Using OEM or high-quality parts helps your car last longer.
Spotting camshaft position sensor problems early keeps your engine healthy and your drive safe. Using a step-by-step guide helps you:
-
Find the real issue with better accuracy.
-
Stay safe by following clear instructions.
-
Check every part, so nothing gets missed.
-
Make sure repairs last and prevent future trouble.
You can use this guide for simple checks or ask a mechanic if you need help. Fix sensor issues quickly to keep your car running strong. 🚗
FAQ
What happens if you ignore a bad camshaft position sensor?
If you ignore this problem, your engine might stall. The car could run badly and repairs may cost more. The engine can stop working at any time. Other engine parts might get damaged too. Fixing the sensor early keeps your car safe and working well.
Can you replace a camshaft position sensor yourself?
You can change the sensor with simple tools. Always take off the battery cable first. Use your car’s manual to follow each step. If you are not sure, ask a mechanic for help.
How long does a camshaft position sensor last?
Most sensors work for 100,000 miles or longer. Heat, oil leaks, or wiring problems can make them wear out faster. Checking the sensor often helps you find problems early.
Will a bad camshaft sensor always trigger a check engine light?
A bad sensor usually makes the check engine light turn on. Sometimes, the light does not show up right away. If your engine acts strange, scan for trouble codes.
What is the difference between a camshaft and a crankshaft position sensor?
| Camshaft Sensor | Crankshaft Sensor |
|---|---|
| Watches camshaft position | Watches crankshaft position |
| Helps control fuel and spark timing | Helps control ignition timing |
| If it fails, starting is hard or engine stalls | If it fails, engine often will not start |
