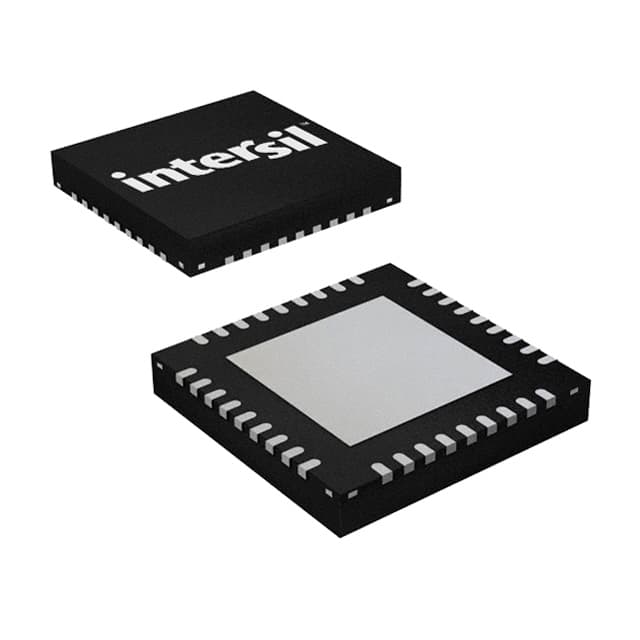

Renesas ZL6105ALAF

Manufacturer No:

ZL6105ALAF

Manufacturer:

Renesas

Package:

QFN

Description:

36 Terminals 36-Pin DC to DC converter IC SWITCHING CONTROLLER 1.4MHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL6105ALAF information

Renesas ZL6105ALAF technical specifications, attributes, parameters and parts with similar specifications to Renesas ZL6105ALAF.

Type
Parameter

Factory Lead Time
9 Weeks

Mount
Surface Mount

Package / Case
QFN

Number of Pins
36

Packaging
Bulk

Published
2004

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
36

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
ALSO OPERATES IN ADJUSTABLE MODE FROM 0.54 TO 5.5V, ALSO OPERATES AS LDO REGULATOR

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
36

Operating Supply Voltage
5V

Input Voltage-Nom
12V

Interface
I2C, SMBus

Analog IC - Other Type
SWITCHING CONTROLLER

Output Configuration
Positive

Current - Output
40A

Quiescent Current
16mA

Frequency (Max)
1.4MHz

Voltage - Output
5.5V

Input Voltage (Min)
3V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1.4MHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Max Duty Cycle
95 %

Duty Cycle (Max)
95 %

Clock Sync
Yes

Number of Output Phases
1

Height
900?m

Length
6mm

Width
6mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas ZL6105ALAF.

Datasheets:

intersil-zl6105alaf-datasheets-9220.pdf

ZL6105ALAF Overview

It comes in the QFN package, which makes switching controller suitable for most applications. Packaging for the pmic consists of Bulk solid enclosures. The switching controller can be switched at 1.4MHz. The switch converters are connected to an analog IC with a SWITCHING CONTROLLER output. There are a QUAD terminal on the switching converters. Different dc switching's functions can be applied to 36 terminations. Some of the control techniques adapted by these dc dc converter ics include PULSE WIDTH MODULATION. DC switcher's voltage input of 12V. In total, switching converter has 36 pins. Switching converter type is specifically Switching Regulator or Controllers. This dc dc voltage regulator should be powered by a voltage of 3V. Power-up and power-down reliability is ensured voltage regulator dc to dc by setting the maximum duty cycle to 95 %. DC switcher's Surface Mount qualifies it for most applications and prototypes. For better satisfaction, the value of DC to DC voltage regulator is ALSO OPERATES IN ADJUSTABLE MODE FROM 0.54 TO 5.5V, ALSO OPERATES AS LDO REGULATOR. For safe and reliable operation in a circuit, voltage regulator dc to dc is suggested that users apply 5V. The temperature should be at least -40°C. DC regulator should run at a temperature 85°C higher than 85°C. As a whole, there are 1 function(s) in the switch converters. Dormant dc switchings use 16mA. Designing voltage regulators switchings with 36 pins is one of the most important aspects of the process. It is possible for the controller to switch at a frequency of 1.4MHz. A 40A input switching controller would benefit from it. When it is working normally, it outputs a value of 5.5V. This controller contains 1 phases.

ZL6105ALAF Features

Switching Frequency: 1.4MHz
PULSE WIDTH MODULATION
Max Duty Cycle: 95 %
ALSO OPERATES IN ADJUSTABLE MODE FROM 0.54 TO 5.5V, ALSO OPERATES AS LDO REGULATOR

ZL6105ALAF Applications

There are a lot of Intersil (Renesas Electronics America)
ZL6105ALAF DC to DC converter applications.

Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
