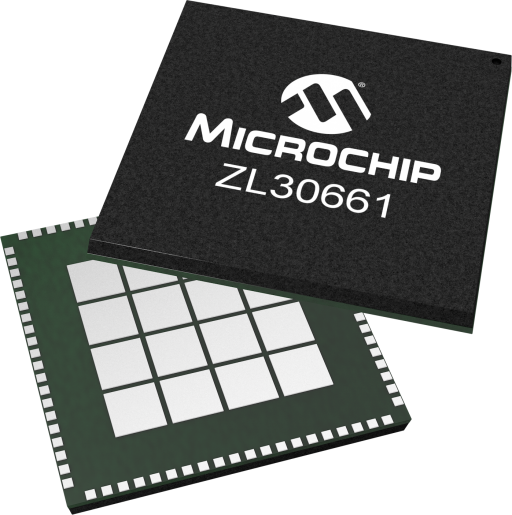

Microchip ZL30661LFG7

Manufacturer No:

ZL30661LFG7

Manufacturer:

Microchip

Package:

Description:

Single Channel Clock Translator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30661LFG7 information

Microchip ZL30661LFG7 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30661LFG7.

Type
Parameter

5G Product
Yes

DataCenter
No

FiveGRAN
Yes

IEEE1588
No

SmartGrids
Yes

SyncE
Yes

Wireline
Yes

Download datasheets and manufacturer documentation for Microchip ZL30661LFG7.

The ZL30661 offers one channel of Synchronous Ethernet (SyncE) packet clock synchronization. Using Microsemi’s miTimePLL timing technology, this device offers new and improved features for 5G transport and wireless infrastructure equipment. Each device integrates all features required by line card PLL. High integration along with ultra-low jitter make these devices ideal for use in frequency translation from backplane clock to frequencies required by PHY devices, jitter filtering, and holdover in case both active and redundant timing cards fail.

Under the same family, the ZL3069x offer one to three channels of Synchronous Ethernet (SyncE) packet clock synchronization for timing card interface. Also available is ZL3079x that support one to three independent timing channels of a combined hardware and software platform including IEEE 1588-2008 Precision Time Protocol Stack and Synchronization Algorithms.

AN3467 Crystals and Oscillators for Next Generation Timing Solutions

ZLAN-649 ZL3067x Power Supply Decoupling and Layout Practices

ZLAN-656 Redwood PSNR

ZLAN-664 Board Design Recommendations for Redwood

ZLAN-672 Generating JESD204B Clock SYSREF Using Redwood

ZLAN-683 Assembly and PCB Layout Guidelines for 80-lead LGA Package

ZLAN-724 Phase Measurement Compensation for Redwood

ZLAN-728 Indirect Read and Write Procedure

One independent DPLL channel

Precise phase/frequency measurement and tuning lower system latency to meet 4G LTE, 5G & Wireless Infrastructure

Precise chip-to-chip time interfaces use less backplane traces for 1PPS distribution for chassis systems

Split oscillator option lowers cost, lowers jitter, and provides redundancy

Excellent jitter performance of <300 fs RMS in the 12 kHz to 20 MHz band meets jitter requirements for 10G/40G and 100G PHYs

Two programmable ultra-low jitter synthesizers generate any frequency from 0.5 Hz to 1045 MHz

One programmable general purpose synthesizer generates any clock from 0.5 Hz to 180 MHz

8 differential or 16 single ended ultra-low jitter outputs plus two general purpose CMOS outputs

Programmable output advancement/delay to accommodate trace delays or compensate for system routing paths

Up to three programmable digital PLLs/NCOs with loop bandwidth from 14 Hz to 470 Hz synchronize to any clock rate from 0.5 Hz to 900 MHz

Accepts up to 10 differential or 10 single ended input references

Full reference monitoring of electrical failures

Automatic hitless reference switching and digital holdover on reference fail with initial holdover accuracy better than 0.1 ppb

Any input reference can be fed with clock, sync (frame pulse), clock /sync pair or clock modulated with sync pulse (embedded PPS ePPS and embedded PP2S ePP2S)

Easy Configuration and dynamic programming via SPI/I2C interface

Factory programming available

Operates from a single crystal resonator or clock oscillator

Line card timing function for carrier network equipment compliant to ITU-T G.8262, G.8273.2, G.8273.4
Communications systems timed by any combination of Synchronous Ethernet, IEEE 1588 PTP, or GPS/GNSS
5G wireless CU, DU, and RU systems
5G systems with precise time requirements driven by advanced services such as carrier aggregation, coordinated multipoint, OTDOA location, etc.
Carrier routers, access aggregation, wireless backhaul,
SONET/SDH systems
