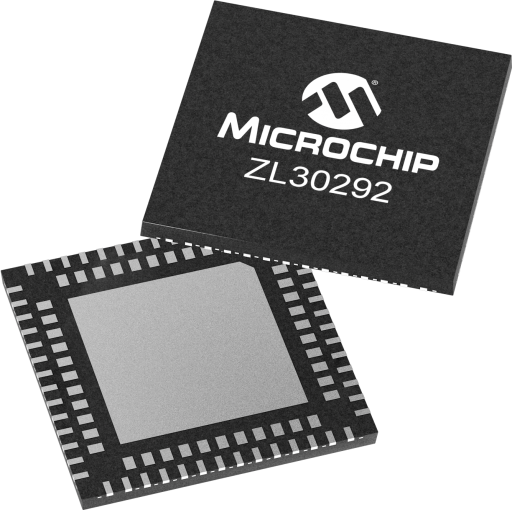

Microchip ZL30292LDG1

Manufacturer No:

ZL30292LDG1

Manufacturer:

Microchip

Package:

Description:

19-Output PCIe Gen 6 and Platform Timing Clock Generator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30292LDG1 information

Microchip ZL30292LDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30292LDG1.

Type
Parameter

# of Outputs
19

Output Frequency Max. (MHz)
100

Output Frequency Min. (MHz)
25

OutputLogic
HCSL

Product Type
Low-Jitter Clock Generators

PullRange
0

Voltage
3.3

Download datasheets and manufacturer documentation for Microchip ZL30292LDG1.

Application Notes:

fb79cce77d4a2ee6e19c2780658c6ca4.pdf

dfd80b5d6ef2a0893dcab45249172cdb.pdf

Data Sheets:

ced9ca0880143cdf25debaa412b0ff9a.pdf

The ZL30292 clock generator delivers leading-edge, ultra-low jitter and PCIe Gen 6 performance for today and tomorrow’s data center applications. Providing up to 19 ultra-low jitter differential outputs, it also has a significant margin to meet PCIe Gen 6 requirements used in single-board, rack-optimized, multi-node and modular server designs.

Additionally, when combining the ZL30292 clock generator with the ZL40292 DB2000 and DB2000Q ZL40294, you can implement a complete Intel reference timing solution that drives additional peripherals, including Solid-State Drives (SSD), Universal Serial Bus (USB) controllers and Serial Advanced Technology Attachment (SATA) devices.

The ZL30292 operates from 3.3V±10% supply to meet PCIe Electromechanical Specification that requires 3.3V supply tolerance of ±9%. Its operation is guaranteed over the industrial temperature range of –40°C to +85°C.

Applications include:

PCIe Gen1/2/3/4/5/6 Clock Generation
Platform Tuning
Intel QPI/UPI
Servers
Storage and Data Centers
Switches and Routers

Fully Compliant with PCIe Gen 1/2/3/4/5/6

Embedded Source Terminations

Platform Time Input and Output Clocks

Ultra-Low Additive Jitter: 80 fs Maximum

Programmable SSC on 100 MHz Outputs

Embedded Low Drop Out (LDO) Voltage Regulator

Provides Superior Power Supply Noise Rejection

Maximum Output-to-Output Skew of 50 ps

SMBus and Side-Band Interface

Supports ±10% Tolerance on Power Supply as per PCIe Electromechanical Specification which Requires ±9%

Seven Dedicated 100 MHz Outputs
Three Dedicated 25 MHz Outputs
Nine Selectable Outputs: 25 MHz or 100 MHz
