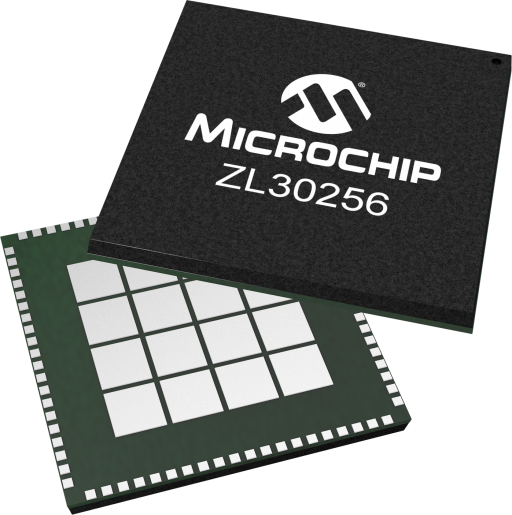

Microchip ZL30256LFG7Q06T

Manufacturer No:

ZL30256LFG7Q06T

Manufacturer:

Microchip

Package:

Description:

3-Channel, 10-Input, 18-Output General Purpose Jitter Attenuator and Frequency Multiplier

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30256LFG7Q06T information

Microchip ZL30256LFG7Q06T technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30256LFG7Q06T.

Type
Parameter

Type
Ultra-Low Jitter

Inputs
5 D/10 SE

CMOS Outputs
18

Low-Jitter Synthesizers
3

Typical Jitter (12kHz-20MHz) fs RMS
180

Diff InputFreq. Range
1 kHz–1045 M

Output Freq Range
1 Hz–1045 M

Download datasheets and manufacturer documentation for Microchip ZL30256LFG7Q06T.

Data Sheets:

ee8e2d279c122aa9de5fe18788939274.pdf

CREATE AND SAMPLE YOUR CUSTOM ZL30256 HERE

The ZL30256 is multi-channel high-performance, any-rate multiplier and jitter attenuator which simplifies board design by generating ultra-low-jitter clock signals from or attenuating clock signals while generating additional independent frequency families. With 3 independent jitter attenuating DPLL channels, the ability to create 5 different frequency families and best-in-class jitter performance, the ZL30256 can create complete clock-trees, improving design reliability, reducing bill of materials (BOM) cost, and simplifying design by replacing multiple PLLs and peripheral timing components.

Up to 3 independent DPLL channels
Excellent jitter performance of 180 fs RMS in 12 kHz to 20 MHz band meets jitter requirements of 10G/40G and 100G PHYs
Two programmable ultra-low jitter synthesizers generate any frequency from 1 Hz to 1045 MHz
One programmable general purpose synthesizer generates any clock from 1Hz to 180 MHz
8 differential or 16 single ended (CMOS) ultra-low jitter outputs plus two general purpose CMOS outputs
Accepts up to 10 LVPECL/LVDS/HCSL/LVCMOS inputs
Any input reference can be fed with clock, sync (frame pulse), clock /sync pair or clock modulated with sync pulse (embedded PPS ePPS and embedded PP2S ePP2S)
Up to four programmable digital PLLs/NCOs with loop bandwidth from 14 Hz to 470 Hz synchronize to any clock rate from 1 kHz to 900 MHz and to clock plus sync pulse
Automatic hitless reference switching and digital holdover on reference fail with initial holdover accuracy better than 1 ppb with post holdover filter
Easy Configuration and dynamic programming via SPI/I2C interface
Operates from a single crystal resonator or clock oscillator
