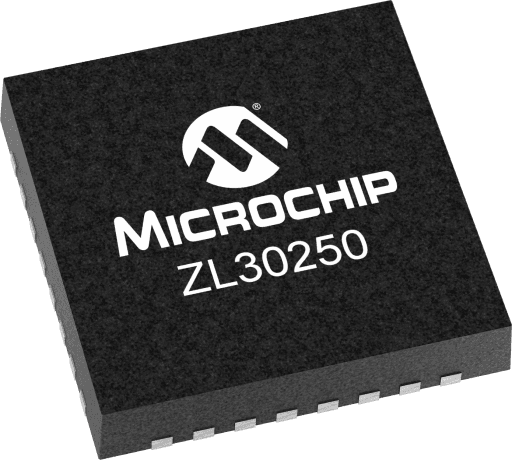

Microchip ZL30250LDG1
Microchip ZL30250LDG1

Microchip ZL30250LDG1

Manufacturer No:

ZL30250LDG1

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

4-Input, 3-Output Any-to-Any CML/CMOS Clock Generator

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30250LDG1 information

Microchip ZL30250LDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30250LDG1.

  • Type
  • Parameter
  • Product Type
  • Low-Jitter Clock Generators
  • # of Outputs
  • 3
  • Voltage
  • 3.3
  • Pull Range (±PPM)
  • 0
  • Output Logic
  • CML, CMOS
  • Output Frequency Min. (MHz)
  • 0.000001
  • Output Frequency Max. (MHz)
  • 1035

Download datasheets and manufacturer documentation for Microchip ZL30250LDG1.

Data Sheets:

Application Notes:

CREATE AND SAMPLE YOUR CUSTOM ZL30250 HERE

The ZL30250 is a flexible, high-performance, clock multiplier/generator. From any input clock frequency 9.72MHz to 1250MHz this device can produce frequency-locked output frequencies from 1Hz to 1035MHz and as many as 3 differential or 6 CMOS output clock signals. The ZL30250 has output jitter of 160fs RMS (12kHz to 20MHz). Automatic self-configuration from external EEPROM allows clock signals to be available immediately after power-up or reset.





  • Four Input Clocks: One crystal/CMOS input, Two differential/CMOS inputs, One single-ended/CMOS input
  • Any input frequency from 9.72MHz to 1250MHz 9.72MHz to 300MHz for CMOS)
  • Clock selection by pin or register control
  • Low-Jitter Fractional-N APLL and 3 Outputs, any output frequency from <1Hz to 1035MHz
  • High-resolution fractional frequency conversion with 0ppm error
  • Easy-to-configure, encapsulated design requires no external VCXO or loop filter components
  • Each output has independent dividers
  • Output jitter as low as 0.16ps RMS (12kHz-20MHz integration band)
  • Outputs are CML or 2xCMOS, can interface to LVDS, LVPECL, HSTL, SSTL and HCSL
  • In 2xCMOS mode, the P and N pins can be different frequencies (e.g. 125MHz and 25MHz)
  • Per-output supply pin with CMOS output voltages from 1.5V to 3.3V
  • Precise output alignment circuitry and per-output phase adjustment
  • Per-output enable/disable and glitch-less start/stop (stop high or low)
  • Automatic self-configuration at power-up from external EEPROM; up to four configs, pin-selectable
  • SPI or I2C processor Interface
  • Numerically controlled oscillator mode
  • Spread-spectrum modulation mode
