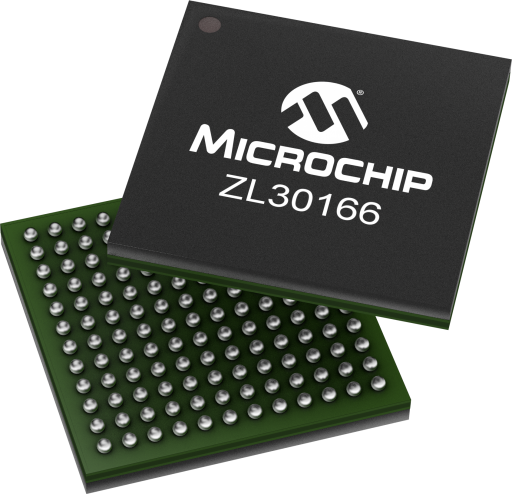

Microchip ZL30166GDG2
Microchip ZL30166GDG2

Microchip ZL30166GDG2

Manufacturer No:

ZL30166GDG2

Manufacturer:

Microchip

Package:

144-BGA

Description:

Triple Channel Precision Clock Translator with Frame Sync Capability

DHL
DHL

In Stock :3780

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

checkAuthentic Components
checkFast Global Shipping
checkESD & IEC Compliance
checkFull Traceability

Shipping & Availability

DHL
EMS
FedEx
UPS

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse
Expected Shipping：Sun, May 17 - Mon, May 18, 2026
Date Code：Within 2 Years

Payment

PayPal
MasterCard
Visa
American Express

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

ZL30166GDG2 Information

Microchip ZL30166GDG2 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30166GDG2.

  • Type
  • Parameter
  • Type
  • Multi-Channel
  • Inputs
  • 9 D/SE + 2 SE
  • CMOS Outputs
  • 8
  • Low-Jitter Synthesizers
  • 4
  • Typical Jitter (12kHz-20MHz) fs RMS
  • 650
  • Diff InputFreq. Range
  • 1 kHz-750 MHz
  • Output Freq Range
  • 1 kHz-750 MHz
  • Type
  • Parameter

Download datasheets and manufacturer documentation for Microchip ZL30166GDG2.

Data Sheets:

The ZL30166 is a triple channel Clock Translator combining three programmable DPLLs / NCOs with four programmable precision synthesizers. Each channel accepts any frequency from 1kHz to 750MHz and generates any frequency from 1Hz to 750MHz to support any communication service over optical networks. For applications that require synchronizing to a 1PPS input, the ZL30166 supports a sync pulse/clock pair feature.  Any of the inputs can be used for a 1PPS signal shared with any other input for a reference frequency.  The output will be synchronized to the input reference and will be phase aligned to the 1PPS input.  This unique feature allows a line card with a crystal to be used for synchronizing to a 1PPS input.  This normally requires a PLL with a 30mHz bandwidth and TCXO.  With very low power consumption, the ZL30166 operates from a single crystal resonator or clock oscillator supporting eight input references configurable as single ended or differential. It provides eight high performance LVPECL outputs and eight high performance LVCMOS outputs.

  • Three Independent clock channels
  • Three programmable digital PLLs/Numerically Controlled Oscillators (NCOs)
  • Programmable synthesizers generate any clock rate from 1 Hz to 750 MHz
  • Programmable digital PLLs synchronizes to any clock rate from 1 kHz to 750 MHz
  • Any input reference can be fed with sync (frame pulse) or clock
  • Programmable DPLLs can synchronize to sync pulse and sync pulse/clock pair
  • Flexible two-stage architecture translates between arbitrary data rates, line coding rates and FEC
  • Digital PLLs filter jitter at 5 Hz, 14 Hz, 28 Hz, 56 Hz, 112 Hz, 224 Hz, 448 Hz or 896 Hz
  • Automatic hitless reference switching and digital holdover on reference fail
  • Reference input:
  • - Eight reference inputs configurable as single ended or differential
  • - LVCMOS (1kHz to 177.5 MHz)
  • - LVDS or LVPECL (1kHz to 750MHz)
  • Any Output Frequency:
  • - configurable for LVDS, LVPECL, LVCMOS
  • - Frequency Range: 1 Hz – 750 MHz
  • - Dynamic Frequency programming
  • Easy Configuration: field programmable via SPI/I2C interface
  • Modes of Operation:
  • - Integer, Fractions or Ratio (FEC support)
  • - Each clock channel can work as either PLL or NCO
  • Reduces BOM Cost and Board Space:
  • - Replaces three devices with single channel PLLs
  • - Package: 13 x 13mm
  • Low Power: < 2W
  • Increases Design efficiency:
  • - Easy programming: SPI/I2C
  • - Up to four unique customer defined default configurations, including input/output frequencies, are available via OTP (One Time Programmable) memory
      • Applications
    • OTN muxponders and transponders
    • 10 Gigabit Line cards
    • Synchronous Ethernet, 10 GBASE-R and 10 GBASE-W
    • SONET/SDH, Fibre channel, XAUI
