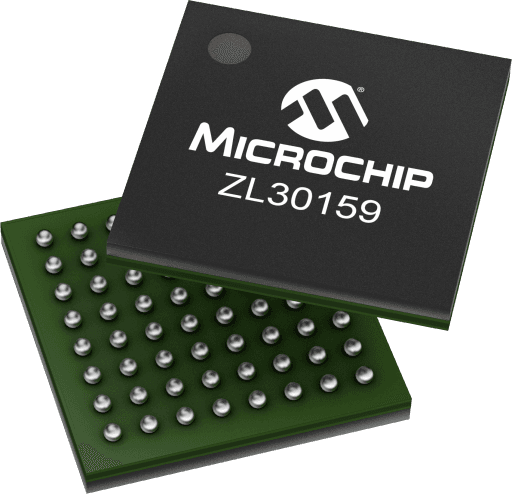

Microchip ZL30159GGG2

Manufacturer No:

ZL30159GGG2

Manufacturer:

Microchip

Package:

64-BGA

Description:

General Purpose Single PLL Clock Rate Converter

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30159GGG2 information

Microchip ZL30159GGG2 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30159GGG2.

Type
Parameter

Type
Single Channel

Inputs
1 XTAL, 1 D

CMOS Outputs
2

Low-Jitter Synthesizers
1

Typical Jitter (12kHz-20MHz) fs RMS
\u003c1000

Diff InputFreq. Range
1 Hz-750 MHz

Output Freq Range
1 Hz-177.5 MHz

Download datasheets and manufacturer documentation for Microchip ZL30159GGG2.

Data Sheets:

40f44019c118fb5d006e6e7a9852afe1.pdf

The ZL30159 single PLL rate converter is part of Microchip's ClockCenter platform and can synchronize to any clock rate from 1 Hz (1pps) to 750 MHz. The conversion from 1pps is especially useful for GPS clock generation to 25MHz or 156.25MHz. The ZL30159 includes a high precision synthesizer that can generate any clock rate from 1Hz to 177.5 MHz with jitter below 1ps.

Precision synthesizer generates any clock-rate from 1 Hz to 177.5 MHz with jitter below 1ps
Programmable digital PLL synchronize to any clock rate from 1 Hz (1 pps) to 750 MHz
Input reference configurable as single ended LVCMOS (up to 177.5 MHz) or differential LVPECL (up to 750 MHz)
Flexible two-stage architecture translates between arbitrary data rates, line coding rates and FEC rates
Programmable Digital PLL loop filter: 30 mHz, 14 Hz, 28 Hz, 56 Hz, 112 Hz, 224 Hz, 448 Hz or 896 Hz
Two LVCMOS outputs —from 1 Hz (1 pps) to 177.5 MHz
Operates from a single crystal resonator or clock oscillator
Customer defined default device configuration, including input/output frequencies, is available via OTP(One Time Programmable) memory
Dynamically configurable via SPI/I2C interface and volatile configuration registers
Applications
• General purpose clock rate translator
• GPS receiver clock synthesizer
