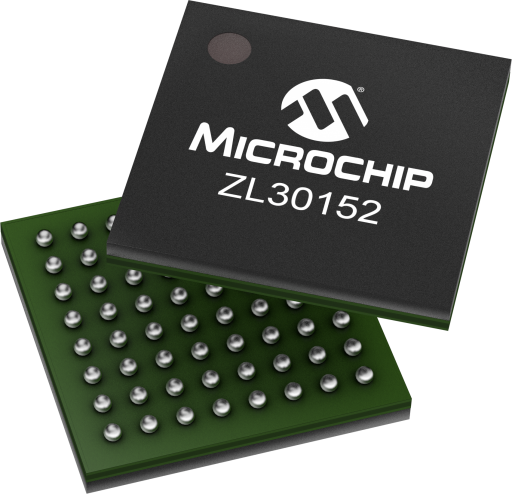

Microchip ZL30152GGG2

Manufacturer No:

ZL30152GGG2

Manufacturer:

Microchip

Package:

64-BGA

Description:

Universal Rate Adapting Synchronous Clock Generator

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30152GGG2 information

Microchip ZL30152GGG2 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30152GGG2.

Type
Parameter

Type
Multi-Channel

Inputs
2 D/SE

CMOS Outputs
2

Low-Jitter Synthesizers
1

Typical Jitter (12kHz-20MHz) fs RMS
700

Diff InputFreq. Range
1 kHz-750 MHz

Output Freq Range
1 kHz-750 MHz

Download datasheets and manufacturer documentation for Microchip ZL30152GGG2.

Data Sheets:

f0b65c15b8ef9426e81c385945e6b1e2.pdf

The ZL30152 Universal Clock Translator, part of Microsemi's ClockCenter platform of Synchronous Clock devices, delivers industry leading synchronization performance for high-speed complex applications. The highly integrated and programmable solution provides translation from any input reference frequency to any output clock frequency with jitter performance that can directly drive 10 G PHY devices.
The ZL30152 accepts 2 single ended or differential input references and generates 6 high performance programmable clock outputs. The highly integrated solution allows designers to replace multiple components with a single chip, simplifying design and reducing component count and power.

Programmable synthesizers generate any clockrate from 1 kHz to 750 MHz

Precision synthesizers generate clocks with jitter below 0.7 ps RMS for 10 G PHYs

Programmable digital PLL synchronize to any clockrate from 1 kHz to 750 MHz

Flexible two-stage architecture translates between arbitrary data rates, line coding rates and FEC rates

Digital PLL filter jitter from 14 Hz, 28 Hz, 56 Hz, 112 Hz, 224 Hz, 448 Hz or 896 Hz

Automatic hitless reference switching and digital holdover on reference fail

Two reference inputs configurable as single ended or differential

Four LVPECL outputs and two LVCMOS outputs

Operates from a single crystal resonator or clock oscillator

Customer defined default device configuration, including input/output frequencies, is available via OTP(One Time Programmable) memory

Dynamically configurable via SPI/I2C

Applications/Uses

- SONET/SDH, OC-192/OC-48
- SONET/SDH with FEC
- 10G Base X, R and W
- 100 BaseX, GE, Fibre channel

- TDM, Telecom Bus, Utopia, SBI
- Rapid-IO, PCI-Express, serial MII, Star Fabric, XAUI
