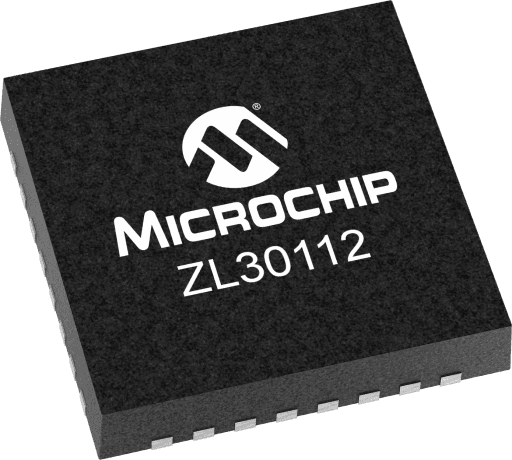

Microchip ZL30112LDG1

Manufacturer No:

ZL30112LDG1

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

SLIC/CODEC PLL

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30112LDG1 information

Microchip ZL30112LDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30112LDG1.

Type
Parameter

Type
General Purpose

Inputs
1

CMOS Outputs
2

Low-Jitter Synthesizers
0

Typical Jitter (12kHz-20MHz) fs RMS
\u003c600

Diff InputFreq. Range
8 kHz, 2.048 MHz, 8.192 MHz or 19.44 MHz input

Output Freq Range
8.192 MHz

Download datasheets and manufacturer documentation for Microchip ZL30112LDG1.

Data Sheets:

326998e74c215a0a2da78bc1ecc8e239.pdf

The ZL30100 T1/E1 System Synchronizer contains a digital phase-locked loop (DPLL), which provides timing and synchronization for multi-trunk T1 and E1 transmission equipment.
The ZL30100 generates ST-BUS and other TDM clock and framing signals that are phase locked to one of two input references. It helps ensure system reliability by monitoring its references for accuracy and stability and by maintaining stable output clocks during reference switching operations and during short periods when a reference is unavailable.
The ZL30100 is intended to be the central timing and synchronization resource for network equipment that complies with Telcordia, ETSI, ITU-T and ANSI network specifications.

Synchronizes to 8 kHz, 2.048 MHz, 8.192 MHz or 19.44 MHz input
Provides 2.048 MHz and 8.192 MHz output clocks and an 8 kHz framing pulse
Automatic entry and exit from freerun mode on reference fail
Provides DPLL lock and reference fail indication
DPLL bandwidth of 29 Hz for all rates of input references
Less than 0.6 nsecpp intrinsic jitter on all output clocks
20 MHz external master clock source: clock oscillator or crystal
Simple hardware control interface
