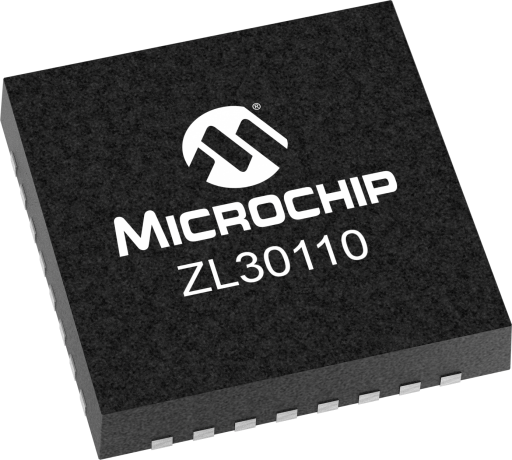

Microchip ZL30110LDG1

Manufacturer No:

ZL30110LDG1

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

Telecom Rate Conversion DPLL

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30110LDG1 information

Microchip ZL30110LDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30110LDG1.

Type
Parameter

Type
General Purpose

Inputs
1

CMOS Outputs
9

Low-Jitter Synthesizers
0

Typical Jitter (12kHz-20MHz) fs RMS
\u003c5000

Diff InputFreq. Range
8 kHz, 2.048 MHz, 8.192 MHz or 16.384 MHz

Output Freq Range
65.536 MHz

Download datasheets and manufacturer documentation for Microchip ZL30110LDG1.

Data Sheets:

f0c7d455b18ee1c6211a0ef1d92661b1.pdf

The ZL30110 clock rate conversion digital phase-locked loop (DPLL) provides accurate and reliable frequency conversion. The ZL30110 generates a range of clocks that are either locked to the input reference or locked to the external crystal or oscillator. In the locked mode, the reference input is continuously monitored for a failure condition. In the event of a failure, the DPLL continues to provide a stable free running clock ensuring system reliability.

Synchronizes to 8 kHz, 2.048 MHz, 8.192 MHz or 16.384 MHz

Provides DPLL lock and reference fail indication

Automatic free run mode on reference fail

DPLL bandwidth of 922 Hz for all rates of input reference and 58 Hz for an 8 kHz input reference

Less than 5 psecrmson 25 MHz outputs, and less than 0.6 nsppintrinsic jitter on the all other outputs

Minimal input to output and output to output skew

25 MHz external master clock source: clock oscillator or crystal

Simple hardware control interface

65.536 MHz TDM clock locked to the input reference
General purpose 25 MHz fan-out to 6 outputs locked to the external crystal or oscillator
General purpose 125 MHz and 66 MHz or 100 MHz locked to the external crystal or oscillator
