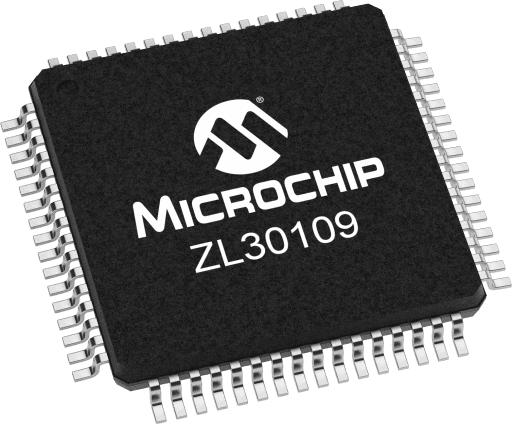

Microchip ZL30109QDG1

Manufacturer No:

ZL30109QDG1

Manufacturer:

Microchip

Package:

64-TQFP

Description:

DS1/E1 System Synchronizer with 19.44 MHz Output

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL30109QDG1 information

Microchip ZL30109QDG1 technical specifications, attributes, parameters and parts with similar specifications to Microchip ZL30109QDG1.

Type
Parameter

Type
General Purpose

Inputs
2

CMOS Outputs
10

Low-Jitter Synthesizers
0

Typical Jitter (12kHz-20MHz) fs RMS
up to OC-3/ STM-1

Diff InputFreq. Range
2 kHz, 8 kHz, 1.544 MHz, 2.048 MHz, 8.192 MHz, 16.384 MHz or 19.44 MHz

Output Freq Range
65.536 MHz

Download datasheets and manufacturer documentation for Microchip ZL30109QDG1.

Data Sheets:

ce9355597bf2b1bf71408cca60fadb0f.pdf

The ZL30109 DS1/E1 System Synchronizer contains a digital phase-locked loop (DPLL), which provides timing and synchronization for multi-trunk DS1 and E1 transmission equipment. The 19.44 MHz output makes the ZL30109 also suitable for SDH line card applications.

Supports Telcordia GR-1244-CORE Stratum 4 and Stratum 4E
Supports ITU-T G.823 and G.824 for 2048 kbit/s and 1544 kbit/s interfaces
Supports ANSI T1.403 and ETSI ETS 300 011 for ISDN primary rate interfaces
Simple hardware control interface
Accepts two input references and synchronizes to any combination of 2 kHz, 8 kHz, 1.544 MHz, 2.048 MHz, 8.192 MHz, 16.384 MHz or 19.44 MHz inputs
Provides a range of clock outputs: 1.544 MHz, 2.048 MHz, 16.384 MHz, 19.44 MHz and either 4.096 MHz and 8.192 MHz or 32.768 MHz and 65.536 MHz
Provides 5 styles of 8 kHz framing pulses and a 2 kHz multi-frame pulse
Holdover frequency accuracy of 1.5 x 10-7
Lock, Holdover and selectable Out of Range indication
Selectable loop filter bandwidth of 1.8 Hz or 922 Hz
Less than 24 psrms intrinsic jitter on the 19.44 MHz output clock, compliant with OC-3 and STM-1 jitter specifications
Less than 0.6 nspp intrinsic jitter on all output clocks
External master clock source: clock oscillator or crystal
