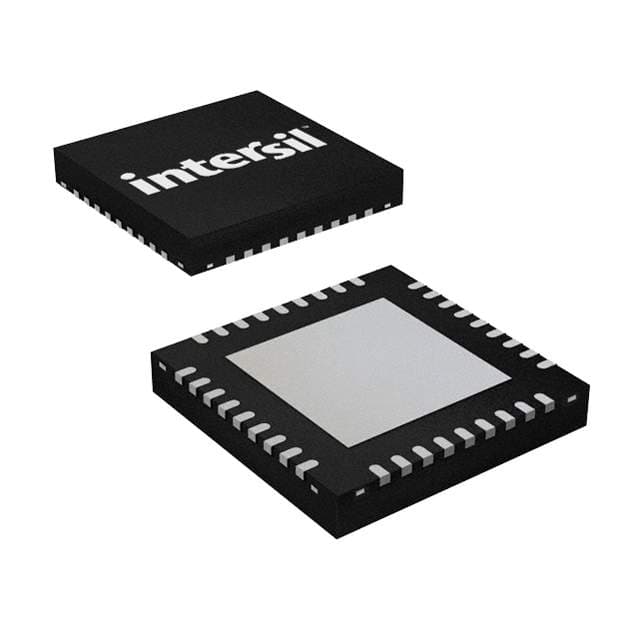

Renesas ZL2106ALCNT

Manufacturer No:

ZL2106ALCNT

Manufacturer:

Renesas

Package:

QFN

Description:

36 Terminals DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 1MHz Tape & Reel (TR) 6A QFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL2106ALCNT information

Renesas ZL2106ALCNT technical specifications, attributes, parameters and parts with similar specifications to Renesas ZL2106ALCNT.

Type
Parameter

Mount
Surface Mount

Package / Case
QFN

Packaging
Tape & Reel (TR)

Published
2004

JESD-609 Code
e3

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
36

ECCN Code
EAR99

Terminal Finish
MATTE TIN

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Switching Regulator or Controllers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

JESD-30 Code
S-PQCC-N36

Number of Outputs
1

Qualification Status
Not Qualified

Output Voltage
7V

Output Type
Adjustable

Temperature Grade
INDUSTRIAL

Analog IC - Other Type
SWITCHING REGULATOR

Current - Output
6A

Voltage - Output
5.5V

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Frequency - Switching
1MHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Switcher Configuration
BUCK

Length
6mm

Height Seated (Max)
0.95mm

Width
6mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ZL2106ALCNT.

Datasheets:

intersil-zl2106alcnt-datasheets-0653.pdf

ZL2106ALCNT Overview

There is an optimized performance in this voltage regulator because it utilizes the Tape & Reel (TR) package. This harley voltage regulator has 36 terminations. This regulator voltage is equipped with a type of analog integrated circuit that is called a SWITCHING REGULATOR voltage regulator. Due to DC DC switching regulator's space saving design, this voltage regulator is available in a QFN package. In this case, DC DC switching regulator has 1 outputs configured to it. DC DC switching regulators like this one generate Adjustable outputs on their output pins to handle the power management. A DC-DC switching regulator of this type operates at a switching frequency of 1MHz. As a result of the 6A output current, voltage regulator offers maximum flexibility in design. Its 260 peak reflow temperature makes this regulator essentially indestructible. An input voltage of 12V is required for switching regulator operation. DC DC switching regulator is part of the Switching Regulator or Controllers subcategory and can be found in the Switching Regulator or Controllers category. A voltage of 7V volts can be produced by voltage regulator. Stable operation of switching regulator is ensured by the high maximum operating temperature 85°C. Ensures reliability by operating at aDC DC switching regulator's minimum temperature of -40°C. The switching regulator allows an input voltage of 4.5V as a minimum. It is capable of producing 5.5V voltage of adjusting voltage regulator.
