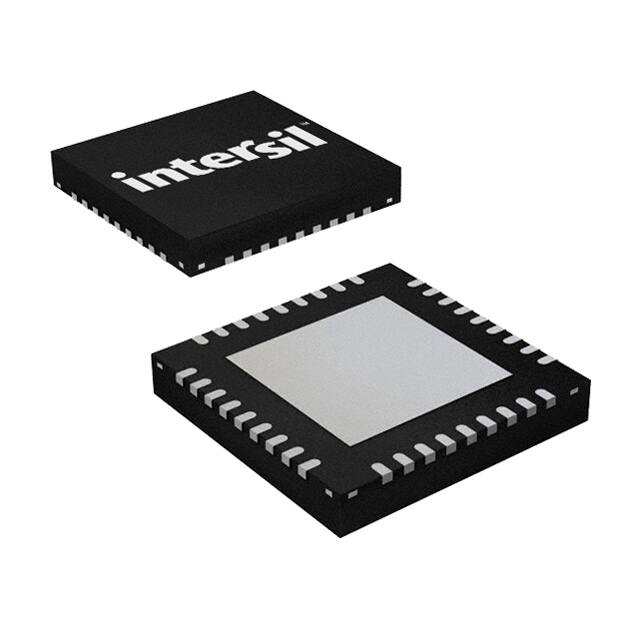

Renesas ZL2008ALBFT

Manufacturer No:

ZL2008ALBFT

Manufacturer:

Renesas

Package:

36-VFQFN Exposed Pad

Description:

36 Terminals 3V~5.5V ZL2008 DC to DC converter IC SWITCHING CONTROLLER 1 Outputs 200kHz~1.4MHz Transistor Driver

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZL2008ALBFT information

Renesas ZL2008ALBFT technical specifications, attributes, parameters and parts with similar specifications to Renesas ZL2008ALBFT.

Type
Parameter

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
36-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
36

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Additional Feature
0.54 V TO 5.5 V OUTPUT RANGE

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
ZL2008

JESD-30 Code
S-PQCC-N36

Function
Step-Down

Number of Outputs
1

Output Type
Transistor Driver

Input Voltage-Nom
12V

Output Configuration
Positive

Voltage - Supply (Vcc/Vdd)
3V~5.5V

Control Features
Current Limit, Enable, Power Good, Soft Start

Input Voltage (Min)
3V

Topology
Buck

Control Mode
VOLTAGE-MODE

Frequency - Switching
200kHz~1.4MHz

Control Technique
PULSE WIDTH MODULATION

Synchronous Rectifier
Yes

Duty Cycle (Max)
95%

Serial Interfaces
I2C, PMBus, SMBus

Length
6mm

Width
6mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas ZL2008ALBFT.

Datasheets:

renesaselectronicsamericainc-zl2008albft-datasheets-9666.pdf

ZL2008ALBFT Overview

Capsuled in the 36-VFQFN Exposed Pad package, the switching controller suits most application needs. The dc motor controller is adquate to generate for 1 outputs. The pmic is packaged in Tape & Reel (TR) solid enclosure. It is capable of dealing with Transistor Driver dc switching's output (s). dc switching'sThe supply and operating voltage of the dc control are 3V~5.5V. Qualified to work in a -40°C~85°C TA dc switcher. This switching controller can switch at 200kHz~1.4MHz. Surface Mount makes it suitable for general dc dc regulator. The dcdc regulator features Current Limit, Enable, Power Good, Soft Start for efficient switching control. The switch converters are connected to a SWITCHING CONTROLLER analog IC. Terminal (s) of the switching converters are designed at the QUAD position. 36 terminations with a variety of function. To name a few of the control techniques these dc dc converter ics adapt, it includes PULSE WIDTH MODULATION. 12V nominal DC switcher's voltage input. Other relevant dc to dc converter ics can be found by searching "ZL2008". The minimum input voltage of the dc dc voltage regulator should be 3V. DC to DC voltage regulator has a value of 0.54 V TO 5.5 V OUTPUT RANGE to better satisfy the need.

ZL2008ALBFT Features

Transistor Driver Outputs
Switching Frequency: 200kHz~1.4MHz
Current Limit, Enable, Power Good, Soft Start
PULSE WIDTH MODULATION
0.54 V TO 5.5 V OUTPUT RANGE

ZL2008ALBFT Applications

There are a lot of Renesas Electronics America Inc.
ZL2008ALBFT DC to DC converter applications.

CNC system
Servo drive system
Digital display device
Linear guide
Ball screw pair
Computer application technology
Network technology
Automation technology
CMM
Various precision measuring instruments
