Diodes ZHCS400TA
Diodes ZHCS400TA

Diodes ZHCS400TA

Manufacturer No:

ZHCS400TA

Manufacturer:

Diodes

Package:

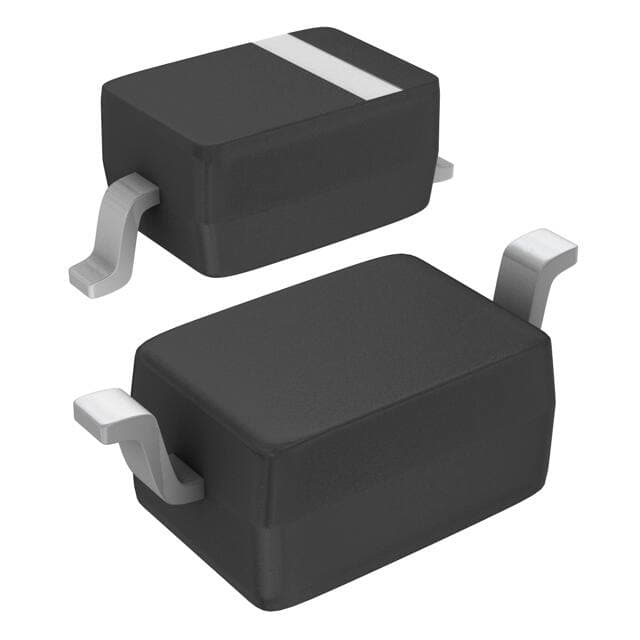

SC-76, SOD-323

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 500mV @ 400mA 40?A @ 30V 2-Termination Tape & Reel (TR) SC-76, SOD-323 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ZHCS400TA information

Diodes ZHCS400TA technical specifications, attributes, parameters and parts with similar specifications to Diodes ZHCS400TA.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SC-76, SOD-323
  • Number of Pins
  • 2
  • Weight
  • 4.904468mg
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 1999
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • HTS Code
  • 8541.10.00.70
  • Capacitance
  • 20pF
  • Subcategory
  • Rectifier Diodes
  • Power Rating
  • 250mW
  • Voltage - Rated DC
  • 40V
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Current Rating
  • 400mA
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • ZHCS400
  • Pin Count
  • 2
  • Reference Standard
  • AEC-Q101
  • Number of Elements
  • 1
  • Polarity
  • Standard
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 40?A @ 30V
  • Power Dissipation
  • 250mW
  • Output Current
  • 400mA
  • Voltage - Forward (Vf) (Max) @ If
  • 500mV @ 400mA
  • Forward Current
  • 400mA
  • Current - Average Rectified (Io)
  • 400mA DC
  • Forward Voltage
  • 1.05V
  • Max Reverse Voltage (DC)
  • 40V
  • Average Rectified Current
  • 400mA
  • Peak Reverse Current
  • 15?A

Download datasheets and manufacturer documentation for Diodes ZHCS400TA.

Datasheets:

Environmental Information:

PCN Assembly/Origin:

ZHCS400TA Overview


Its power rating is 250mW, which is usually given in watts for real power and volt-amperes for apparent power.40V is a reasonable reverse voltage.There is an average rectified current of 400mA volts for this device.This electronic or electrical device produces 250mW heat as an unwanted derivative of its primary action.The allowable value of forward current reaches 400mA.Electronic or electrical devices produce the least amount of 250mW heat (energy loss).Its current rating is 400mA, which is the maximum current that a fuse will carry for an indefinite period without too much deterioration of the fuse element. Depending on the capacitance, the device can deliver a value of 20pF.In the datasheets, the peak reverse is 15?A, as indicated by the data chart.

ZHCS400TA Features


an average rectified current of 400mA volts
the least amount of 250mW heat (energy loss)
a current rating of 400mA
the peak reverse is 15?A


ZHCS400TA Applications


There are a lot of Diodes Incorporated
ZHCS400TA applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
