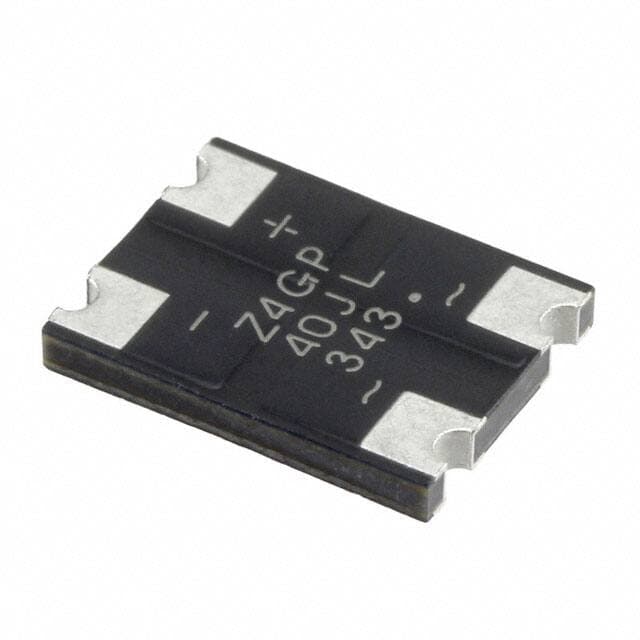

Comchip Technology Z4DGP406L-HF
Comchip Technology Z4DGP406L-HF

Comchip Technology Z4DGP406L-HF

Manufacturer No:

Z4DGP406L-HF

Manufacturer:

Comchip Technology

Package:

Z4-D

Description:

Single Phase Bridge Rectifier Standard Surface Mount -55°C~175°C TJ 5?A @ 600V 950mV @ 4A 4-Termination 1-Phase Z4-D Tape & Reel (TR)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

Z4DGP406L-HF information

Comchip Technology Z4DGP406L-HF technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology Z4DGP406L-HF.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Z4-D
  • Diode Element Material
  • SILICON
  • Operating Temperature
  • -55°C~175°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • Terminal Finish
  • Tin (Sn)
  • Additional Feature
  • LOW POWER LOSS
  • HTS Code
  • 8541.10.00.80
  • Technology
  • Standard
  • Terminal Position
  • DUAL
  • Terminal Form
  • NO LEAD
  • JESD-30 Code
  • R-PDSO-N4
  • Number of Elements
  • 4
  • Configuration
  • BRIDGE, 4 ELEMENTS
  • Diode Type
  • Single Phase
  • Current - Reverse Leakage @ Vr
  • 5?A @ 600V
  • Voltage - Forward (Vf) (Max) @ If
  • 950mV @ 4A
  • Max Surge Current
  • 150A
  • Output Current-Max
  • 4A
  • Current - Average Rectified (Io)
  • 4A
  • Number of Phases
  • 1
  • Voltage - Peak Reverse (Max)
  • 600V
  • Height
  • 1.55mm
  • Length
  • 10.6mm
  • Width
  • 8.2mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Comchip Technology Z4DGP406L-HF.

Datasheets:

Z4DGP406L-HF Overview


A Z4-D package electronic component is basically a type of electronic component.The reverse leakage current must be monitored and should not exceed 0 volts.Mounting method of the device is Surface Mount.Keeping the temperature at -55°C~175°C TJ ensures normal operation.Its maximum output voltage is 4A.Current surges should be monitored and not exceeded.
