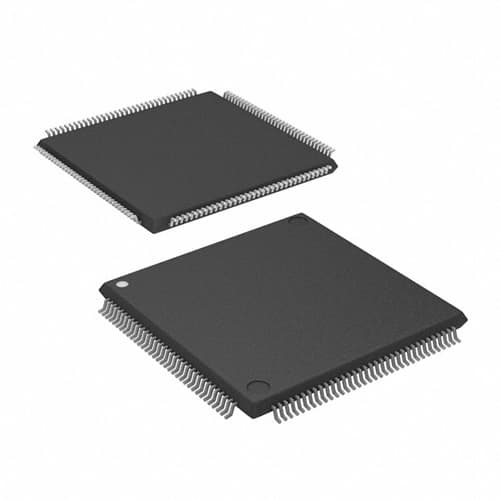

MAXLINEAR XR17D154CV

Manufacturer No:

XR17D154CV

Manufacturer:

MAXLINEAR

Package:

LQFP

Description:

5V V 1.6mm mm 20mm mm Interface - UARTs (Universal Asynchronous Receiver Transmitter) 20mm mm CMOS 144 NOT SPECIFIED 144

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XR17D154CV information

MAXLINEAR XR17D154CV technical specifications, attributes, parameters and parts with similar specifications to MAXLINEAR XR17D154CV.

Type
Parameter

Mount
Surface Mount

Package / Case
LQFP

Number of Pins
144

JESD-609 Code
e0

Number of Terminations
144

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Serial IO/Communication Controllers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
144

Qualification Status
Not Qualified

Power Supplies
3.3/5V

Temperature Grade
COMMERCIAL

Number of Channels
4

Max Supply Voltage
5.5V

Min Supply Voltage
3V

Nominal Supply Current
4mA

Clock Frequency
50MHz

Data Rate
6.25 Mbps

Address Bus Width
32

Boundary Scan
NO

Low Power Mode
YES

External Data Bus Width
32

Number of Serial I/Os
4

Bus Compatibility
PCI

Data Transfer Rate-Max
0.78125 MBps

Communication Protocol
ASYNC, BIT

Data Encoding/Decoding Method
NRZ

Length
20mm

Height Seated (Max)
1.6mm

Width
20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MAXLINEAR XR17D154CV.

XR17D154CV Overview

There is a cost-effective LQFP package available for this product.The transmission of data takes place over 4 channels.The type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL is used to identify the uPs/uCs/Peripheral ICs on the board.Configuration of this device involves 144 terminations.For its operation, it requires a supply voltage of 5V.Data is communicated via 4 serial I/Os.Electronic devices such as this are known as 144-pin integrated circuits.There is 50MHz clock frequency measured on this IC.In light of numerous similarities, it is included in the subcategory of Serial IO/Communication Controllers.UART is recommended that the operating temperature does not exceed 0°C to ensure long-term, normal performance.Ideally, the operating temperature should not exceed 70°C in order to ensure long-term performance.The configuration of this device is based on the 144 pins.The mount is done using Surface Mount.UART is possible to ensure reliabilUARTy when the supply voltage is kept below 5.5V.When the supply voltage is kept above 3V, reliability can be ensured.When power supplies are provided of 3.3/5V, it is reliable and efficient for electronic designers.

XR17D154CV Features

4 serial I/Os
Clock frequency of 50MHz
Power supplies of 3.3/5V

XR17D154CV Applications

There are a lot of Exar Corporation
XR17D154CV UARTs applications.

Battery Operated Electronics
Handheld Terminal
Personal Digital Assistants
Cellular Phones DataPort
Wireless Infrared Data Communications Systems
Handheld Terminals and Tablets
Handheld Computers
Wireless Portable Point-of-Sale Terminals
GPS Devices
Personal Digital Assistants Modules
