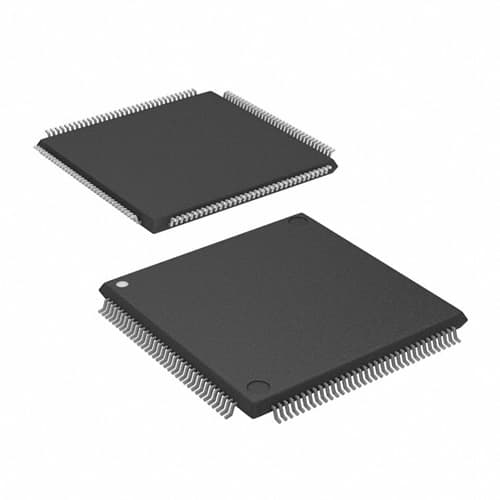

MAXLINEAR XR17C154IV

Manufacturer No:

XR17C154IV

Manufacturer:

MAXLINEAR

Package:

LQFP

Description:

5V V 1.6mm mm 20mm mm 85°C °C Interface - UARTs (Universal Asynchronous Receiver Transmitter) 20mm mm CMOS 144 NOT SPECIFIED 144

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XR17C154IV information

MAXLINEAR XR17C154IV technical specifications, attributes, parameters and parts with similar specifications to MAXLINEAR XR17C154IV.

Type
Parameter

Mount
Surface Mount

Package / Case
LQFP

Number of Pins
144

JESD-609 Code
e0

Number of Terminations
144

Terminal Finish
Tin/Lead (Sn/Pb)

Additional Feature
ALSO OPERATES AT 3.3 V SUPPLY

HTS Code
8542.31.00.01

Subcategory
Serial IO/Communication Controllers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
5V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
144

Qualification Status
Not Qualified

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Power Supplies
3.3/5V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
5.5V

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Address Bus Width
32

Boundary Scan
NO

Low Power Mode
YES

External Data Bus Width
32

Number of Serial I/Os
4

Bus Compatibility
PCI

Data Transfer Rate-Max
0.78125 MBps

Communication Protocol
ASYNC, BIT

Data Encoding/Decoding Method
NRZ

Length
20mm

Height Seated (Max)
1.6mm

Width
20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for MAXLINEAR XR17C154IV.

XR17C154IV Overview

This product is available in a cost-effective package called LQFP.The type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL is used for the uPs, uCs, and peripheral ICs on the board.The configuration of this device includes 144 terminations.For its operation, a voltage of 5V is provided as the supply voltage.There are 4 serial I/Os available for communication of data.The electronic device is a type of integrated circuit with a pin count of 144.There is a 50MHz clock frequency for this IC.UART is included under the subcategory of Serial IO/Communication Controllers as a result of a series of similarUARTies between UART and other similar entUARTies.The configuration relies on the 144 pins.Surface Mount is the method used to mount it.The device is capable of operating at a maximum temperature of 85°C.Keeping the supply voltage below 5.5V can ensure that reliability will be preserved in the system.If the power supply is set to 3.3/5V, it is reliable and efficient for electronic designers.Further to this, it has also been demonstrated to be able to perform ALSO OPERATES AT 3.3 V SUPPLY.At a minimum temperature of -40°C, it is capable of operating.

XR17C154IV Features

4 serial I/Os
Clock frequency of 50MHz
Power supplies of 3.3/5V
ALSO OPERATES AT 3.3 V SUPPLY

XR17C154IV Applications

There are a lot of Exar Corporation
XR17C154IV UARTs applications.

Personal Digital Assistants
Cellular Phones DataPort
Wireless Infrared Data Communications Systems
Handheld Terminals and Tablets
Handheld Computers
Wireless Portable Point-of-Sale Terminals
GPS Devices
Personal Digital Assistants Modules
Battery Operated Instruments
Multimedia Systems
