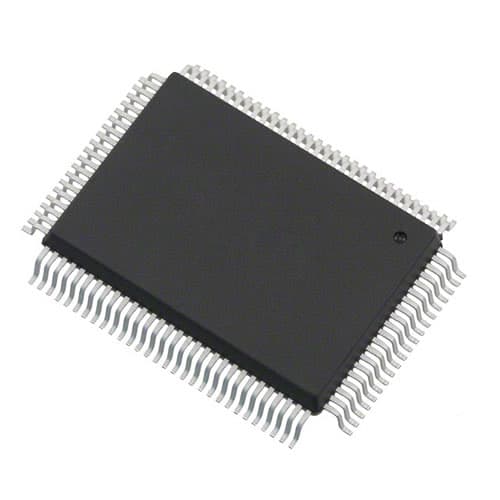

MAXLINEAR XR16V654IQ-F
MAXLINEAR XR16V654IQ-F

MAXLINEAR XR16V654IQ-F

Manufacturer No:

XR16V654IQ-F

Manufacturer:

MAXLINEAR

Package:

QFP

Description:

3.3V V 3.4mm mm 14mm mm 85°C °C Interface - UARTs (Universal Asynchronous Receiver Transmitter) 20mm mm CMOS 100 260 100

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XR16V654IQ-F information

MAXLINEAR XR16V654IQ-F technical specifications, attributes, parameters and parts with similar specifications to MAXLINEAR XR16V654IQ-F.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Package / Case
  • QFP
  • Number of Pins
  • 100
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Number of Terminations
  • 100
  • Terminal Finish
  • Matte Tin (Sn)
  • Additional Feature
  • ALSO OPERATES AT 2.5V SUPPLY @ 50MHZ
  • HTS Code
  • 8542.31.00.01
  • Subcategory
  • Serial IO/Communication Controllers
  • Technology
  • CMOS
  • Terminal Position
  • QUAD
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 3.3V
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Pin Count
  • 100
  • Qualification Status
  • Not Qualified
  • Operating Temperature (Max)
  • 85°C
  • Operating Temperature (Min)
  • -40°C
  • Supply Voltage-Max (Vsup)
  • 3.63V
  • Power Supplies
  • 2.5/3.3V
  • Temperature Grade
  • INDUSTRIAL
  • uPs/uCs/Peripheral ICs Type
  • SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
  • Clock Frequency
  • 64MHz
  • Address Bus Width
  • 3
  • Boundary Scan
  • NO
  • Low Power Mode
  • YES
  • External Data Bus Width
  • 8
  • Number of Serial I/Os
  • 4
  • Data Transfer Rate-Max
  • 2 MBps
  • Communication Protocol
  • ASYNC, BIT
  • Length
  • 20mm
  • Height Seated (Max)
  • 3.4mm
  • Width
  • 14mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for MAXLINEAR XR16V654IQ-F.

XR16V654IQ-F Overview


The package QFP offers the best value.As its uP/uC/Peripheral ICs type, SERIAL IO/COMMUNICATION CONTROLLER, SERIAL is used.In its configuration, 100 terminations are used.In order to operate it, a supply voltage of 3.3V is required.As a means of transferring data, there are 4 serial I/Os.In this case, the electronic device is a type of integrated circuit with 100 pins.This IC measures its clock frequency at 64MHz.This item is classified as Serial IO/Communication Controllers due to a number of similarities.The 100 pins form the basis for its configuration.Using Surface Mount, it is mounted.Temperatures as high as 85°C can be reached by the device.The use of 2.5/3.3V power supplies is efficient and reliable for electronic designers.Additionally, it can perform ALSO OPERATES AT 2.5V SUPPLY @ 50MHZ.A minimum operating temperature of -40°C is possible.In order to maintain normal operation, the supply voltage should be kept below 3.63V.The supply voltage should be maintained above 2.97V for normal operation.

XR16V654IQ-F Features


4 serial I/Os
Clock frequency of 64MHz
Power supplies of 2.5/3.3V
ALSO OPERATES AT 2.5V SUPPLY @ 50MHZ


XR16V654IQ-F Applications


There are a lot of Exar Corporation
XR16V654IQ-F UARTs applications.


  • Cellular data devices
  • Industrial computing
  • Communications equipment
  • White goods
  • Battery Operated Electronics
  • Handheld Terminal
  • Personal Digital Assistants
  • Cellular Phones DataPort
  • Wireless Infrared Data Communications Systems
  • Handheld Terminals and Tablets
