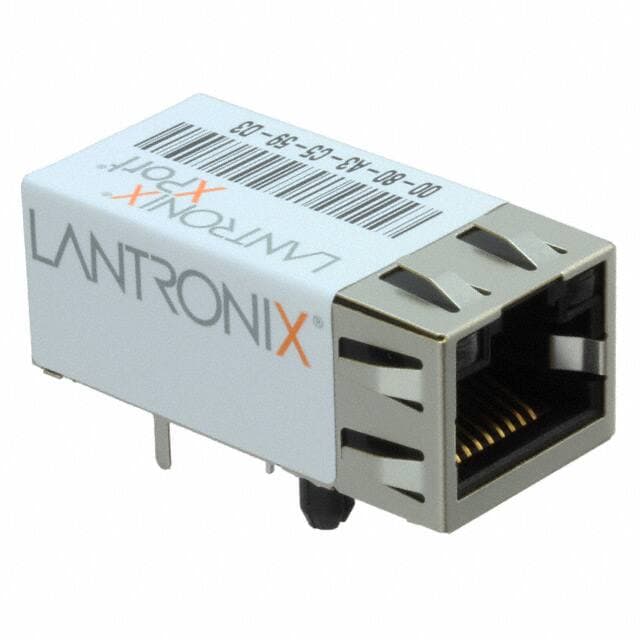

Lantronix XP1001000M-05R

Manufacturer No:

XP1001000M-05R

Manufacturer:

Lantronix

Package:

Module

Description:

MPU Core DSTni-EX 0.57 x 0.72 14.5mmx18.3mm -40°C~85°C 512KB RJ45 XPort® 256KB 25MHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XP1001000M-05R information

Lantronix XP1001000M-05R technical specifications, attributes, parameters and parts with similar specifications to Lantronix XP1001000M-05R.

Type
Parameter

Factory Lead Time
6 Weeks

Package / Case
Module

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
XPort®

Published
2011

Size / Dimension
0.57 x 0.72 14.5mmx18.3mm

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Connector Type
RJ45

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Operating Supply Voltage
3.3V

Interface
Ethernet

Speed
25MHz

RAM Size
256KB

Core Processor
DSTni-EX

Data Rate
921.6 kbps

Module/Board Type
MPU Core

Flash Size
512KB

Co-Processor
XPort AR

Height
13.5mm

Length
33.9mm

Width
16.25mm

Download datasheets and manufacturer documentation for Lantronix XP1001000M-05R.

Datasheets:

lantronixinc-xp100200005r-datasheets-2493.pdf

lantronixinc-xp100200005r-datasheets-2492.pdf

lantronixinc-xp100200005r-datasheets-2494.pdf

XP1001000M-05R Overview

MPU Core is the type of module or board that is used in this microcontroller.Microprocessor chip is powered by a processor with a total of DSTni-EX cores in it.It is default for the microcontroller to set the mode to -40°C~85°C.There is a flash size 512KB on the MCU electronics.In this case, the connector type is RJ45.There are two versions of this microcontrollers in the XPort® Series.This is done to make sure that the software is able to run normally and that the RAM size is reduced to 256KB.In this MCU chip, the speed is set to 25MHz.The package has the Module extension.As of right now, 85°C is the maximum operational temperature at this time.Microprocessor should be warmer than -40°C when microprocessor is operating.An Intel XPort AR Core Processor is at the heart of this MCUs.This microcontrollers operates on a 3.3V volt supply which is the voltage of the operating supply.The product is packaged in a Bulk-size package.

XP1001000M-05R Features

Core processor of DSTni-EX
Flash size of 512KB
Speed of 25MHz
Bulk packaging

XP1001000M-05R Applications

There are a lot of Lantronix, Inc.
XP1001000M-05R Microcontroller, Microprocessor, FPGA Modules applications.

Industrial Control
Process Control
Process Monitoring
Healthcare Monitoring
Patient Monitoring
IoT Secure Gateways
Human Machine Interface
Human Machine Control Panel
Home and Building Automation
Thermostat
