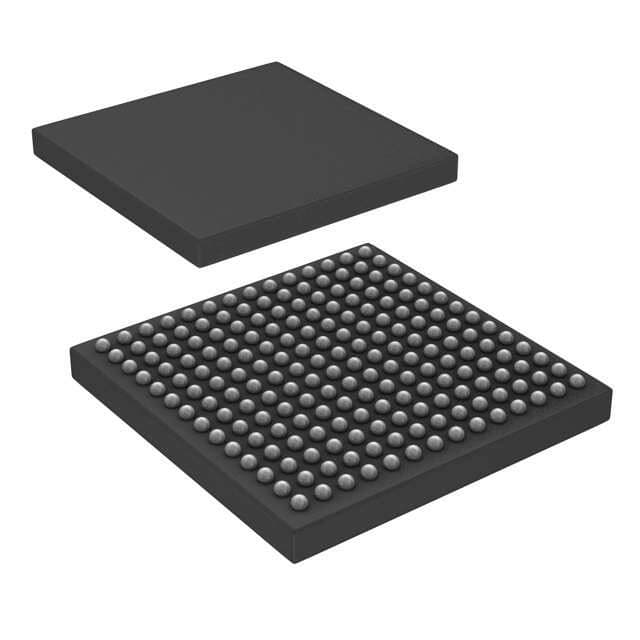

INFINEON XMC4700E196K2048AAXQMA1

Manufacturer No:

XMC4700E196K2048AAXQMA1

Manufacturer:

INFINEON

Package:

196-LFBGA

Description:

2MB 2M x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller XMC4000 Series 196 Pin 144MHz 1.3V 196-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XMC4700E196K2048AAXQMA1 information

INFINEON XMC4700E196K2048AAXQMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON XMC4700E196K2048AAXQMA1.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Surface Mount

Package / Case
196-LFBGA

Surface Mount
YES

Number of Pins
196

Operating Temperature
-40°C~125°C TA

Packaging
Tray

Series
XMC4000

Published
2015

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
196

ECCN Code
3A991.A.2

Max Power Dissipation
1.4W

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
1.3V

Terminal Pitch
0.8mm

Frequency
144MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Operating Supply Voltage
3.3V

Memory Size
2MB

Oscillator Type
External

Number of I/O
155

RAM Size
352K x 8

Voltage - Supply (Vcc/Vdd)
3.13V~3.63V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM® Cortex®-M4

Peripherals
DMA, I2S, LED, POR, Touch-Sense, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
2MB 2M x 8

Connectivity
CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SPI, UART/USART, USB OTG, USIC

Bit Size
32

Data Converter
A/D 32x12b; D/A 2x12b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
NO

Halogen Free
Halogen Free

DAC Channels
YES

Number of Timers/Counters
4

ROM (words)
2097152

Download datasheets and manufacturer documentation for INFINEON XMC4700E196K2048AAXQMA1.

Datasheets:

infineon-xmc4700e196k2048aaxqma1-datasheets-8290.pdf

infineon-xmc4700e196k2048aaxqma1-datasheets-8291.pdf

ConflictMineralStatement:

infineon-b43821a4225m000-conflictmineralstatement-7662.pdf

XMC4700E196K2048AAXQMA1 Overview

XMC4700E196K2048AAXQMA1 microcontroller features the highest performance and offers a broad selection of upgraded connectivity and inputs. XMC4700E196K2048AAXQMA1 datasheet is an excellent option for a variety of smaller and medium-sized tasks and full platform solutions. Infineon Technologies XMC4700E196K2048AAXQMA1 is suitable for EV charging, Solar inverters, as well as Switched mode power supplies.

Due to its space-saving qualities, it is available in the 196-LFBGA package.Surface Mount is used for mounting.It comes in a Tray package.It is equipped with a ARM? Cortex?-M4 core processor.Working at -40°C~125°C TA temperature is recommended.There is FLASH program memory in it.There are 155 I/Os on it, which makes it a very simple device.The position of the device is BOTTOM at terminal.This circuit consists of 196 terminations.There are a number of electrical components in the XMC4000 series, including this one.High efficiency is possible due to the 1.3V supply voltage.uPs/uCs/Peripheral IC for this gadget is MICROCONTROLLER, RISC.It is constructed with 196 pins.A device with a memory size of 2MB can store programs and data.A core architecture of ARM is used.At a frequency of 144MHz, it can achieve excellent efficiency.Designers can fully utilize the supply voltage of 3.3V's adaptability while employing it.4 timers/counters are in use.There are 153 programmable input/output ports on the chip.Using an oscillator type of External, it works.

XMC4700E196K2048AAXQMA1 Features

196-LFBGA package
Mounting type of Surface Mount

XMC4700E196K2048AAXQMA1 Applications

There are a lot of Infineon Technologies XMC4700E196K2048AAXQMA1 Microcontroller applications.

Ipad
Switches
Traditional industrial transformation
Communication-bluetooth, Wi-Fi, radio
Fax machines
Digital cameras
Oscilloscopes
Copiers
Automatic staplers
DVD\DV\MP3 players
