INFINEON XMC4500F144K1024ACXQMA1
Manufacturer No:
XMC4500F144K1024ACXQMA1
Manufacturer:
Package:

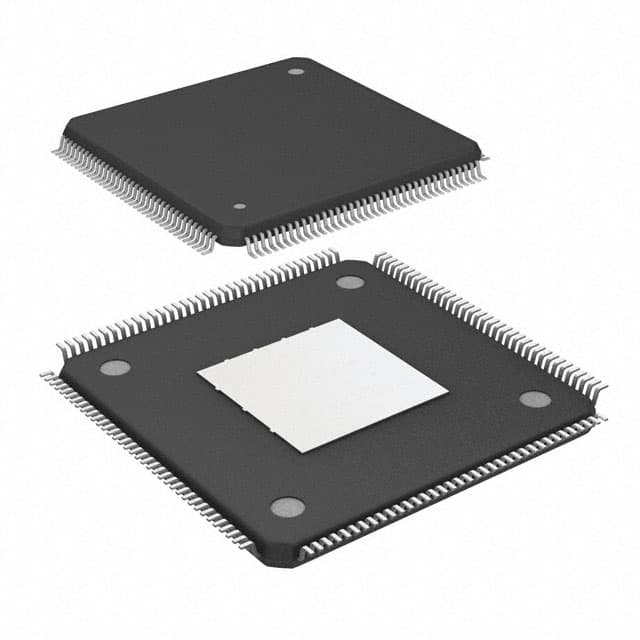

144-LQFP Exposed Pad
Description:
1MB 1M x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller XMC4000 Series 144 Pin 120MHz 3.3V 144-LQFP Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
XMC4500F144K1024ACXQMA1 information
INFINEON XMC4500F144K1024ACXQMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON XMC4500F144K1024ACXQMA1.
- Type
- Parameter
- Factory Lead Time
- 13 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 144-LQFP Exposed Pad
- Surface Mount
- YES
- Number of Pins
- 144
- Weight
- 1.290414g
- Data Converters
- A/D 32x12b; D/A 2x12b
- Number of I/Os
- 91
- Watchdog Timers
- Yes
- Operating Temperature
- -40°C~125°C TA
- Packaging
- Tray
- Series
- XMC4000
- Published
- 2013
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 144
- Terminal Finish
- Tin (Sn)
- Additional Feature
- ADC CONVERTOR CONSIDERED AS PER O DOCUMENT
- Max Power Dissipation
- 1W
- Terminal Position
- QUAD
- Terminal Form
- GULL WING
- Supply Voltage
- 3.3V
- Terminal Pitch
- 0.5mm
- Operating Supply Voltage
- 1.3V
- Supply Voltage-Max (Vsup)
- 3.63V
- Interface
- CAN, EBI/EMI, Ethernet, I2C, I2S, LIN, SPI, UART, USB
- Memory Size
- 1MB
- Oscillator Type
- Internal
- RAM Size
- 160K x 8
- Voltage - Supply (Vcc/Vdd)
- 3.13V~3.63V
- uPs/uCs/Peripheral ICs Type
- MICROCONTROLLER, RISC
- Core Processor
- ARM® Cortex®-M4
- Peripherals
- DMA, I2S, LED, POR, PWM, WDT
- Program Memory Type
- FLASH
- Core Size
- 32-Bit
- Program Memory Size
- 1MB 1M x 8
- Connectivity
- CANbus, EBI/EMI, Ethernet, I2C, LINbus, SPI, UART, USB
- Bit Size
- 32
- Has ADC
- YES
- DMA Channels
- YES
- Data Bus Width
- 32b
- PWM Channels
- YES
- Halogen Free
- Halogen Free
- Number of Timers/Counters
- 4
- Core Architecture
- ARM
- On Chip Program ROM Width
- 8
Download datasheets and manufacturer documentation for INFINEON XMC4500F144K1024ACXQMA1.
Other Related Documents:
ConflictMineralStatement:
XMC4500F144K1024ACXQMA1 Description
The ARM Cortex - M group processor core XMC4500F144K1024ACXQMA1 is a series of cores optimized for energy efficiency and deterministic operations. It is widely used in microcontroller (MCU) and can also be embedded in multi-core microprocessor (MPU).
XMC4500F144K1024ACXQMA1 Applications
It is widely used in microcontroller (MCU) and can also be embedded in multi-core microprocessor (MPU).
XMC4500F144K1024ACXQMA1 Features
for energy efficiency
deterministic operations
