INFINEON XMC4400F100K512BAXQMA1

Manufacturer No:

XMC4400F100K512BAXQMA1

Manufacturer:

INFINEON

Package:

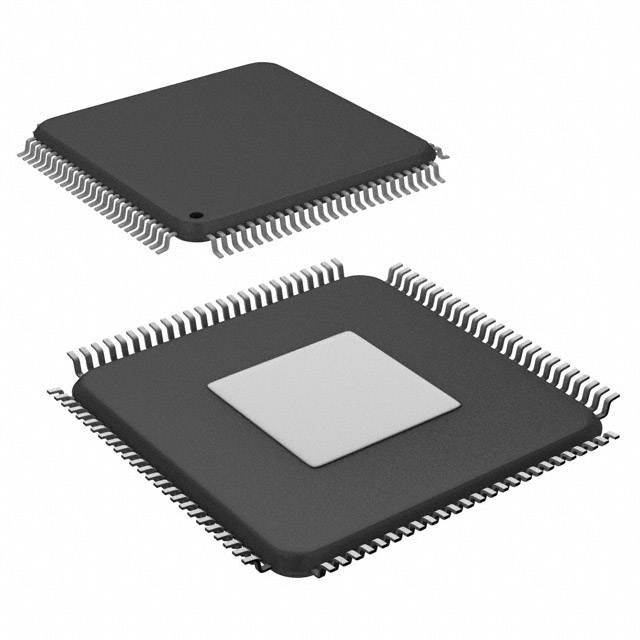

100-LQFP Exposed Pad

Description:

512KB 512K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller XMC4000 Series 100 Pin 120MHz 3.3V 100-LQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XMC4400F100K512BAXQMA1 information

INFINEON XMC4400F100K512BAXQMA1 technical specifications, attributes, parameters and parts with similar specifications to INFINEON XMC4400F100K512BAXQMA1.

Type
Parameter

Factory Lead Time
13 Weeks

Mounting Type
Surface Mount

Package / Case
100-LQFP Exposed Pad

Surface Mount
YES

Number of Pins
100

Operating Temperature
-40°C~125°C TA

Packaging
Tray

Series
XMC4000

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

ECCN Code
3A991.A.2

Max Power Dissipation
1W

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
120MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Supply Voltage-Max (Vsup)
3.63V

Interface
CAN, Ethernet, I2C, I2S, LIN, SPI, UART, USB

Memory Size
512kB

Oscillator Type
Internal

Number of I/O
55

RAM Size
80K x 8

Voltage - Supply (Vcc/Vdd)
3.13V~3.63V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM® Cortex®-M4

Peripherals
DMA, I2S, LED, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
512KB 512K x 8

Connectivity
CANbus, Ethernet, I2C, LINbus, SPI, UART, USB

Bit Size
32

Data Converter
A/D 24x12b; D/A 2x12b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
YES

DAC Channels
YES

Number of Timers/Counters
4

Core Architecture
ARM

Download datasheets and manufacturer documentation for INFINEON XMC4400F100K512BAXQMA1.

Datasheets:

infineontechnologies-xmc4400f100f512baxqma1-datasheets-9661.pdf

ConflictMineralStatement:

infineon-b43821a4225m000-conflictmineralstatement-7662.pdf

XMC4400F100K512BAXQMA1 Descritpion

The XMC4400F100K512BAXQMA1 is a 32bit Cortex M4 Microcontroller, XMC4000, 120MHz, 512 kB Flash, 100-Pin LQFP. The Industrial XMC4000 family of microcontrollers includes the XMC440x, which is based on the ARM Cortex-M4F CPU core. It is appropriate for applications involving power conversion, sensing/control, and industrial communication and control.

XMC4400F100K512BAXQMA1 Features

120MHz Cortex-M4F core processor with up to 512KB Flash memory, 16KB Boot ROM, 80KB SRAM
Floating-Point Maths Unit
Memory Protection Unit
Event Request Unit (ERU) for programmable processing of external and internal service requests
Flexible CRC Engine (FCE) for multiple bit-error detection
Comprehensive set of Communication, Analogue Front End and Industrial Control modules
RMII 10/100 Ethernet interface
Supported by Infineon's integrated development platform DAVE? 4
