Manufacturer No:

XG4A-1074

Manufacturer:

OMRON

Package:

Description:

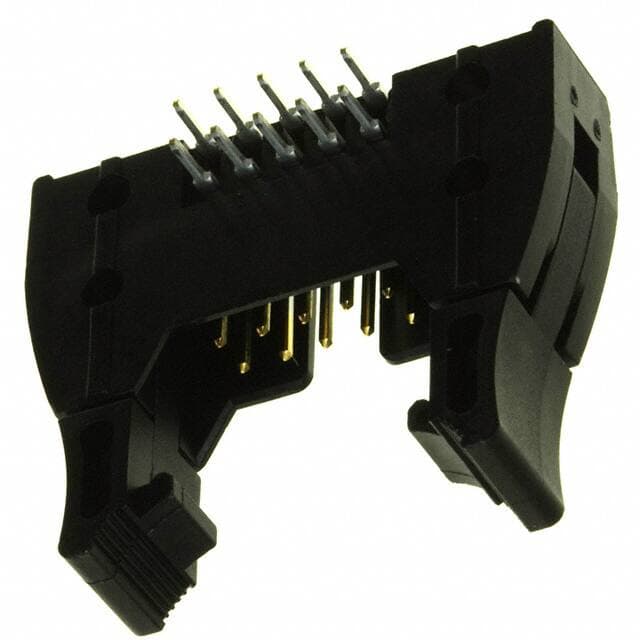

XG4 Series 2-Row Header Solder Brass, Nickel Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT), Glass Filled 10-Position Board to Cable/Wire 0.335 8.51mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XG4A-1074 information

OMRON XG4A-1074 technical specifications, attributes, parameters and parts with similar specifications to OMRON XG4A-1074.

  • Type
  • Parameter
  • Factory Lead Time
  • 15 Weeks
  • Contact Material
  • Brass, Nickel
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole, Right Angle
  • Contact Shape
  • Square
  • Insulation Material
  • Polybutylene Terephthalate (PBT), Glass Filled
  • Housing Material
  • PBT
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • XG4
  • Published
  • 2002
  • JESD-609 Code
  • e3
  • Feature
  • Keying Slot, Mounting Flange
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 10
  • Number of Rows
  • 2
  • HTS Code
  • 8536.69.40.40
  • Fastening Type
  • Latch Lock/Eject Hooks, Long
  • Contact Finish - Mating
  • Gold
  • Contact Type
  • Male Pin
  • Insulation Height
  • 0.335 8.51mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Reach Compliance Code
  • unknown
  • Current Rating
  • 3A
  • Pitch - Mating
  • 0.100 2.54mm
  • Insulation Color
  • Black
  • Row Spacing - Mating
  • 0.100 (2.54mm)
  • Contact Length - Post
  • 0.126 3.20mm
  • Shrouding
  • Shrouded - 4 Wall
  • Contact Finish - Post
  • Tin
  • Contact Length - Mating
  • 0.240 6.10mm
  • Contact Gender
  • Male
  • Contact Resistance
  • 20mOhm
  • Insulation Resistance
  • 1GOhm
  • Max Voltage Rating (AC)
  • 300V
  • Max Current Rating
  • 3A
  • Contact Finish Thickness - Mating
  • 5.90?in 0.150?m
  • Contact Finish Thickness - Post
  • 78.7?in 2.00?m
  • Material Flammability Rating
  • UL94 V-0
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for OMRON XG4A-1074.

Datasheets:

Other Related Documents:

PCN Design/Specification:

PCN Assembly/Origin:

XG4A-1074 Overview


This product is packaged in a Header carton.Through Hole, Right Angle is the mounting type for the device.The product is packaged in a Bulk case.It's part of the XG4 Series.Many aspects of its Keying Slot, Mounting Flange feature increase its effectiveness.Mounting of the part is based on Through Hole.It runs at -55°C~105°C Operating Temperature.
