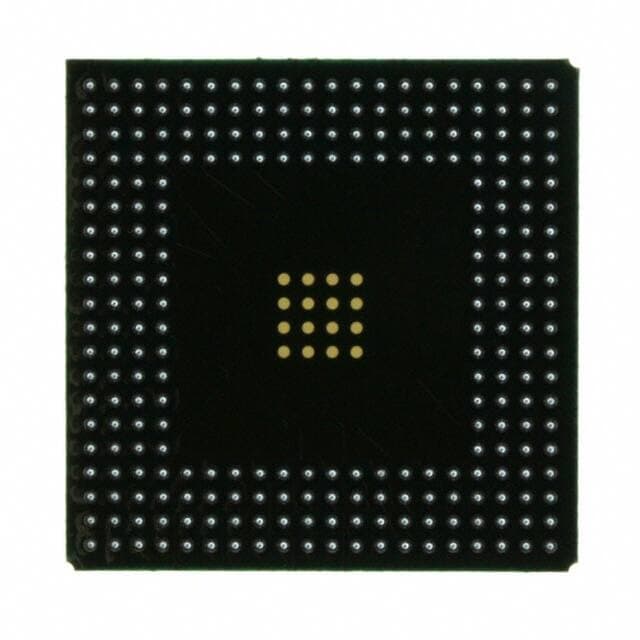

AMD XCV100-4BG256I

Manufacturer No:

XCV100-4BG256I

Manufacturer:

AMD

Package:

256-BBGA

Description:

2.55mm mm FPGAs Virtex® Series 256-BBGA 1.27mm mm 256

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XCV100-4BG256I information

AMD XCV100-4BG256I technical specifications, attributes, parameters and parts with similar specifications to AMD XCV100-4BG256I.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
256-BBGA

Number of Pins
256

Operating Temperature
-40°C~100°C TJ

Packaging
Tray

Series
Virtex®

Published
2000

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
256

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn63Pb37)

HTS Code
8542.39.00.01

Subcategory
Field Programmable Gate Arrays

Technology
CMOS

Voltage - Supply
2.375V~2.625V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
225

Supply Voltage
2.5V

Terminal Pitch
1.27mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
XCV100

Pin Count
256

Number of Outputs
180

Qualification Status
Not Qualified

Power Supplies
1.5/3.32.5V

Number of I/O
180

RAM Size
5kB

Clock Frequency
250MHz

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Number of Logic Elements/Cells
2700

Total RAM Bits
40960

Number of Gates
108904

Number of LABs/CLBs
600

Combinatorial Delay of a CLB-Max
0.8 ns

Number of CLBs
600

Length
27mm

Height Seated (Max)
2.55mm

Width
27mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for AMD XCV100-4BG256I.

Datasheets:

xilinxinc-xcv1004pq240c-datasheets-8488.pdf

xilinx-xcv1004bg256i-datasheets-2163.pdf

xilinx-xcv1004bg256i-datasheets-2164.pdf

PCN Obsolescence/ EOL:

xilinxinc-xcs053vq100c-pcnobsolescenceeol-8031.pdf

XCV100-4BG256I Overview

In the 256-BBGA package, you will find fpga chips. An FPGA of this type is made up of FIELD PROGRAMMABLE GATE ARRAY gates. The device has 180 I/O ports for more coherent data transfer. To form a fundamental building block, there are 2700 logic elements/cells. In order to operate fpga chips, a voltage supply of 2.5V volts is required. FPGA parts like this belong to the Field Programmable Gate Arrays family. Surface Mount-connectors can be used to attach this FPGA module to the development board. There is a 2.375V~2.625V-volt supply voltage required for the device to operate. The Virtex® Series is one of the types of FPGAs that belong to this type. As far as the operating temperature is concerned, it should be kept within -40°C~100°C TJ when operating. A total of 180 outputs are incorporated into this device. Unlike other FPGA models, this one is contained in Tray for the sake of space saving. 256 terminations are present in total. Fpga chips is important to note that this device has a RAM capacFpga chipsy of 40960 bFpga chipss. You can find related parts by using the part number XCV100, which is its base part number. It is crucial that the RAM si5kBe of this FPGA module reaches 5kB so that the program can run normally. In order to make it work, 256 pins have been designed. A total of 600 LABs/CLBs are included in this FPGA. In order for this FPGA to work properly in accordance with its specifications, it is necessary that it is mounted in Surface Mount. There is a 1.5/3.32.5V power supply that is required to operate it. There are 108904 gates in its basic building block. With a total of 256 pins, it is equipped with a high level of security. It usually uses a 250MHz crystal. For its architecture, 600 CLB modules are used.

XCV100-4BG256I Features

180 I/Os
Up to 40960 RAM bits
256 LABs/CLBs

XCV100-4BG256I Applications

There are a lot of Xilinx Inc.
XCV100-4BG256I FPGAs applications.

Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
