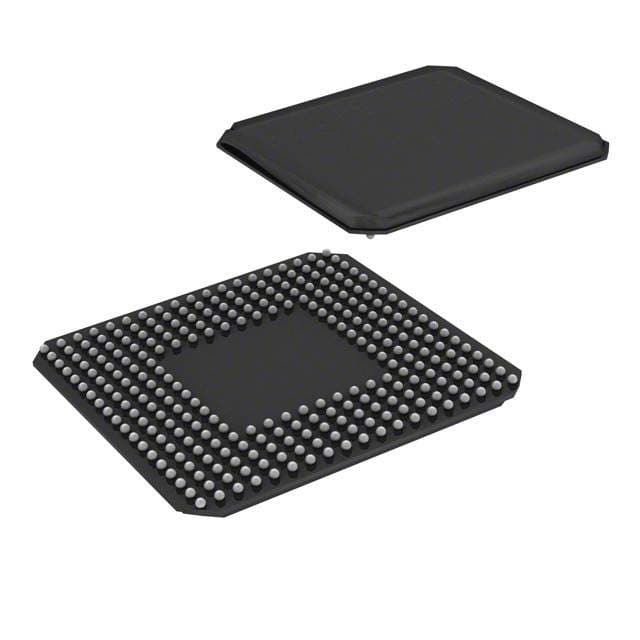

AMD XCR3256XL-7CS280C

Manufacturer No:

XCR3256XL-7CS280C

Manufacturer:

AMD

Package:

TFBGA

Description:

0.8mm PMIC 280 Pin 3.3V TFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XCR3256XL-7CS280C information

AMD XCR3256XL-7CS280C technical specifications, attributes, parameters and parts with similar specifications to AMD XCR3256XL-7CS280C.

Type
Parameter

Factory Lead Time
6 Weeks

Mount
Surface Mount

Package / Case
TFBGA

Number of Pins
280

Packaging
Bulk

Published
2003

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
280

ECCN Code
EAR99

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
YES

HTS Code
8542.39.00.01

Subcategory
Programmable Logic Devices

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
240

Supply Voltage
3.3V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Qualification Status
Not Qualified

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.6V

Temperature Grade
COMMERCIAL

Number of I/O
164

Memory Type
EEPROM

Propagation Delay
7.5 ns

Frequency (Max)
154MHz

Programmable Logic Type
EE PLD

Number of Gates
6000

Number of Logic Blocks (LABs)
16

Speed Grade
7

Output Function
MACROCELL

Number of Macro Cells
256

JTAG BST
YES

In-System Programmable
YES

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for AMD XCR3256XL-7CS280C.

Datasheets:

xilinx-xcr3256xl7cs280c-datasheets-6506.pdf

XCR3256XL-7CS280C Overview

The mobile phone network has 256 macro cells, which are cells that provide radio coverage from high-power cell sites (towers, antennas, or masts).In the TFBGA package, you will find it.In this case, there are 164 I/Os programmed.280 terminations are programmed into the device.This electrical component has a terminal position of BOTTOM.An electrical supply voltage of 3.3V is used to power it.The part belongs to Programmable Logic Devices family.Bulk should be used to package the chip.A chip with 280 pins is programmed.This device also displays YES.A digital circuit can be constructed using 6000 gates.In order to achieve high efficiency, the supply voltage should be maintained at 3.3V.In this case, EEPROM will be used to store the data.Surface Mount is the mounting point of this electronic part.The device has a pinout of 280.There is a maximum supply voltage (Vsup) of 3.6V.Operating temperatures should be higher than 0°C.Ideally, the operating temperature should be below 70°C.There are 16 logic blocks (LABs) that make up its basic building block.It should be below 154MHz at the maximal frequency.Programmable logic types are divided into EE PLD.

XCR3256XL-7CS280C Features

TFBGA package
164 I/Os
280 pin count
280 pins
16 logic blocks (LABs)

XCR3256XL-7CS280C Applications

There are a lot of Xilinx
XCR3256XL-7CS280C CPLDs applications.

I/O expansion
Discrete logic functions
Bootloaders for FPGAs
Address decoders
Custom state machines
Digital systems
Portable digital devices
Handheld digital devices
Battery operated portable devices
Complex programmable logic devices
