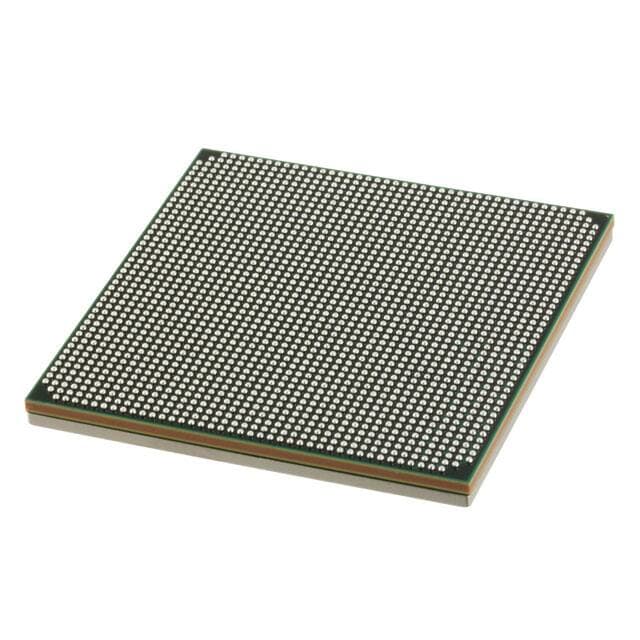

AMD XC7VX1140T-1FLG1926I
AMD XC7VX1140T-1FLG1926I

AMD XC7VX1140T-1FLG1926I

Manufacturer No:

XC7VX1140T-1FLG1926I

Manufacturer:

AMD

Package:

1924-BBGA, FCBGA

Description:

1V V 3.75mm mm FPGAs Virtex®-7 XT Series 1924-BBGA, FCBGA 1mm mm 1926

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XC7VX1140T-1FLG1926I information

AMD XC7VX1140T-1FLG1926I technical specifications, attributes, parameters and parts with similar specifications to AMD XC7VX1140T-1FLG1926I.

  • Type
  • Parameter
  • Factory Lead Time
  • 10 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 1924-BBGA, FCBGA
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~100°C TJ
  • Packaging
  • Tray
  • Series
  • Virtex®-7 XT
  • Published
  • 2010
  • JESD-609 Code
  • e1
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 4 (72 Hours)
  • Number of Terminations
  • 1926
  • ECCN Code
  • 3A001.A.7.B
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • HTS Code
  • 8542.39.00.01
  • Subcategory
  • Field Programmable Gate Arrays
  • Technology
  • CMOS
  • Voltage - Supply
  • 0.97V~1.03V
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Supply Voltage
  • 1V
  • Terminal Pitch
  • 1mm
  • Base Part Number
  • XC7VX1140T
  • JESD-30 Code
  • S-PBGA-B1926
  • Number of Outputs
  • 720
  • Operating Supply Voltage
  • 1V
  • Power Supplies
  • 11.8V
  • Number of I/O
  • 720
  • RAM Size
  • 8.3MB
  • Clock Frequency
  • 1818MHz
  • Propagation Delay
  • 120 ps
  • Number of Inputs
  • 720
  • Programmable Logic Type
  • FIELD PROGRAMMABLE GATE ARRAY
  • Number of Logic Elements/Cells
  • 1139200
  • Total RAM Bits
  • 69304320
  • Number of LABs/CLBs
  • 89000
  • Speed Grade
  • -1
  • Number of Registers
  • 1.424e+06
  • Combinatorial Delay of a CLB-Max
  • 0.74 ns
  • Length
  • 45mm
  • Height Seated (Max)
  • 3.75mm
  • Width
  • 45mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for AMD XC7VX1140T-1FLG1926I.

Datasheets:

PCN Design/Specification:

PCN Assembly/Origin:

XC7VX1140T-1FLG1926I Overview


In the package 1924-BBGA, FCBGA, this product is provided. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. A total of 720 I/Os are programmed to ensure a more coherent data transfer. The basic building blocks of logic contain 1139200 logic elements/cells. Supply voltage is 1V volts. There is a Field Programmable Gate Arrays family component in this FPGA part. By attaching the Surface Mount connector, you can use this FPGA module with your development board. With a supply voltage of 0.97V~1.03V, this device operates with ease. This is a type of FPGA that is part of the Virtex®-7 XT series of FPGAs. Fpga chips is necessary to keep the operating temperature wFpga chipshin -40°C~100°C TJ when the device is operating. In this device, 720 outputs are incorporated in order to provide you with maximum flexibility. As a result of space limitations, this FPGA model has been included in Tray. In total, the terminations of this piece are 1926. Fpga electronics is worth mentioning that this device provides 69304320 bfpga electronics s of RAM. XC7VX1140T is the base part number that can be used to identify related parts. The RAM si8.3MBe of this FPGA module reaches 8.3MB so as to guarantee the normal operation of the program during operation. The FPGA is built as an array of 89000 latches or CLBs. In operation with 1V, designers can take advantage of its flexibility to the fullest extent. This is a battery operated device that operates on 11.8V. I am going to present you with a device that is equipped with 1926 pins. Fpga semiconductor typically uses a crystal oscillating at 1818MHz. The structure of the registers used to store and transfer data consists of 1.424e+06 registers.

XC7VX1140T-1FLG1926I Features


720 I/Os
Up to 69304320 RAM bits
1.424e+06 registers


XC7VX1140T-1FLG1926I Applications


There are a lot of Xilinx Inc.
XC7VX1140T-1FLG1926I FPGAs applications.


  • Voice recognition
  • Cryptography
  • Filtering and communication encoding
  • Aerospace and Defense
  • Medical Electronics
  • Audio
  • Automotive
  • Consumer Electronics
  • Distributed Monetary Systems
  • Data Center
