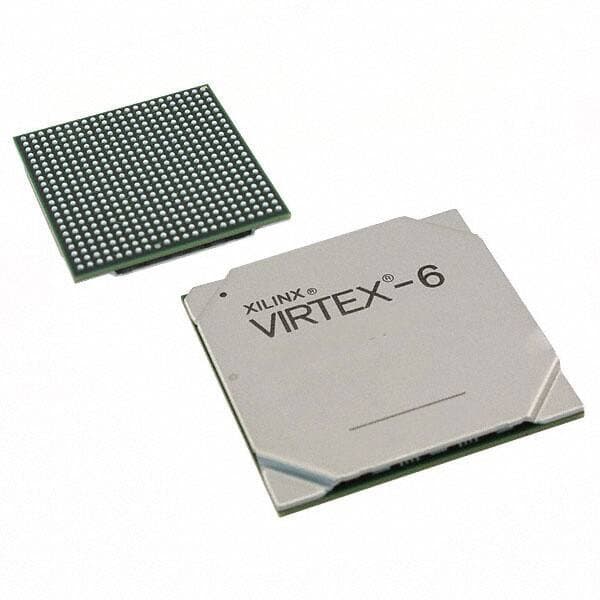

AMD XC6VLX195T-2FFG784I
Manufacturer No:
XC6VLX195T-2FFG784I
Manufacturer:
Package:
784-BBGA, FCBGA
Description:
1V V 3.1mm mm FPGAs Virtex®-6 LXT Series 784-BBGA, FCBGA 1mm mm 784
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
XC6VLX195T-2FFG784I information
AMD XC6VLX195T-2FFG784I technical specifications, attributes, parameters and parts with similar specifications to AMD XC6VLX195T-2FFG784I.
- Type
- Parameter
- Factory Lead Time
- 10 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 784-BBGA, FCBGA
- Number of Pins
- 784
- Number of I/Os
- 400
- Operating Temperature
- -40°C~100°C TJ
- Packaging
- Tray
- Series
- Virtex®-6 LXT
- Published
- 2002
- JESD-609 Code
- e1
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 4 (72 Hours)
- Number of Terminations
- 784
- ECCN Code
- 3A991.D
- Terminal Finish
- Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
- Voltage - Supply
- 0.95V~1.05V
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 245
- Supply Voltage
- 1V
- Terminal Pitch
- 1mm
- Time@Peak Reflow Temperature-Max (s)
- 30
- Pin Count
- 784
- Number of Outputs
- 400
- Qualification Status
- Not Qualified
- Operating Supply Voltage
- 1V
- RAM Size
- 1.5MB
- Programmable Logic Type
- FIELD PROGRAMMABLE GATE ARRAY
- Number of Logic Elements/Cells
- 199680
- Total RAM Bits
- 12681216
- Number of LABs/CLBs
- 15600
- Speed Grade
- 2
- Height Seated (Max)
- 3.1mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for AMD XC6VLX195T-2FFG784I.
Datasheets:
Environmental Information:
PCN Design/Specification:
PCN Assembly/Origin:
Product Description:
The XC6VLX195T-2FFG784I is a high-performance, field-programmable gate array (FPGA) from Xilinx Inc. This device is part of the Virtex-6 LXT series, designed for a wide range of applications requiring high-speed and high-capacity logic processing. With its advanced architecture and high-speed I/Os, the XC6VLX195T-2FFG784I is suitable for demanding applications such as high-speed data processing, signal processing, and communications.
Features:
- High-speed I/Os with a maximum frequency of 1.5 GHz
- 1.5 MB of RAM and 199,680 logic elements/cells
- 15600 LABs/CLBs and 400 I/Os
- Operating temperature range of -40°C to 100°C TJ
- Supply voltage range of 0.95V to 1.05V
- RoHS3 compliant and Pb-free
- Surface-mount packaging with a 784-ball BGA package
Applications:
- High-speed data processing and signal processing applications
- Communications systems, such as wireless and wired networks
- Industrial control systems, including motor control and robotics
- Aerospace and defense applications, including radar and satellite communications
Alternative Parts:
- XC6VLX155T-2FFG484I: A similar FPGA with a lower pin count and smaller package size
- XC6VLX450T-2FFG1156I: A higher-performance FPGA with a larger package size and higher pin count
Embedded Modules:
- The XC6VLX195T-2FFG784I is used in various embedded modules, including:
- Xilinx's Zynq-7000 SoC (System-on-Chip) devices
- Xilinx's Kintex-7 FPGA devices
- Xilinx's Artix-7 FPGA devices
Frequently Asked Questions (FAQs):
Q: What is the maximum frequency of the XC6VLX195T-2FFG784I? A: The maximum frequency is 1.5 GHz.
Q: What is the operating temperature range of the XC6VLX195T-2FFG784I? A: The operating temperature range is -40°C to 100°C TJ.
Q: Is the XC6VLX195T-2FFG784I RoHS3 compliant? A: Yes, the XC6VLX195T-2FFG784I is RoHS3 compliant.
Q: What is the supply voltage range of the XC6VLX195T-2FFG784I? A: The supply voltage range is 0.95V to 1.05V.
Q: What is the packaging type of the XC6VLX195T-2FFG784I? A: The packaging type is a 784-ball BGA package.
