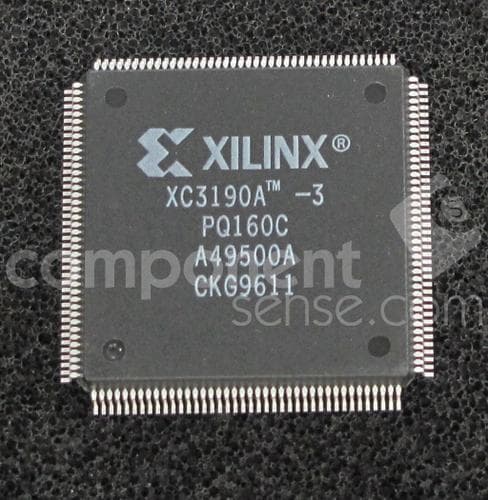

AMD XC3190A-3PQ160C

Manufacturer No:

XC3190A-3PQ160C

Manufacturer:

AMD

Package:

160-BQFP

Description:

4.1mm mm FPGAs XC3000A/L Series 160-BQFP 0.65mm mm 160

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XC3190A-3PQ160C information

AMD XC3190A-3PQ160C technical specifications, attributes, parameters and parts with similar specifications to AMD XC3190A-3PQ160C.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
160-BQFP

Surface Mount
YES

Number of I/Os
138

Operating Temperature
0°C~85°C TJ

Packaging
Tray

Series
XC3000A/L

Published
1999

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
160

Terminal Finish
Tin/Lead (Sn85Pb15)

HTS Code
8542.39.00.01

Voltage - Supply
4.25V~5.25V

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Supply Voltage
5V

Terminal Pitch
0.65mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
XC3190

JESD-30 Code
S-PQFP-G160

Number of Outputs
138

Qualification Status
Not Qualified

Power Supplies
5V

Clock Frequency
270MHz

Number of Inputs
138

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Total RAM Bits
64160

Number of Gates
6000

Number of LABs/CLBs
320

Combinatorial Delay of a CLB-Max
2.7 ns

Number of CLBs
320

Number of Logic Cells
320

Number of Equivalent Gates
5000

Length
28mm

Height Seated (Max)
4.1mm

Width
28mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for AMD XC3190A-3PQ160C.

Datasheets:

xilinxinc-xc3130a3pq100c-datasheets-2389.pdf

XC3190A-3PQ160C Overview

A 160-BQFP package is provided with this component. FPGAs of this type consist of FIELD PROGRAMMABLE GATE ARRAY components. An electrical supply voltage of 5V powers it. An FPGA module can be attached to a development board with a Surface Mount-pin. Powered by a 4.25V~5.25V supply voltage, fpga chips is able to operate at high speeds. The FPGA belongs to the XC3000A/L series of FPGAs, and it is one type of FPGA. During the operation of the system, the operating temperature should remain within the range of 0°C~85°C TJ. In order to make this device as versatile as possible, there are 138 different outputs included. It is for space saving reasons that this FPGA model is contained in Tray. As a whole, it has 160 terminations. The RAM bits that are offered by this fpga chips are 64160. Related parts can be found by using its base part number XC3190. Fpga electronics contains 320 LABs/CLBs in an array. Powered by a 5V power supply, it can be operated by almost anyone. Among its basic building blocks, there are 6000 gates that are included in it. In addition to this, it has 160 pins. Normally, fpga semiconductor uses an oscillator, which oscillates at 270MHz, to create the signal. In its architecture, there are 320 CLB modules. In order for the building block to work, fpga semiconductor consists of 320 logic cells. In order to implement this design, 5000 equivalent gates are used in the FPGA.

XC3190A-3PQ160C Features

Up to 64160 RAM bits

XC3190A-3PQ160C Applications

There are a lot of Xilinx Inc.
XC3190A-3PQ160C FPGAs applications.

Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
Filtering and communication encoding
Aerospace and Defense
Medical Electronics
Audio
Automotive
