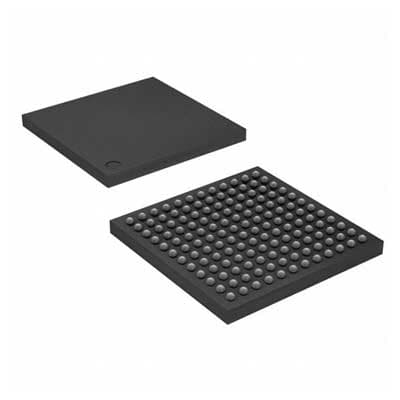

AMD XC2S15-5CS144C

Manufacturer No:

XC2S15-5CS144C

Manufacturer:

AMD

Package:

144-TFBGA, CSPBGA

Description:

2.5V V 1.2mm mm FPGAs Spartan®-II Series 144-TFBGA, CSPBGA 0.8mm mm 144

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

XC2S15-5CS144C information

AMD XC2S15-5CS144C technical specifications, attributes, parameters and parts with similar specifications to AMD XC2S15-5CS144C.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
144-TFBGA, CSPBGA

Number of Pins
144

Operating Temperature
0°C~85°C TJ

Packaging
Tray

Series
Spartan®-II

Published
2004

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
144

Terminal Finish
Tin/Lead (Sn63Pb37)

Subcategory
Field Programmable Gate Arrays

Technology
CMOS

Voltage - Supply
2.375V~2.625V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
240

Supply Voltage
2.5V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
XC2S15

Pin Count
144

Operating Supply Voltage
2.5V

Number of I/O
86

RAM Size
2kB

Clock Frequency
263MHz

Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY

Number of Logic Elements/Cells
432

Total RAM Bits
16384

Number of Gates
15000

Number of LABs/CLBs
96

Speed Grade
5

Combinatorial Delay of a CLB-Max
0.7 ns

Number of CLBs
96

Number of Logic Cells
432

Length
12mm

Height Seated (Max)
1.2mm

Width
12mm

Radiation Hardening
No

RoHS Status
Non-RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for AMD XC2S15-5CS144C.

XC2S15-5CS144C Overview

As part of the 144-TFBGA, CSPBGA package, it is included. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. A total of 86 I/Os allow data to be transferred in a more coherent manner. A fundamental building block consists of 432 logic elements/cells. It is powered from a supply voltage of 2.5V. The Field Programmable Gate Arrays family of FPGA parts includes this part. With a Surface Mount connector, this FPGA module can be attached to the development board. In order to operate it, it requires a voltage supply of 2.375V~2.625V . It is a type of FPGA that belongs to the Spartan®-II series of FPGAs. Fpga chips is important to maintain the operating temperature wFpga chipshin the range of 0°C~85°C TJ when operating the machine. In this device, there are 92 outputs that can be used. In order to save space, this FPGA model has been contained in Tray. There are a total of 144 terminations. This device has 16384 RAM bits, which is the number of RAM bits that this device offers. Its base part number XC2S15 can be used to find parts that are related to it. Fpga electronics is important that this FPGA module has a RAM si2kBe of 2kB in order to ensure that the program will run normally. There are 144 pins on this device. The FPGA consists of 96 LABs/CLBs. According to its specifications, this FPGA will be able to work fantastically as long as it is mounted in Surface Mount. Its flexibility can be fully utilized when operating with a 2.5V supply voltage. The basic building block of this system consists of 15000 gates. There are a total of 144 pins on this device. Typically, it uses a crystal oscillating at 263MHz in order to operate. Its architecture is based on 96 CLBs. As part of the building blocks, it consists of 432 logic cells.

XC2S15-5CS144C Features

86 I/Os
Up to 16384 RAM bits
144 LABs/CLBs

XC2S15-5CS144C Applications

There are a lot of Xilinx Inc.
XC2S15-5CS144C FPGAs applications.

Bioinformatics
Device controllers
Software-defined radio
Random logic
ASIC prototyping
Medical imaging
Computer hardware emulation
Integrating multiple SPLDs
Voice recognition
Cryptography
